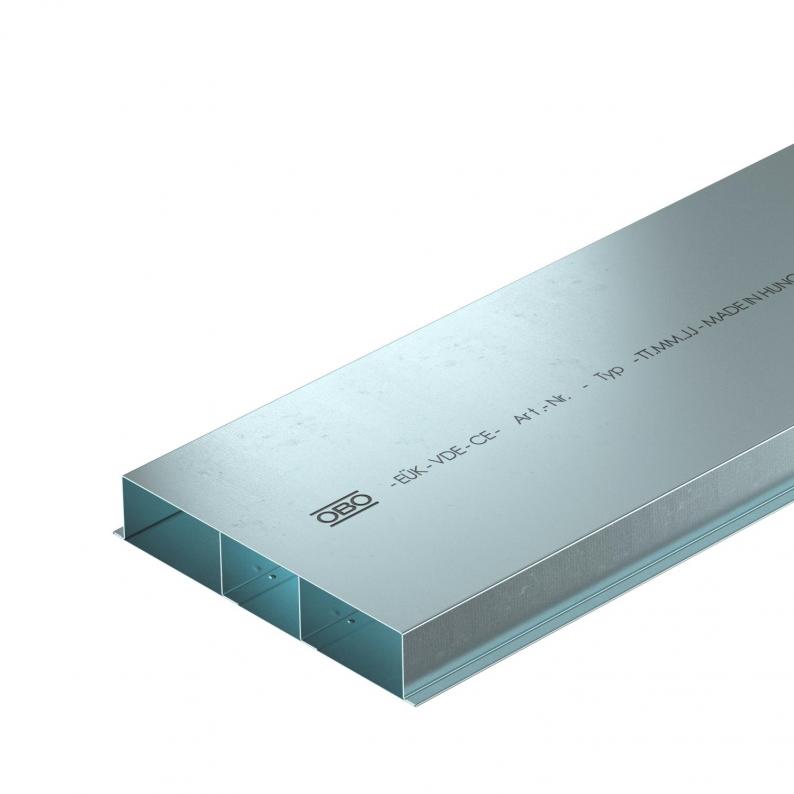

Underfloor installation duct, 3-compartment , Kanalhöhe 48 mm
Type S3 25048 | Item no. 7400332 | EAN 4012195089377
Item no. / Type
7400332 / S3 25048
This item is a discontinued product!
Smallest selling unit: 2 m
2m
Description
Underfloor installation duct for laying cables under the floor.
Technical data
Dimensions
| Length | 2000 mm |
|---|---|
| Width | 250 mm |
| Height | 48 mm |

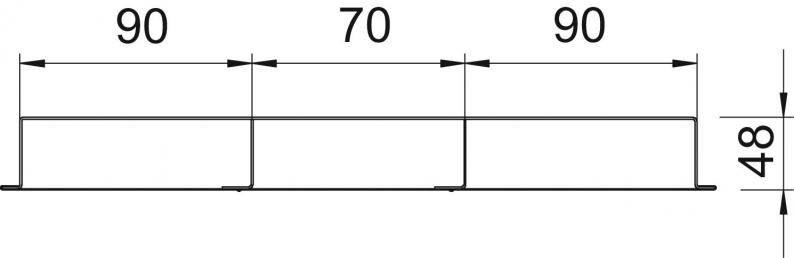

| Dimension b | 70 mm |
| Dimension a | 90 mm |
| Dimension h | 48 mm |
Technical data
| Usable cross-section | 11270 mm² |
|---|---|
| Number of compartments | 3 St. |
| Number of fixed partitions | 2 |
| Cross-section, draw a | 4048 mm² |
| Cross-section, draw b | 3174 mm² |
| Decouplable | no |
| Floor plate | yes |
| Application area | Screed-covered |
| Removable cover | no |
| Duct height, min. | 48 mm |
| Dimension | 2000x250x48 |
| Surface | Strip galvanized |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 11,8742 kg CO₂e / 1 Meter |
