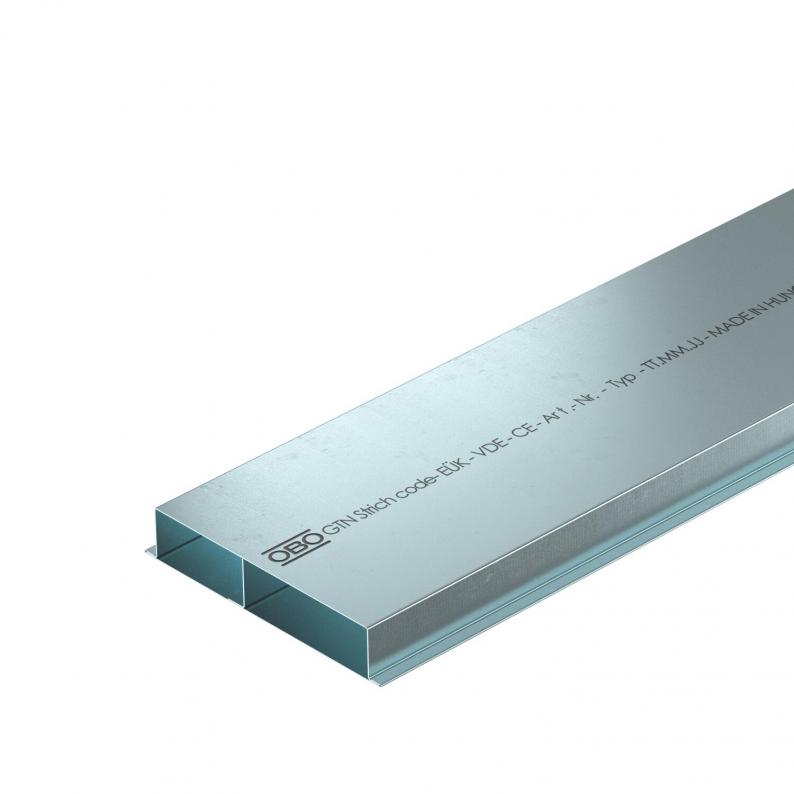

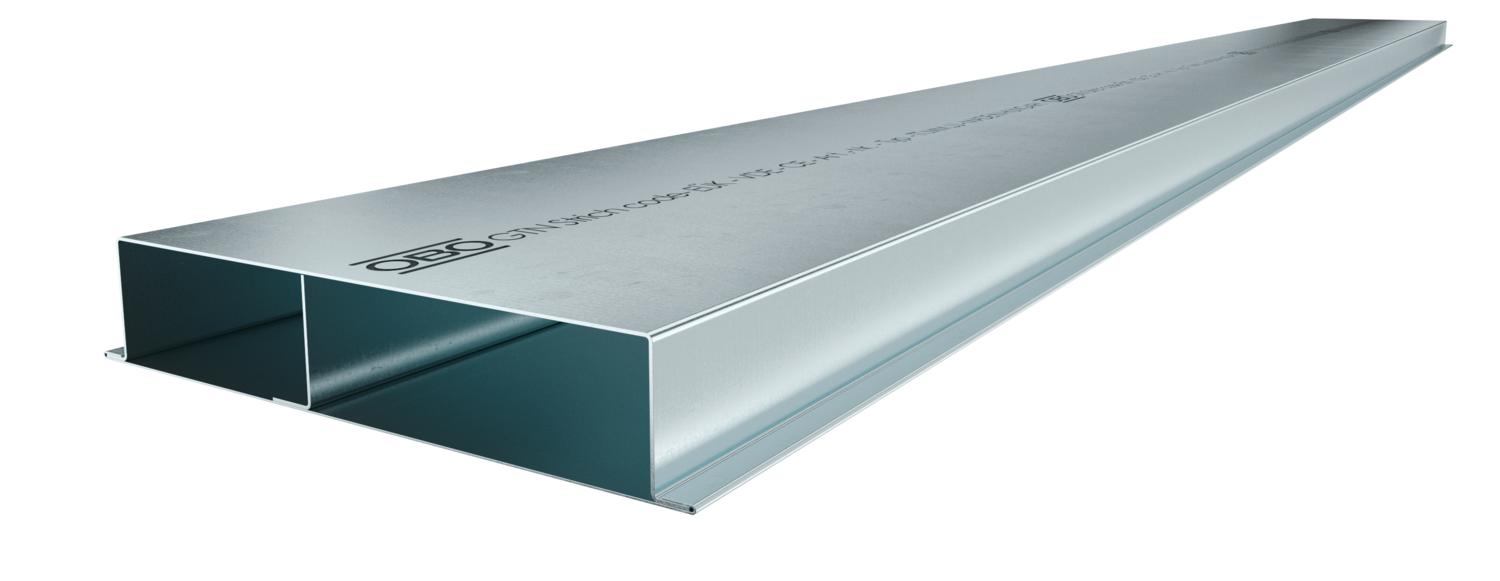

Underfloor installation duct, 2-compartment, trunking height 38 mm
Type S2 19038 | Item no. 7400304 | EAN 4012195089261
Item no. / Type
Length
Width
Number of compartments
This item is a discontinued product!
Smallest selling unit: 2 m
2m
Description
Underfloor installation duct for laying cables under the floor.
Technical data

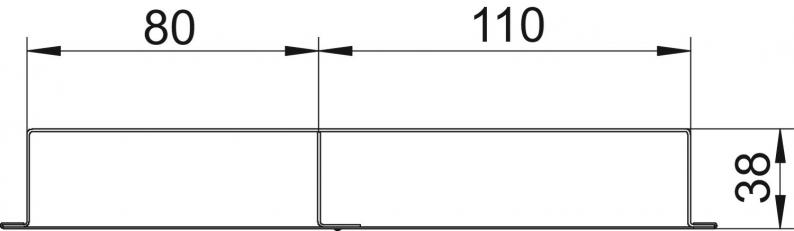

Dimensions
| Length | 2000 mm |
|---|---|
| Width | 190 mm |
| Height | 38 mm |
| Dimension b | 110 mm |
| Dimension a | 80 mm |
| Dimension h | 38 mm |
Technical data
| Usable cross-section | 6696 cm² |
|---|---|
| Number of compartments | 2 St. |
| Number of fixed partitions | 1 |
| Cross-section, draw a | 2808 mm² |
| Cross-section, draw b | 3888 mm² |
| Decouplable | no |
| Floor plate | yes |
| Application area | Screed-covered |
| Removable cover | no |
| Duct height, min. | 38 mm |
| Dimension | 2000x190x38 |
| Surface | Strip galvanized |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 8,1422 kg CO₂e / 1 Meter |
