Underfloor box UGD350-3 for GESR9/55
Type UGD55 350-3R9R
|Item no. 7410064
|EAN 4012195678779
Item no. / Type
Screed height, min.
Screed height, max.
Cover version
Installation opening for flush-mount unit
Nominal size for device installation units
Nominal size
Smallest selling unit: 1 piece
1piece
piece

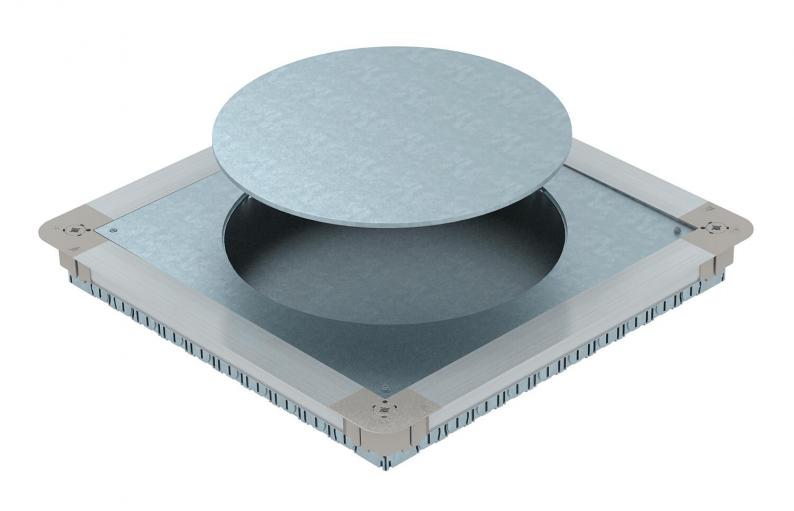

Description
Underfloor accessory box with mounting lid and lid blanking plate with sheet steel side walls. For the installation of a square GES9 55 service outlet in screed heights of 55 mm or more. Height can be infinitely adjusted to the nominal screed height and the screed can be worked flush to the screed scraping edge. With 10 x M20, 3 x M25, 7 x M32 pipe insertion openings on each side. Usable pipe size at a system height of 55 mm: M20.
Technical data

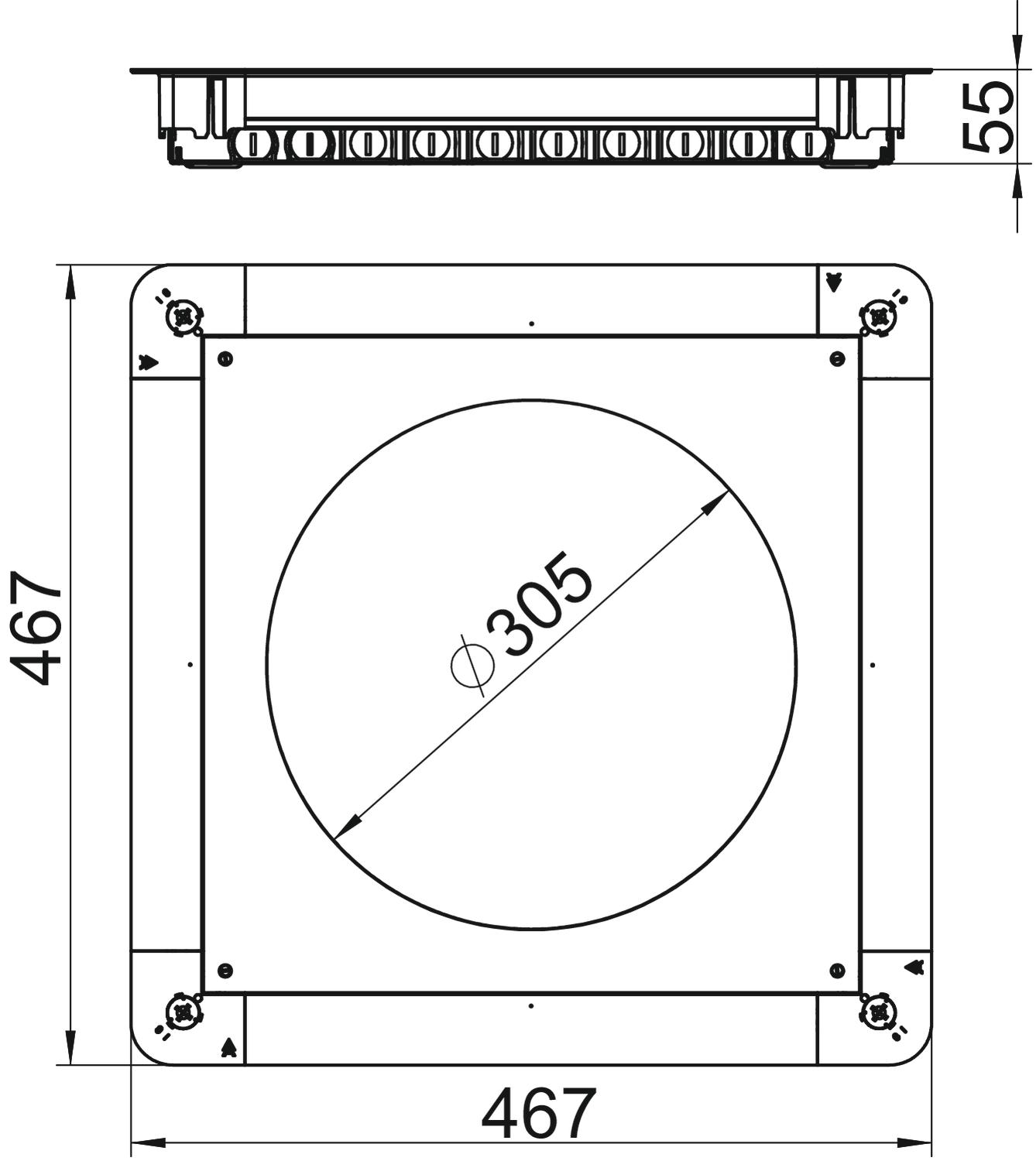

Dimensions
| Length | 467 mm |
|---|---|
| Width | 467 mm |
| Height | 55 mm |
| Dimension A | 467 mm |
| Dimension B | 467 mm |
| Dimension h | 55 mm |
| Dimension d Ø | 305 mm |
Materials and Packaging
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
Technical data
| Screed height, min. | 55 mm |
|---|---|
| Screed height, max. | 80 mm |
| Cover version | Round |
| Height-adjustment range, min. | 55 mm |
| Height-adjustment range, max. | 80 mm |
| Suitable for screed-covered underfloor ducts | no |
| Suitable for screed-flush closed underfloor ducts | no |
| Trunking width, min. | 190 mm |
| Trunking width, max. | 350 mm |
| Installation opening for on-floor tank | no |
| Seal installation option | no |
| Decouplable | no |
| Floor plate | yes |
| Suitable for underfloor ducts | no |
| Floor care | Dry |
| Lowerable to be flush-floor | yes |
| Installation opening for flush-mount unit | Round |
| Expansion option | For installation of accessories |
| For pipe connection | yes |
| Nominal size for device installation units | R9 |
| Nominal size | 350 mm |
| Dimension | 467x467x55 |
| Surface | Strip galvanized |
| Material | Steel |
