Underfloor box UDSR9 for installation pipe and metal duct
Type UDSSD 25038 R9
|Item no. 7400359
|EAN 4012195729891
Item no. / Type
7400359 / UDSSD 25038 R9
Smallest selling unit: 1 piece
1piece
piece
Description

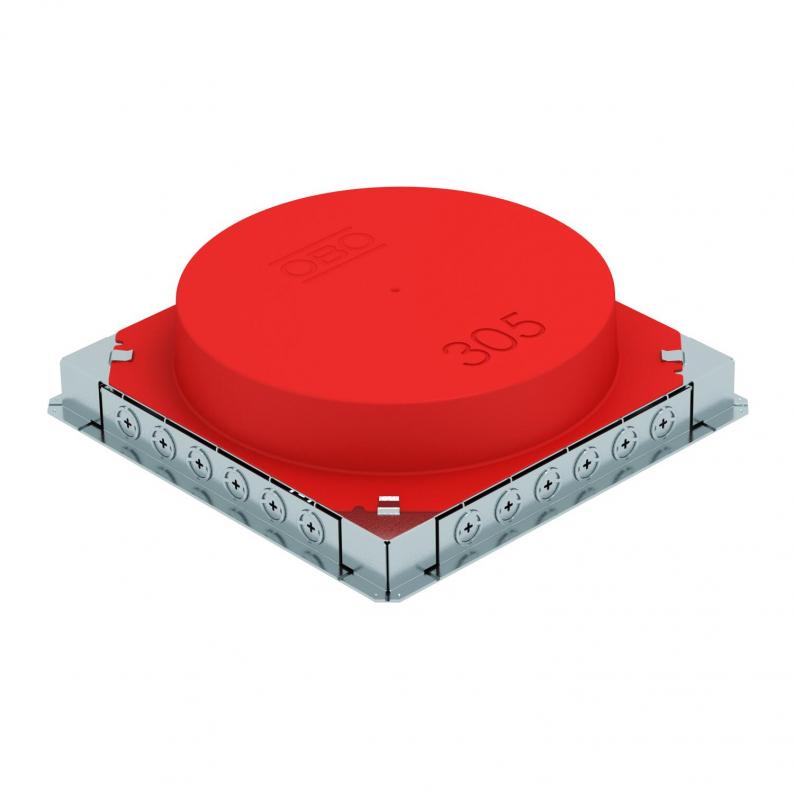

Underfloor outlet box with fixed, unchangeable installation opening of Ø 305 mm for an installation unit of nominal size R9. The mounting opening is created using the screed protection cover contained in the scope of supply. The underfloor box possesses installation openings for a 2 or 3-compartment sheet steel underfloor duct of nominal size 25038 as well as six M20 or M25 installation pipes on all four sides. The box is principally suited for use in floor structures in cement screed with a structure height of up to 95 mm.
Technical data

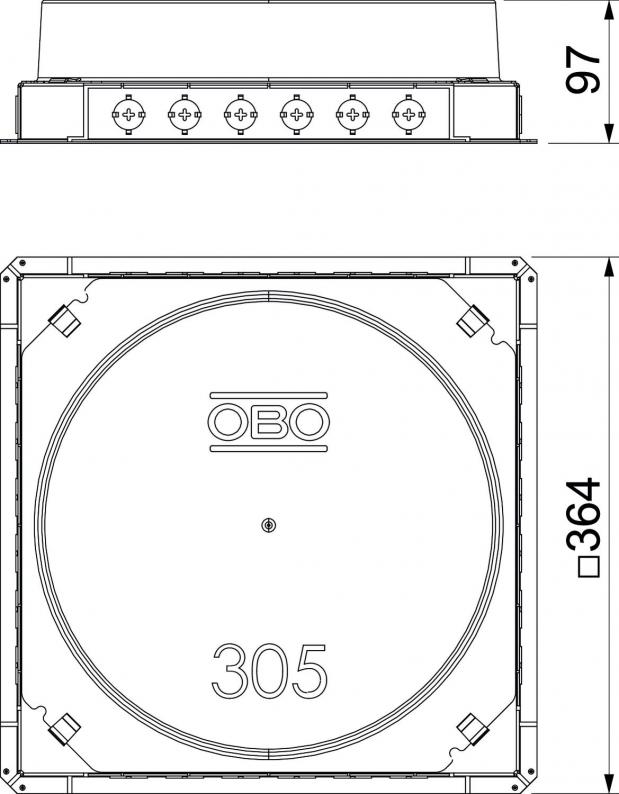

Dimensions
| Length | 364 mm |
|---|---|
| Width | 364 mm |
| Height | 96 mm |
| Dimension d Ø | 305 mm |
Technical data
| Screed height, min. | 65 mm |
|---|---|
| Screed height, max. | 95 mm |
| Trunking width, min. | 190 mm |
| Trunking width, max. | 250 mm |
| Nominal size for device installation units | R9 |
| Nominal size | 250 mm |
| Duct height, min. | 38 mm |
| Trunking height, max. | 38 mm |
| Dimension | 364x364x97 |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
9,8864 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 9,8864 kg CO2e / 1 Piece |
|---|
