Underfloor box UDS4 for PVC duct
Type UDSPD 9035 4
|Item no. 7400348
|EAN 4012195729761
Item no. / Type
7400348 / UDSPD 9035 4
Smallest selling unit: 1 piece
1piece
piece
Description

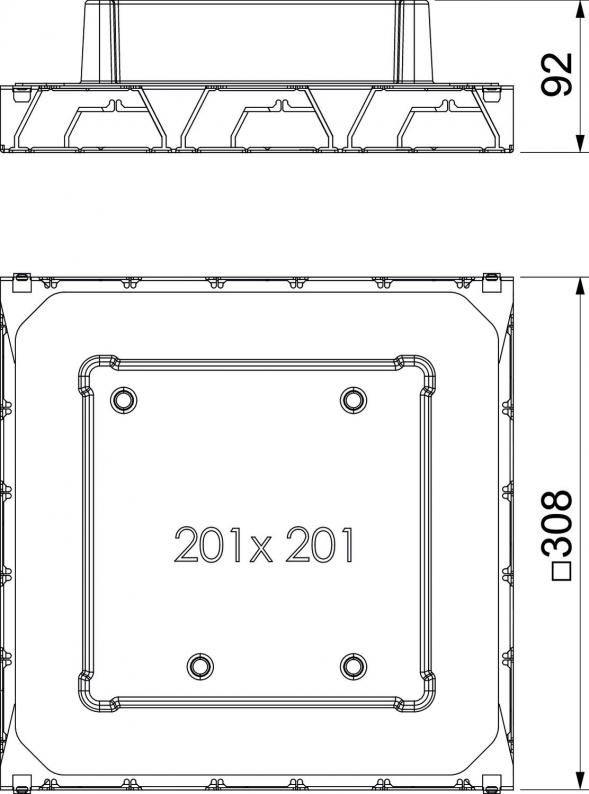

Underfloor outlet box with fixed, unchangeable 201 x 201 mm installation opening for an installation unit of nominal size 4. The mounting opening is created using the screed protection cover contained in the scope of supply. The underfloor box possesses installation openings for three single-compartment PVC ducts of nominal size 60 x 25 and 90 x 35 on all four sides. The box is principally suited for use in floor structures in cement screed with a structure height of up to 90 mm.
Technical data
Dimensions
| Length | 308 mm |
|---|---|
| Width | 308 mm |
| Height | 92 mm |
Technical data
| Screed height, min. | 65 mm |
|---|---|
| Screed height, max. | 90 mm |
| Suitable for screed-covered underfloor ducts | yes |
| Trunking width, min. | 60 mm |
| Trunking width, max. | 90 mm |
| Installation opening for on-floor tank | no |
| Seal installation option | no |
| Floor plate | yes |
| Installation opening for flush-mount unit | Square |
| Nominal size for device installation units | 4 |
| Duct height, min. | 25 mm |
| Trunking height, max. | 35 mm |
| Dimension | 308x308x92 |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
11,0386 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 11,0386 kg CO2e / 1 Piece |
|---|
