UGD250-3 for round installation units, for screed height 70−125 mm
Type UGD 250-3R4
|Item no. 7410091
|EAN 4012195431756
Item no. / Type
7410091 / UGD 250-3R4
Installation opening for flush-mount unit
Round
Nominal size for device installation units
R4
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
piece
Description

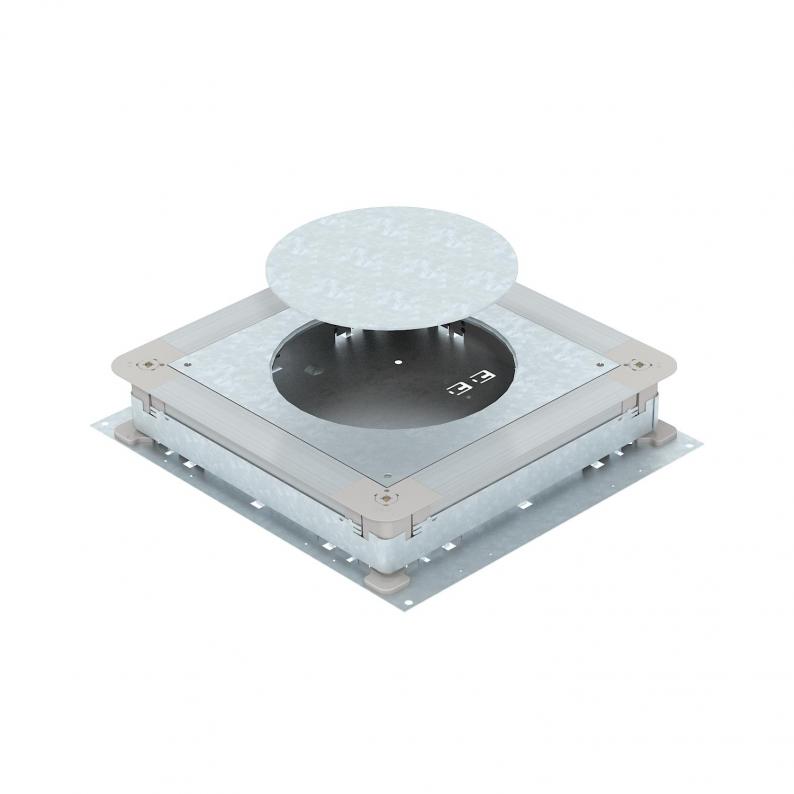

Underfloor accessory box for screed-covered underfloor installation ducts with sheet steel side walls. To mount installation units of the selected nominal size. Height can be infinitely adjusted to the nominal screed height (rapid adjustment possible) and the screed can be worked flushed to the screed scraping edge. With noise decoupling option after screed laying and can be used with system accessories, also for heavy-duty application.
Side walls are prepared for duct widths 190 and 250 mm.
Technical data
Technical data
| Screed height, min. | 70 mm |
|---|---|
| Screed height, max. | 125 mm |
| Height-adjustment range, min. | 70 mm |
| Height-adjustment range, max. | 125 mm |
| Minimum screed height | 70 |
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | no |
| Trunking width, min. | 190 mm |
| Trunking width, max. | 250 mm |
| Installation opening for on-floor tank | no |
| Seal installation option | yes |
| Decouplable | yes |
| Floor plate | yes |
| Suitable for underfloor ducts | yes |
| Lowerable to be flush-floor | no |
| Installation opening for flush-mount unit | Round |
| For pipe connection | no |
| Nominal size for device installation units | R4 |
| Installation space, min. | 6,09 dm³ |
| Installation space, max. | 11,63 dm³ |
| Nominal size | 250 mm |
| Duct height, min. | 28 mm |
| Trunking height, max. | 48 mm |
| Dimension | 410x367x70 |
| Surface | Strip galvanized |
| Material | Steel |
Dimensions

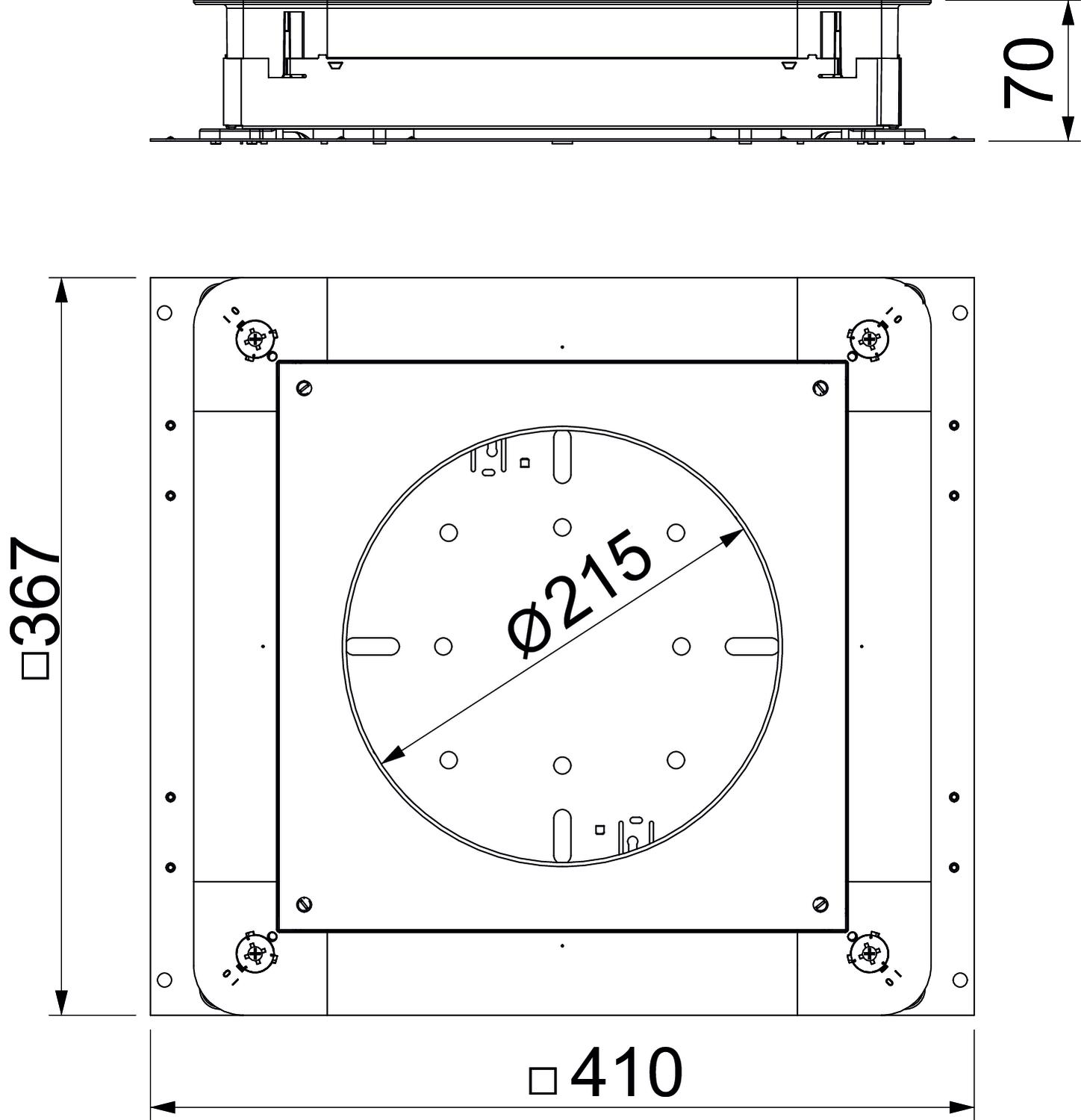

| Dimension A | 367 mm |
|---|---|
| Dimension B | 410 mm |
| Dimension b | 283 mm |
| Dimension a | 262 mm |
| Dimension d Ø | 215 mm |
Environmental Data
7,8286 kg CO₂e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 7,8286 kg CO₂e / 1 Piece |
|---|
