UDHOME2 data technology support type LE
Type DT UH2 LE
|Item no. 7368478
|EAN 4012196692590
Item no. / Type
7368478 / DT UH2 LE
Smallest selling unit: 1 piece
1piece
piece
Description

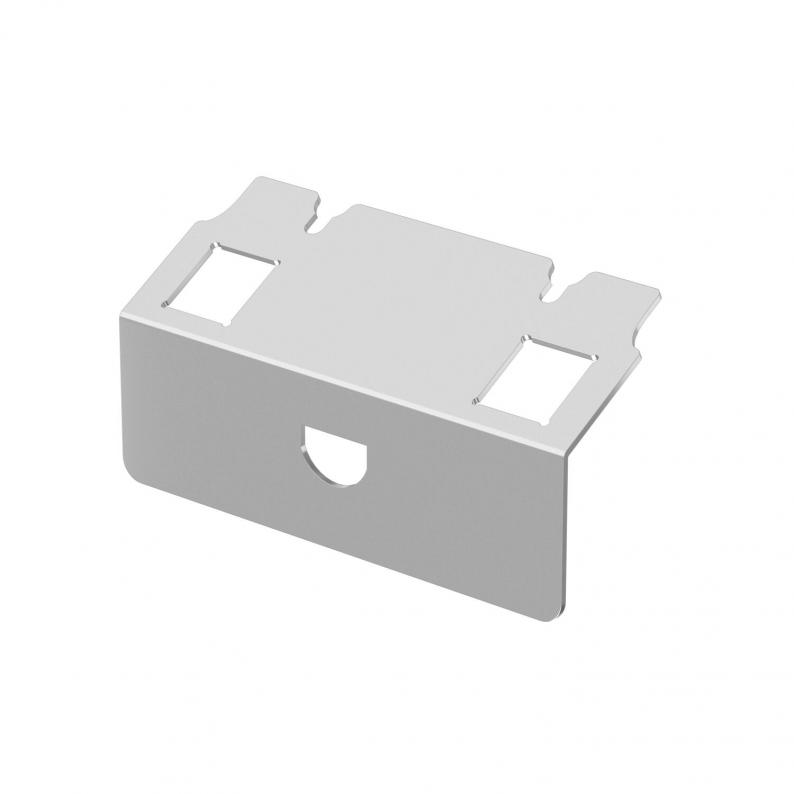

Mounting support to accommodate two data connection modules of type LE: LexCom 125 and 250.

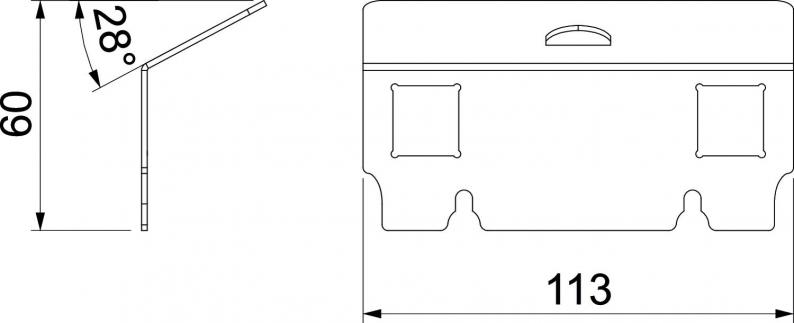

Dimensions of a mounting opening in mm: 18.30 x 17.20.
Dimensions of a mounting opening in mm: 18.30 x 17.20.
Technical data
Technical data
| Labelling panel | no |
|---|---|
| Device type | Data technology |
| Number of installable devices | 2 |
| Suitable for wet care | no |
| Installation technology | Miscellaneous |
| Heavy-duty version | no |
| Nominal size for device installation units | 2 |
| Approvals | VDE |
| Standard | EN 50085-2-2 |
| Fastening type | Lockable |
| Material | Stainless steel |
Environmental Data
0,6617 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,6617 kg CO2e / 1 Piece |
|---|
