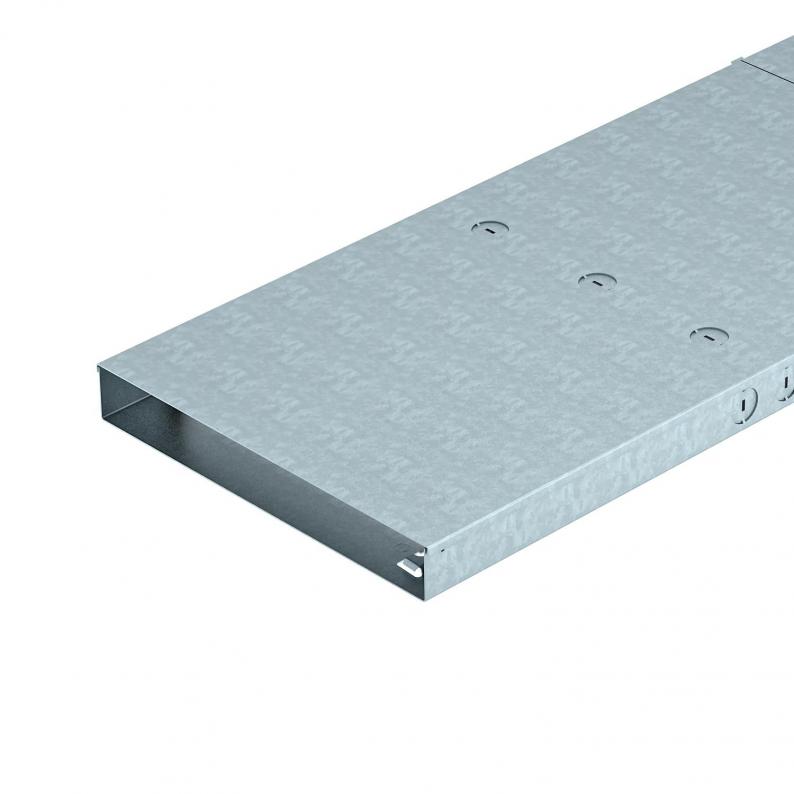

Trunking RFT 300 unit with cable outlet M25
Type RFT 300 40
|Item no. 7428195
|EAN 4012196434374
Item no. / Type
7428195 / RFT 300 40
Smallest selling unit: 1 piece
1piece
piece
Description
The raised floor trunking can be used for routing cables underneath raised floor panels. Retaining straps permit the self-contacting mounting of separating retainers.
Technical data

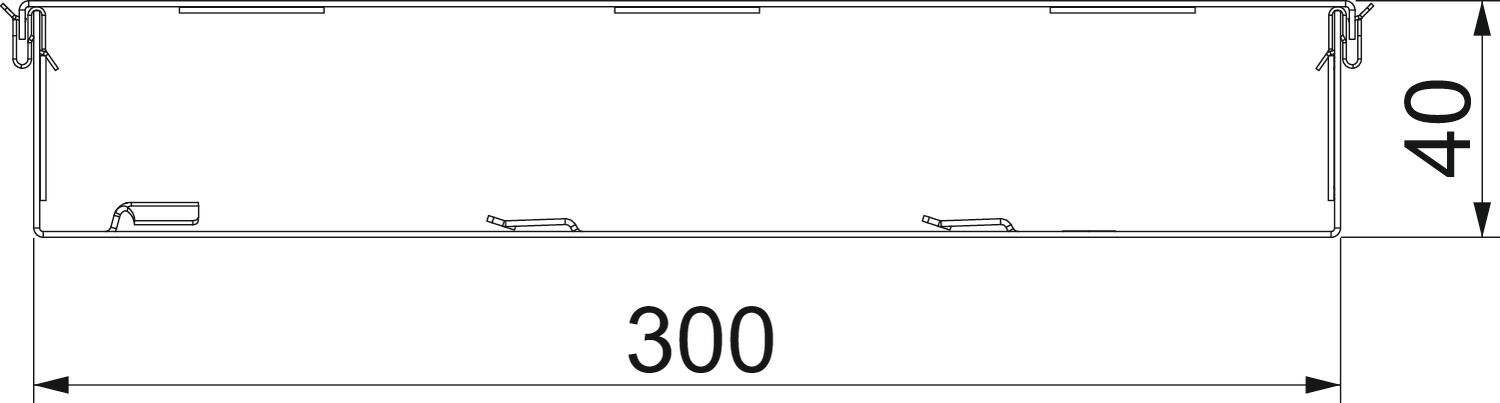

Dimensions
| Length | 2400 mm |
|---|---|
| Width | 300 mm |
| Height | 40 mm |
| Dimension b | 300 mm |
| Dimension h | 40 mm |
Technical data
| Plate thickness | 1 mm |
|---|---|
| Number of compartments | 3 St. |
| Suitable for screed-flush closed underfloor ducts | no |
| Installation opening for on-floor tank | no |
| Seal installation option | no |
| Decouplable | no |
| Floor plate | yes |
| With screening | no |
| With equipotential bonding | yes |
| Removable cover | yes |
| Cover fastening, locking | yes |
| With separating retainer | no |
| Suitable for expansion joint | no |
| With overhang | no |
| With connection opening | yes |
| Suitable for flushfloor, open underfloor trunking | no |
| For pipe connection | yes |
| Heavy-duty version | no |
| Dimension | 2400x300x40 |
| Surface | Strip galvanized |
| Material | Steel |
| Separating retainer fastening | Lock |
Environmental Data
37,8328 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 37,8328 kg CO2e / 1 Piece |
|---|
