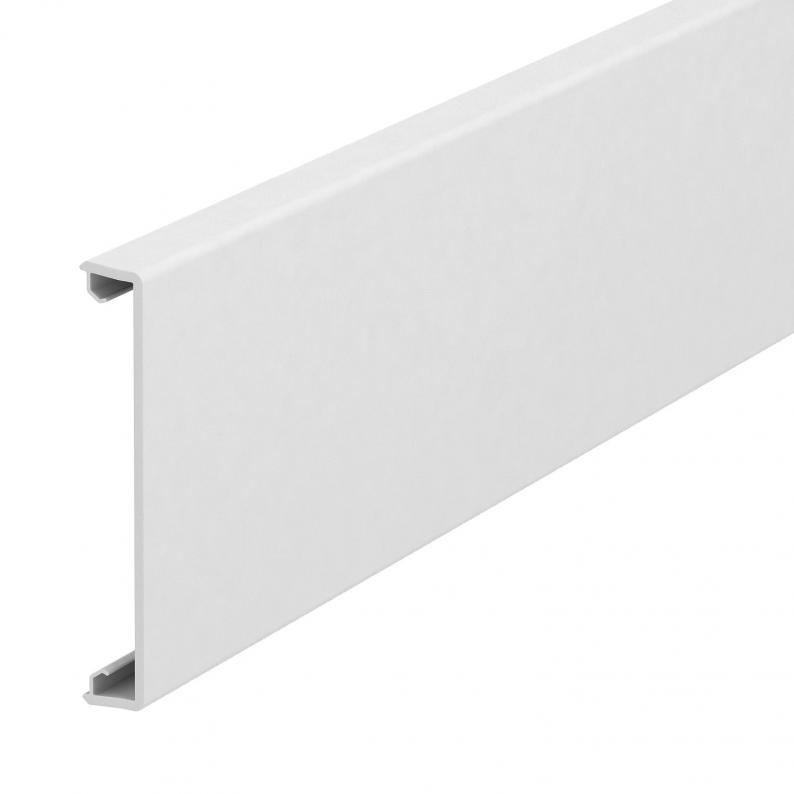

Trunking cover, smooth
Type GKH-OTGRW | Item no. 6114210 | EAN 4012196450831
Item no. / Type
6114210 / GKH-OTGRW
Colour
Pure white; RAL 9010
Smallest selling unit: 2 m
2m
Description
Smooth trunking cover made of halogen-free PC/ABS, for closing device installation trunking with 80 mm system opening.
Technical data
Dimensions
| Length | 2000 mm |
|---|---|

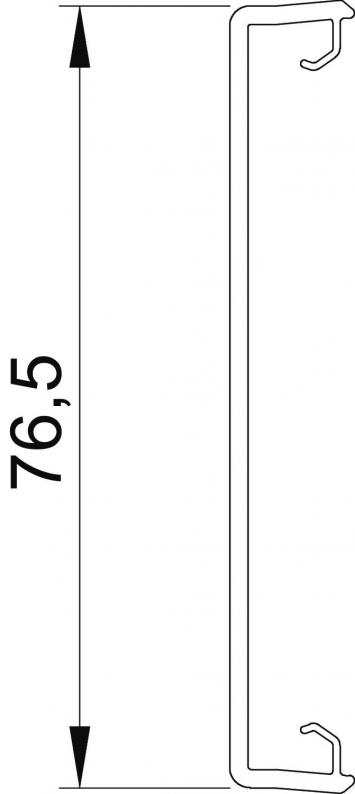

| Width | 76,5 mm |
| Height | 12 mm |
Technical data
| Halogen-free | yes |
|---|---|
| Protective film | yes |
| Protection rating | IP30 |
| Cover mounting type | Internal |
| Protection rating IK code | IK08 |
| Version for | Smooth |
| Permitted temperature range, max. | 90 °C |
| Permitted temperature range, min. | -15 °C |
| Dimension | 70x2000 |
| Material | Polycarbonate/Acrylnitrile-butadiene-styrene |
| Colour | Pure white; RAL 9010 |
| Antibacterial treatment | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,2707 kg CO2e / 1 Meter |
