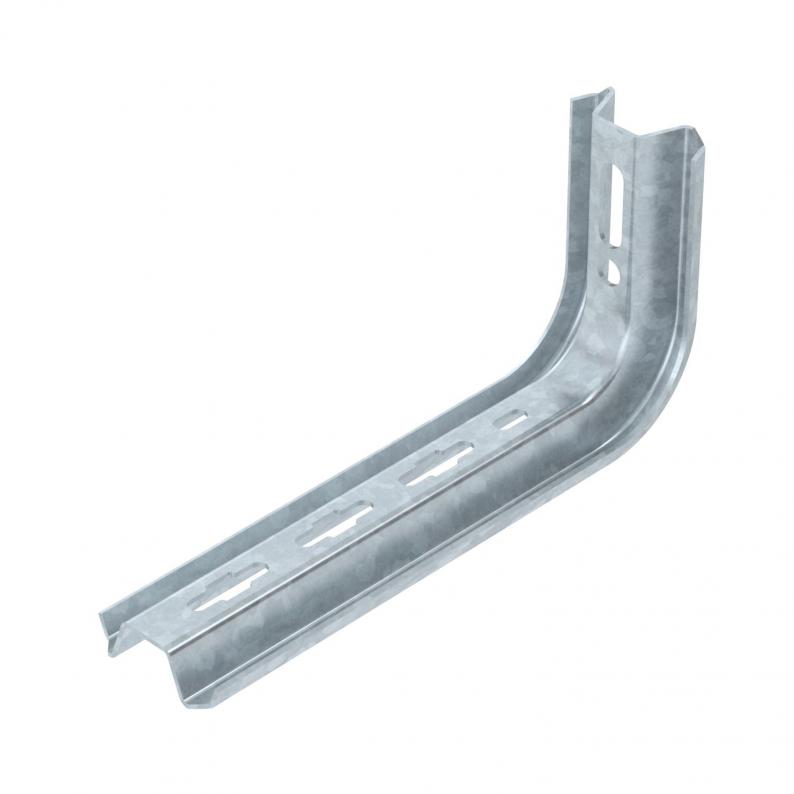

TP support / wall and support bracket FT
Type TPSA 245 FT | Item no. 6364667 | EAN 4012196473953
Item no. / Type
Width
F in kN
Colour
zinc
Smallest selling unit: 1 piece
1piece
Description
TP support/bracket for fastening to horizontal concrete ceilings and walls.
If the profile is fastened directly to the ceiling or the profile is screwed together as head reinforcement, then, for reasons of stability, always use the spacer, type DS 4.
Technical data

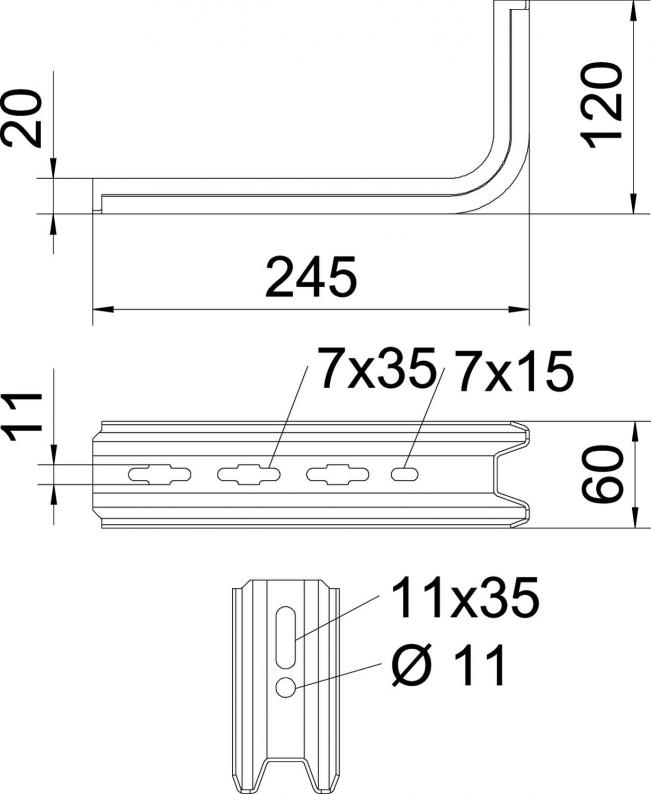

Dimensions
| Length | 245 mm |
|---|---|
| Width | 60 mm |
| Height | 120 mm |
| Dimension L | 245 mm |
| Dimension B | 60 mm |
| Dimension H | 120 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| for width max. | 200 mm |
| for width min. | 200 |
| Version for | Wall and support bracket |
| F in kN | 0,9 kN |
| Dimension | B245mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,0317 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (5)
Instructions and Aid (2)
Product images (2)
3D data downloads (2)
Tender specifications (2)
Accessories
Mounting accessories
Variants
Type
Width
F in kN
Colour
Item no.
TPSA 145 FT
60
1,5
zinc
6364659
TPSA 245 FT
60
0,9
zinc
6364667
TPSA 345 FT
60
0,55
zinc
6364675
TPSA 195 FT
60
1
zinc
6364683
F in kN
TPSA 145 FT
Item no.
6364659
Width
60
F in kN
1,5
Colour
zinc
TPSA 245 FT
Item no.
6364667
Width
60
F in kN
0,9
Colour
zinc
TPSA 345 FT
Item no.
6364675
Width
60
F in kN
0,55
Colour
zinc
TPSA 195 FT
Item no.
6364683
Width
60
F in kN
1
Colour
zinc
