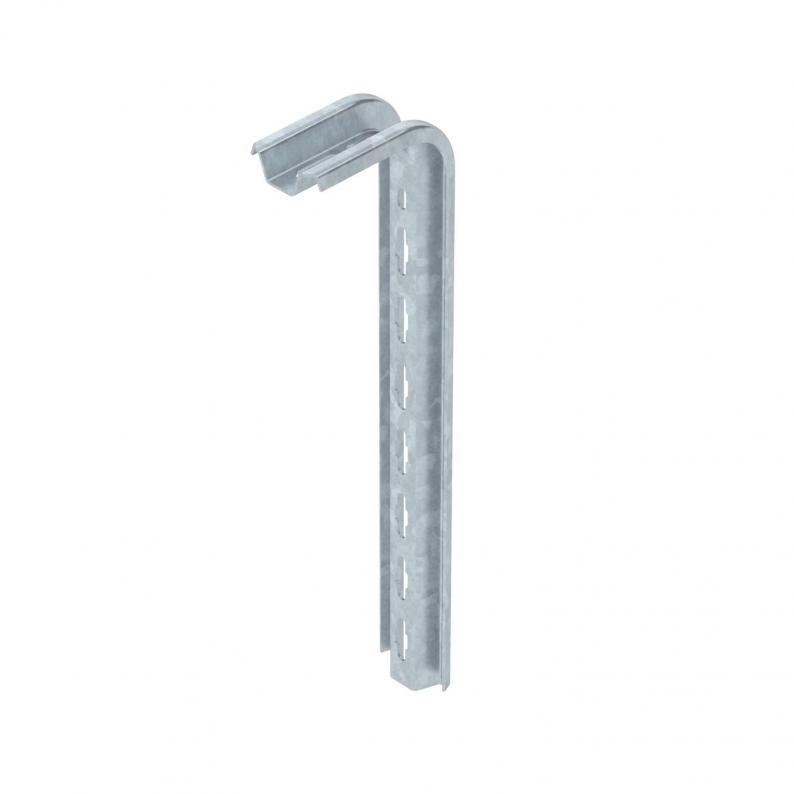

TP support FT
Type TPS 445 FT | Item no. 6364403 | EAN 4012196473717
Item no. / Type
Length
Colour
zinc
Smallest selling unit: 1 piece
1piece
Description
TP support for fastening to horizontal concrete ceilings.
If the profile is fastened directly to the ceiling or the profile is screwed together as head reinforcement, then, for reasons of stability, always use the spacer, type DS 4.
Important: only use brackets of length 345 mm or less.
Technical data

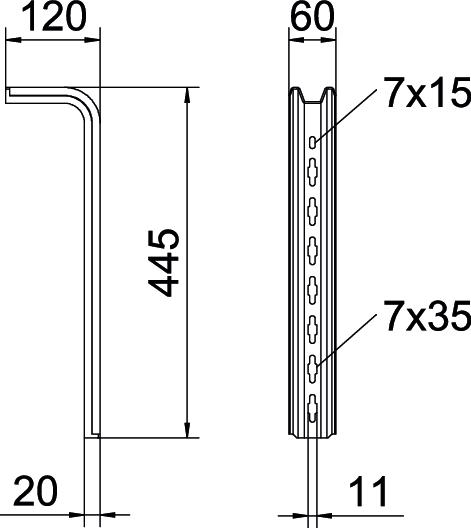

Dimensions
| Length | 445 mm |
|---|---|
| Width | 60 mm |
| Height | 120 mm |
| Dimension L | 445 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Version for | S profile |
| Dimension | L445mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,6365 kg CO2e / 1 Piece |
Bending of the end of the suspended support at permitted bracket load
Permitted bracket load in kN without man load
Bracket length in mm
Load curves with support lengths in mm
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Accessories
Mounting accessories
Variants
Type
Length
Colour
Item no.
TPS 445 FT
445
zinc
6364403
TPS 545 FT
545
zinc
6364500
TPS 645 FT
645
zinc
6364608
Length
TPS 445 FT
Item no.
6364403
Length
445
Colour
zinc
TPS 545 FT
Item no.
6364500
Length
545
Colour
zinc
TPS 645 FT
Item no.
6364608
Length
645
Colour
zinc
