TP profile FS
Type TPS 3000 FS | Item no. 6364802 | EAN 4012196282739
Item no. / Type
6364802 / TPS 3000 FS
Smallest selling unit: 1 piece
1piece
Description

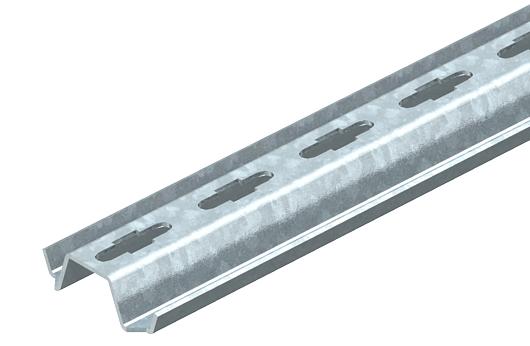

TP profile, perforated, in supply length 3,000 mm.
Technical data

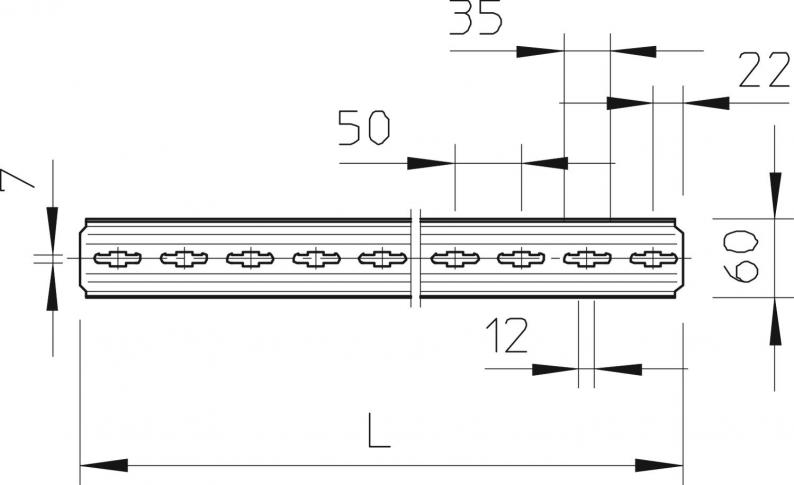

Dimensions
| Length | 3000 mm |
|---|---|
| Width | 60 mm |
| Height | 20 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Plate thickness | 2 mm |
| Type of perforation | Perforated back |
| Breakable | no |
| Hole width | 11 mm |
| With toothing | no |
| Version for | Single profile |
| Profile shape | Flat profile |
| Dimension | 3000mm |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 9,6755 kg CO2e / 1 Piece |
