Terminal strip set with screw terminals for SDB 05
Type KLS-SDB 05 | Item no. 2008884 | EAN 4012196465835
Item no. / Type
2008884 / KLS-SDB 05
Smallest selling unit: 1 piece
1piece
Description

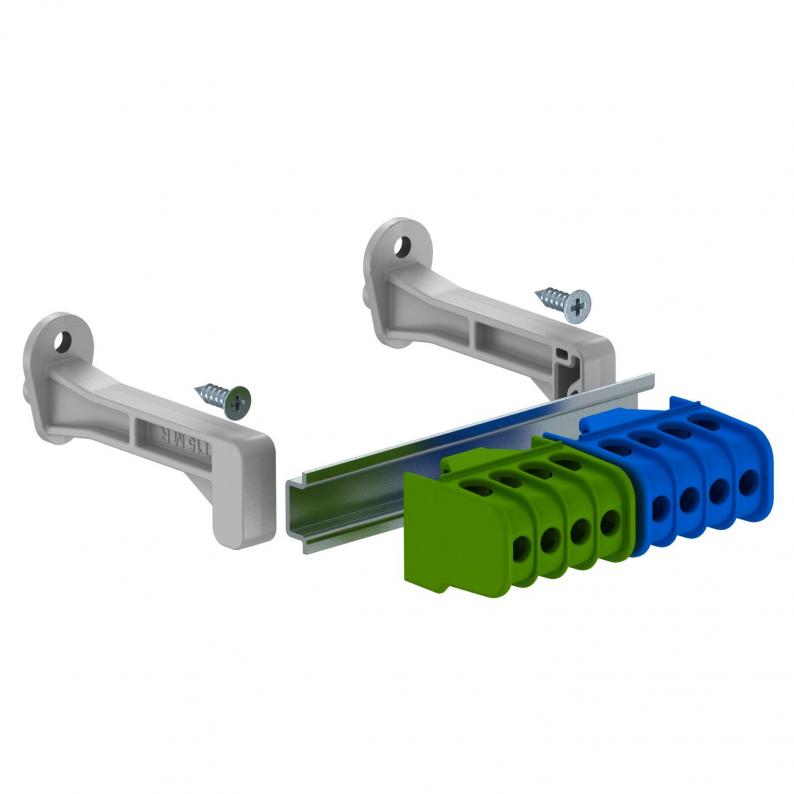

Terminal strip set for the small distributors of the SDB series. The sets can be used to expand and equip empty small distributors of the SDB 05... type series.
Mounting instructions; hat rail with corresponding support and fastening material; 16 mm² protective conductor terminal; 16 mm² neutral conductor terminal
Mounting instructions; hat rail with corresponding support and fastening material; 16 mm² protective conductor terminal; 16 mm² neutral conductor terminal
The terminal strip set with screw terminals contains:
Technical data
Dimensions
| Length | 82 mm |
|---|---|
| Width | 20,5 mm |
| Height | 31 mm |
Technical data
| Nominal current | 100 A |
|---|---|
| Nominal voltage | 450 V |
| Number of screwless terminals per pole | 4 |
| Nominal cross-section, max. | 16 mm² |
| Nominal cross-section, min. | 6 mm² |
| Dimension | 121x15x4 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,4205 kg CO₂e / 1 Piece |
