Terminal strip set with screw terminals for SDB 03
Type KLS-SDB 03 | Item no. 2008880 | EAN 4012196465828
Item no. / Type
2008880 / KLS-SDB 03
Smallest selling unit: 1 piece
1piece
Description
Terminal strip set for the small distributors of the SDB series. The sets can be used to expand and equip empty small distributors of the SDB 03... type series.

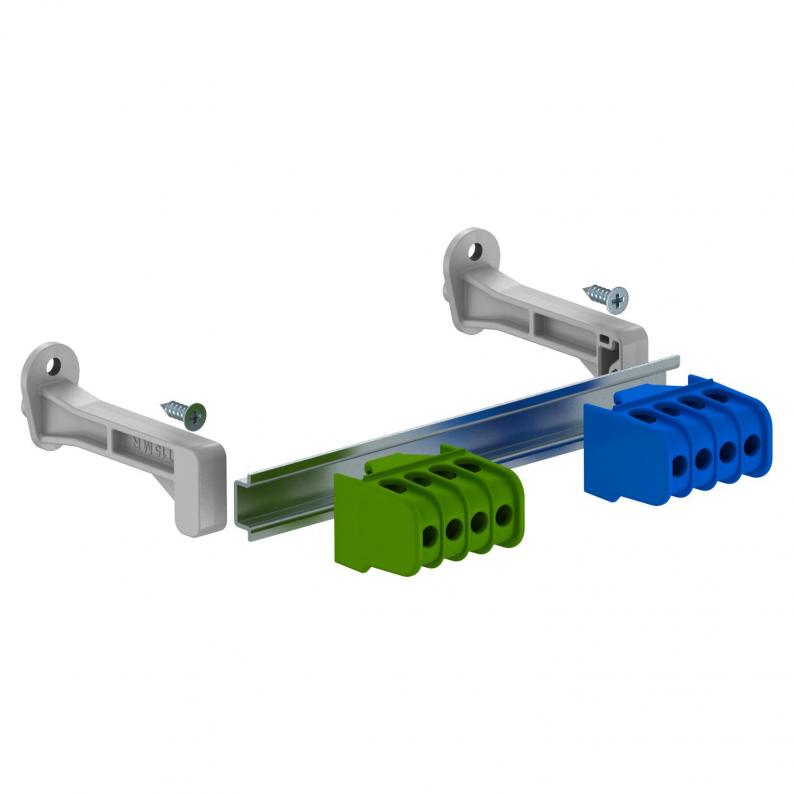

Mounting instructions; hat rail with corresponding support and fastening material; 16 mm² protective conductor terminal; 16 mm² neutral conductor terminal
Mounting instructions; hat rail with corresponding support and fastening material; 16 mm² protective conductor terminal; 16 mm² neutral conductor terminal
The terminal strip set with screw terminals contains:
Technical data
Dimensions
| Length | 122 mm |
|---|---|
| Width | 20,5 mm |
| Height | 31 mm |
Technical data
| Nominal current | 100 A |
|---|---|
| Nominal voltage | 450 V |
| Number of screwless terminals per pole | 4 |
| Nominal cross-section, max. | 16 mm² |
| Nominal cross-section, min. | 6 mm² |
| Dimension | 82x15x4 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,4314 kg CO₂e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Product images (2)
Tender specifications (2)
