Terminal strip 1.5–6 mm², junction box, T series

Type KL-T 02-06

Item no. 2016185

EAN 4012195942832

Data sheet (PDF)

REACH Declaration of conformity (PDF)

RoHS Declaration of conformity (PDF)

Declaration of conformity (PDF)

Show all variants

Item no. / Type

2016185 / KL-T 02-06

No. of terminals

Smallest selling unit: 10 piece

piece

Description Technical data Downloads Variants

Description

Terminals and screws made of steel, galvanised and transparent-chromated, nominal cross-section 1.5 ÷ 6 mm², rated voltage 400 V, five-pole, with socket terminals, max. connectable cross-sections per terminal: 3x6 mm², 4x4 mm² or 6x2.5 mm².

System accessories for B9/TM; T60 junction box

Technical data

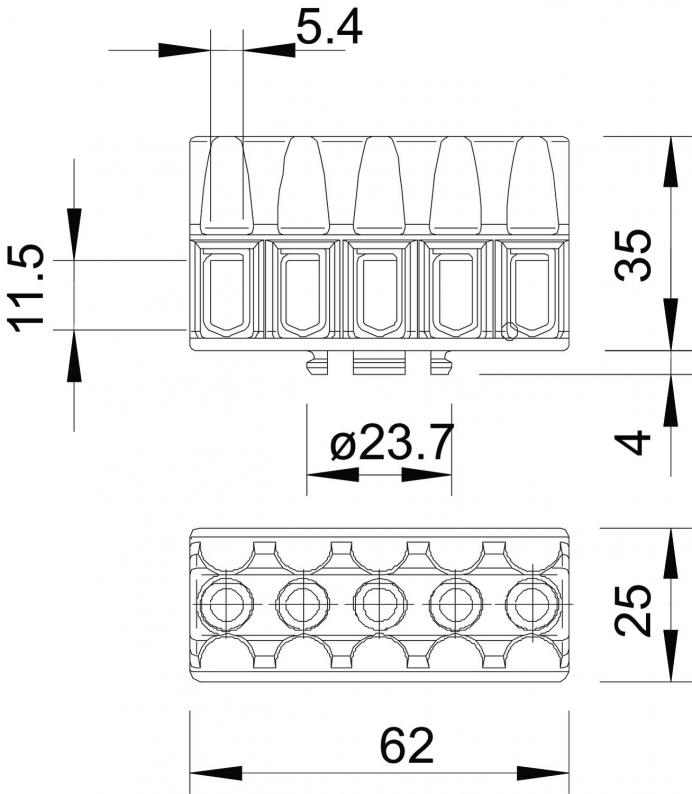

Dimensions

Length	62 mm
Width	25 mm
Height	35 mm

Materials and Packaging

Packaging made completely from recycled cardboard.	yes
Packaging without plastic	yes

Technical data

Pole number	5
Nominal current	41 A
Nominal voltage	400 V
Explosion-tested version	no
Closing plate required	no
Insulation material	Thermoplast
Transparent	no
Number of screwless terminals per pole	1
Version of electrical connection 1	Screw connection
Connection position	Side
Connectable conductor cross-section, single-wire, min.	2,5 mm²
Connectable conductor cross-section, single-wire, max.	6 mm²
Nominal cross-section, min.	1,5 mm²
Nominal cross-section, max.	6 mm²
Cross-section	Max. connectable cross-sections per terminal: 3 x 6 mm², 4 x 4 mm² or 6 x 2.5 mm² mm²
No. of terminals	5
Dimension	6mm²
Material	Polyamide
Colour	Light grey

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate	0,1677 kg CO2e / 1 Piece
