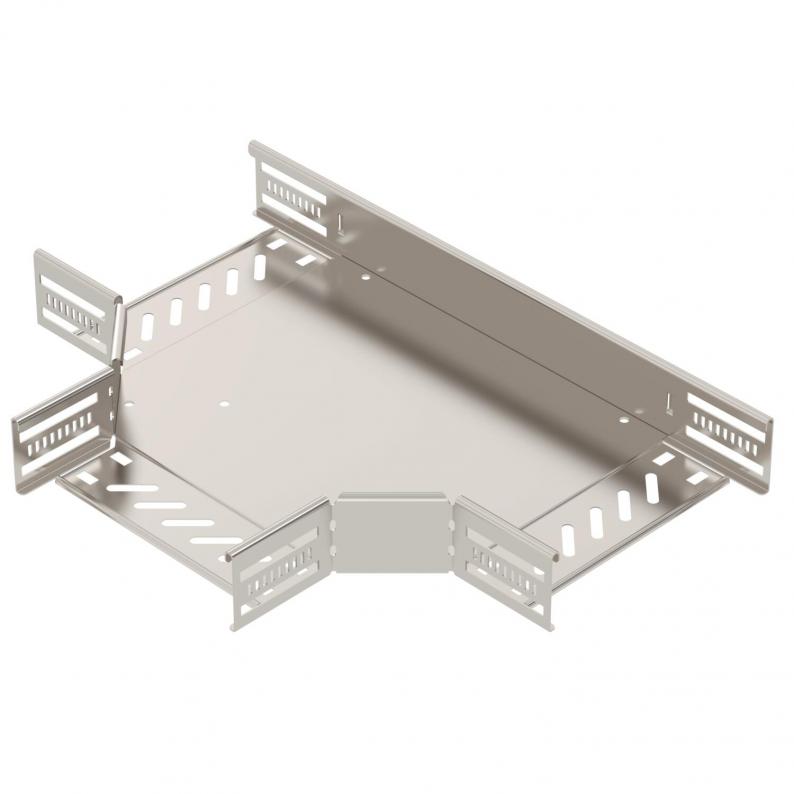

T piece 60/200 A4
Type RT 620 A4 | Item no. 6038182 | EAN 4012197340070
Item no. / Type
Width
Surface
Bright, treated
Material
Stainless steel 1.4571
Smallest selling unit: 1 piece
1piece
Description
T piece for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 60 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used indoors and outdoors. Fastening material must be ordered separately.
Technical data
Dimensions
| Width | 200 mm |
|---|---|
| Height | 60 mm |
| Dimension B | 200 mm |
Technical data
| Maintain electrical functions | yes |
|---|---|
| Connector version | Integrated connector |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 0,8 mm |
| NATO hole pattern | no |
| Width of the branch | 200 mm |
| Type | T piece horizontal |
| Rail thickness | 1,25 mm |
| Permitted temperature range, max. | 120 °C |
| Permitted temperature range, min. | -20 °C |
| Dimension | 60x200 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4571 |
| Colour | stainless steel |
| Type of connector, cable support system | Screwed |
| Recommended quantity of bolts | 18 St. |
| CO2 Footprint (GWP) Cradle-to-Gate | 9,3988 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Width
Surface
Material
Item no.
RT 610 A4
100
Bright, treated
Stainless steel 1.4571
6038180
RT 620 A4
200
Bright, treated
Stainless steel 1.4571
6038182
RT 630 A4
300
Bright, treated
Stainless steel 1.4571
6038184
RT 640 A4
400
Bright, treated
Stainless steel 1.4571
6038186
RT 650 A4
500
Bright, treated
Stainless steel 1.4571
6038188
RT 660 A4
600
Bright, treated
Stainless steel 1.4571
6038190
