T piece 110 FT

T piece 110 FT

Type SLT 1130 R3 FT
|
Item no. 6225352
|
EAN 4012196444533
Show all variants
Item no. / Type
Width
Rail thickness

Smallest selling unit: 1 piece

piece

Description

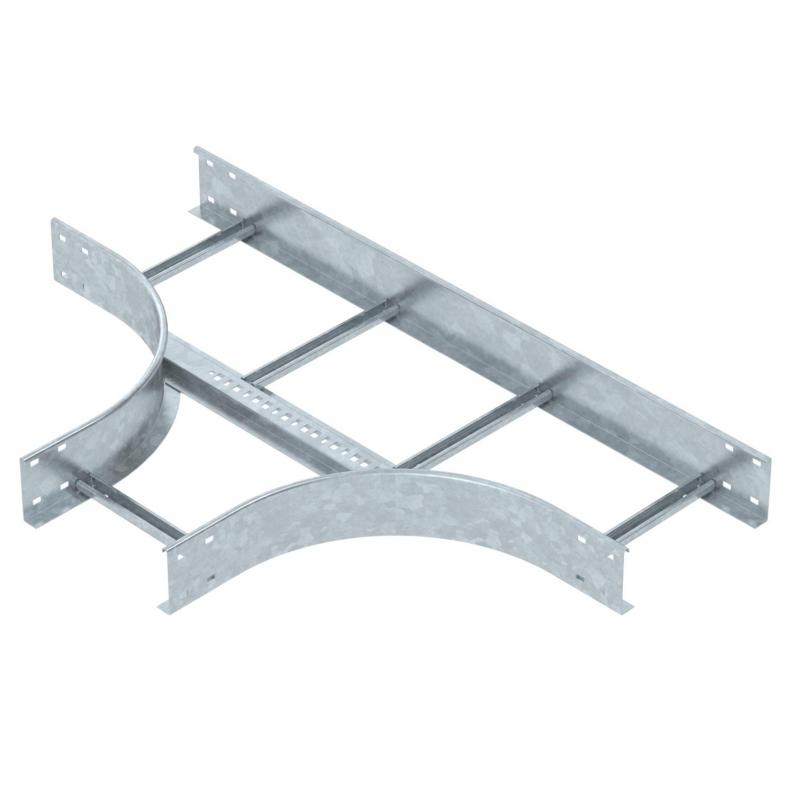

T piece, horizontal, with welded rung for all cable ladder types of 110 mm side height.

Connectors should be ordered separately and in the appropriate quantity.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Cable ladder, side height 110 mm
  • CO₂ footprint (PCF)

Technical data

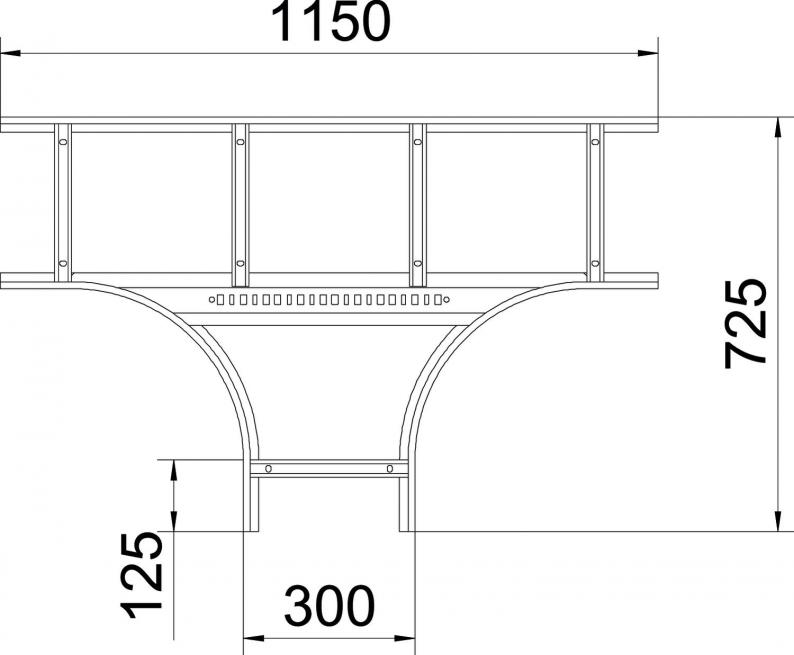

Dimensions

Width300 mm
Height110 mm
Dimension B300 mm
Dimension R300 mm

Technical data

Maintain electrical functionsno
Connector versionWithout connectors
Wide-span versionno
Rustproof steel, pickledno
Version of the rungsProfile unperforated
Side rail versionFlat profile
TypeExit symmetrical
Rail thickness2 mm
Dimension110x300
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc

Environmental Data

20,7504 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate20,7504 kg CO2e / 1 Piece

Accessories

Mounting accessories

Item no. 6216548

Straight connector FT
Type
LVG 110 FT

Smallest selling unit: 10 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
SLT 1120 R3 FT
Item no.
6225350
Width
200
Rail thickness
2
SLT 1130 R3 FT
Item no.
6225352
Width
300
Rail thickness
2
SLT 1140 R3 FT
Item no.
6225354
Width
400
Rail thickness
2
SLT 1150 R3 FT
Item no.
6225358
Width
500
Rail thickness
2
SLT 1160 R3 FT
Item no.
6225360
Width
600
Rail thickness
2
SLT 1180 R3 FT
Item no.
6225364
Width
800
Rail thickness
2
SLT 1190 R3 FT
Item no.
6225366
Width
900
Rail thickness
2
SLT 11100 R3 FT
Item no.
6225368
Width
1000
Rail thickness
2
SLT 11120 R3 FT
Item no.
6225372
Width
1200
Rail thickness
2
