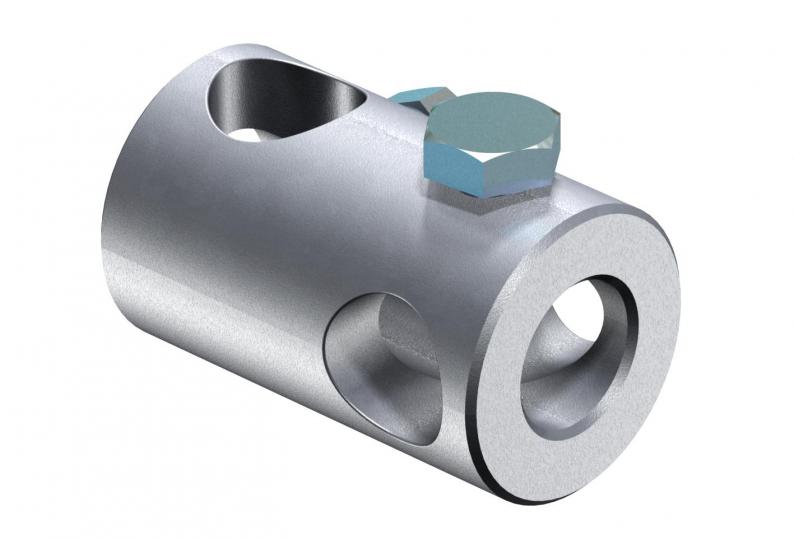

T connector
Type 101 IT
|Item no. 5408156
|EAN 4012195681496
Item no. / Type
Dimension L
Dimension d Ø
Dimension d min.
Smallest selling unit: 10 piece
10piece
piece
Description
• T connector for installation of insulating rods
• With M10 bolts
• With M10 bolts
Technical data

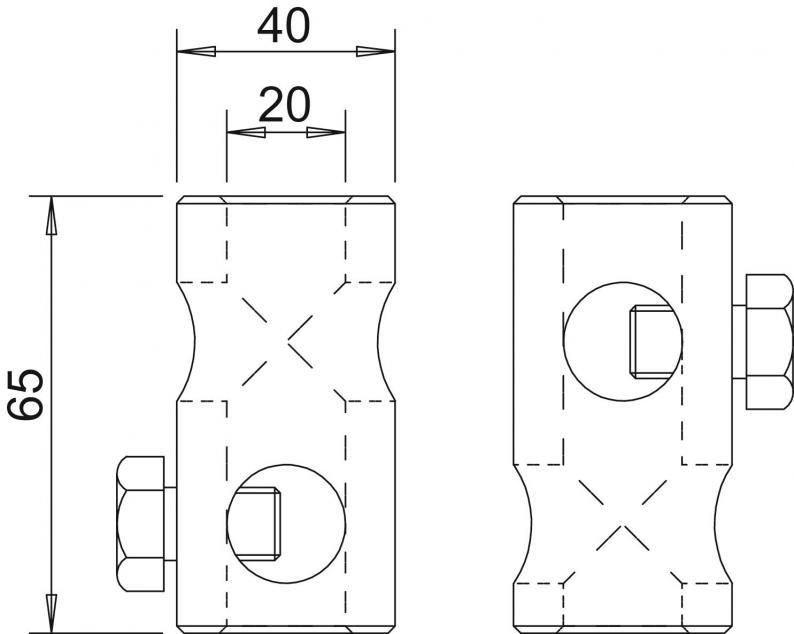

Dimensions
| Length | 65 mm |
|---|---|
| Dimension L | 65 mm |
| Dimension d Ø | 20 mm |
| Dimension d min. | 40 mm |
Technical data
| Connection | Round conductor |
|---|---|
| Dimension | 20mm |
| Material | Aluminium |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,9176 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Dimension L
Dimension d Ø
Dimension d min.
Item no.
101 IT
65
20
40
5408156
101 IT-16
60
16
30
5408158
Dimension L
Dimension d Ø
Dimension d min.
101 IT
Item no.
5408156
Dimension L
65
Dimension d Ø
20
Dimension d min.
40
101 IT-16
Item no.
5408158
Dimension L
60
Dimension d Ø
16
Dimension d min.
30
