T branch piece 60 FT

T branch piece 60 FT

Type RT 650 FT | Item no. 7117507 | EAN 4012196245116

Show all variants
Item no. / Type
Width
Surface
Hot-dip galvanised
Material
Steel

This item is a discontinued product!

You can find the successor product here.

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

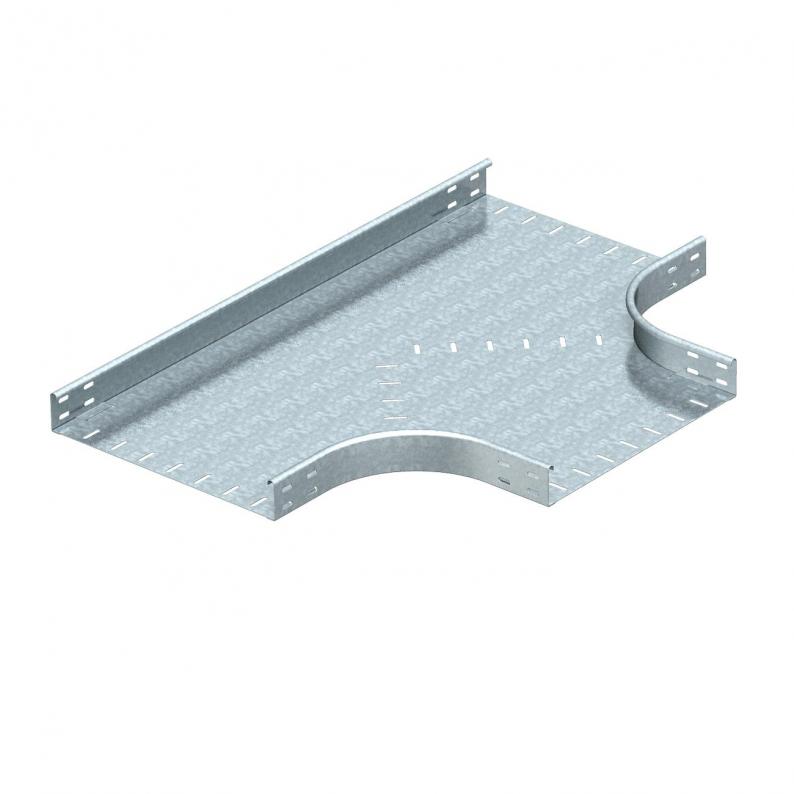

Horizontal T branch piece, for all cable tray types of 60 mm side height.

Fitting in round design. The interior radius of the fitting is 150 mm. All the sides are designed for the same cable tray width.

Fastening materials should be ordered separately.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Cable tray, side height 60 mm

Technical data

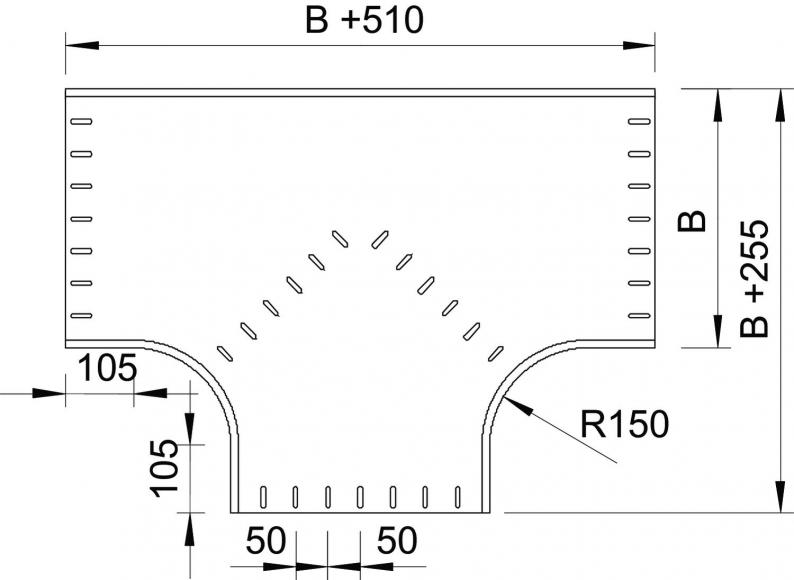

Dimensions

Width500 mm
Height60 mm
Dimension B500 mm
Dimension R150 mm

Technical data

Maintain electrical functionsno
Connector versionWithout connectors
Wide-span versionno
Rustproof steel, pickledno
NATO hole patternno
Bend (angle)90°
Change of directionHorizontal
TypeT piece horizontal
Rail thickness1,25 mm
Dimension60x500
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Type of connector, cable support systemScrewed

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

Width
RT 640 FT
Item no.
7117396
Width
400
Surface
Hot-dip galvanised
Material
Steel
RT 645 FT
Item no.
7117477
Width
450
Surface
Hot-dip galvanised
Material
Steel
RT 650 FT
Item no.
7117507
Width
500
Surface
Hot-dip galvanised
Material
Steel
RT 660 FT
Item no.
7117604
Width
600
Surface
Hot-dip galvanised
Material
Steel
RT 675 FT
Item no.
7117606
Width
750
Surface
Hot-dip galvanised
Material
Steel
RT 690 FT
Item no.
7117608
Width
900
Surface
Hot-dip galvanised
Material
Steel
