T branch piece 60 FT
Type RT 610 FT | Item no. 7117116 | EAN 4012196812356
Item no. / Type
Width
Surface
Hot-dip galvanised
Material
Steel
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
Description

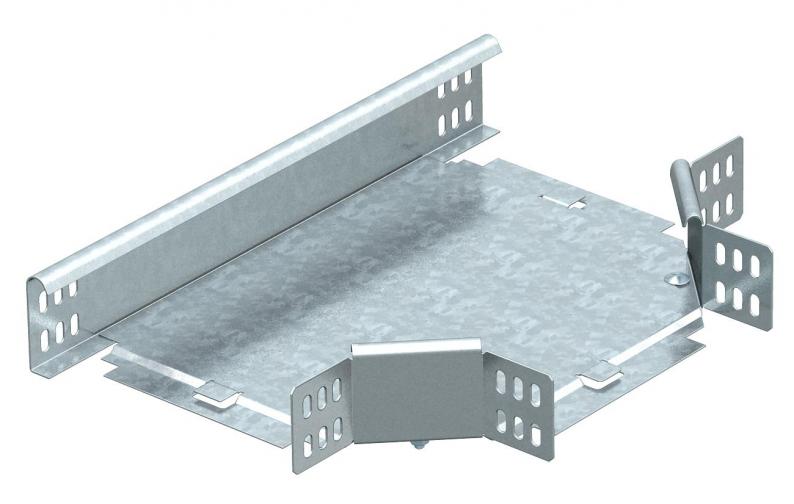

Horizontal T branch piece, for all cable tray types of 60 mm side height.
The fitting is shipped in an unmounted state. All the sides are designed for the same cable tray width.
Including appropriate fastening material.
Technical data

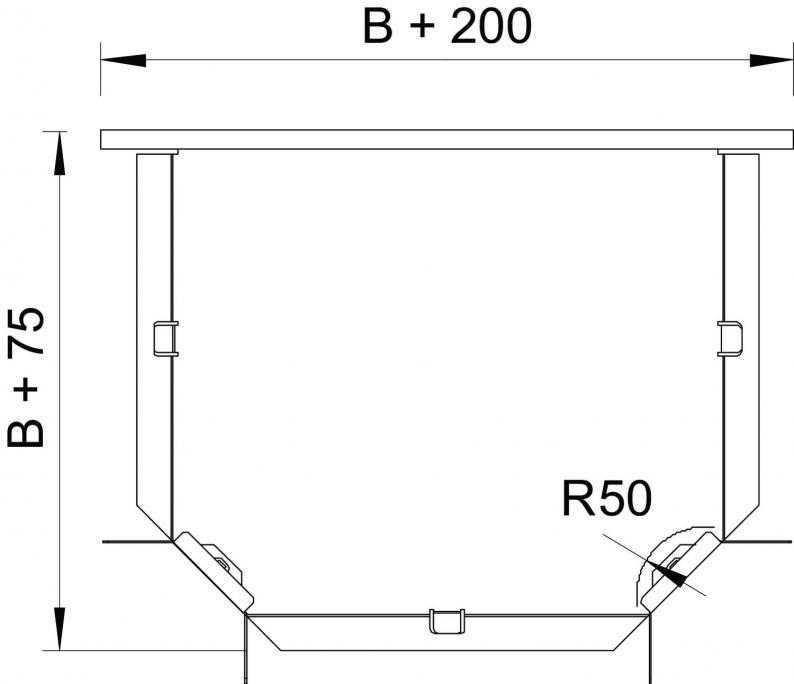

Dimensions
| Width | 100 mm |
|---|---|
| Height | 60 mm |
| Dimension B | 100 mm |
| Dimension R | 50 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Supplied connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| NATO hole pattern | no |
| Bend (angle) | 90° |
| Change of direction | Horizontal |
| Type | T piece horizontal |
| Rail thickness | 1,25 mm |
| Dimension | 60x100 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (2)
Tender specifications (2)
Variants
Type
Width
Surface
Material
Item no.
RT 610 FT
100
Hot-dip galvanised
Steel
7117116
RT 615 FT
150
Hot-dip galvanised
Steel
7117162
RT 620 FT
200
Hot-dip galvanised
Steel
7117209
RT 630 FT
300
Hot-dip galvanised
Steel
7117306
Width
RT 610 FT
Item no.
7117116
Width
100
Surface
Hot-dip galvanised
Material
Steel
RT 615 FT
Item no.
7117162
Width
150
Surface
Hot-dip galvanised
Material
Steel
RT 620 FT
Item no.
7117209
Width
200
Surface
Hot-dip galvanised
Material
Steel
RT 630 FT
Item no.
7117306
Width
300
Surface
Hot-dip galvanised
Material
Steel
