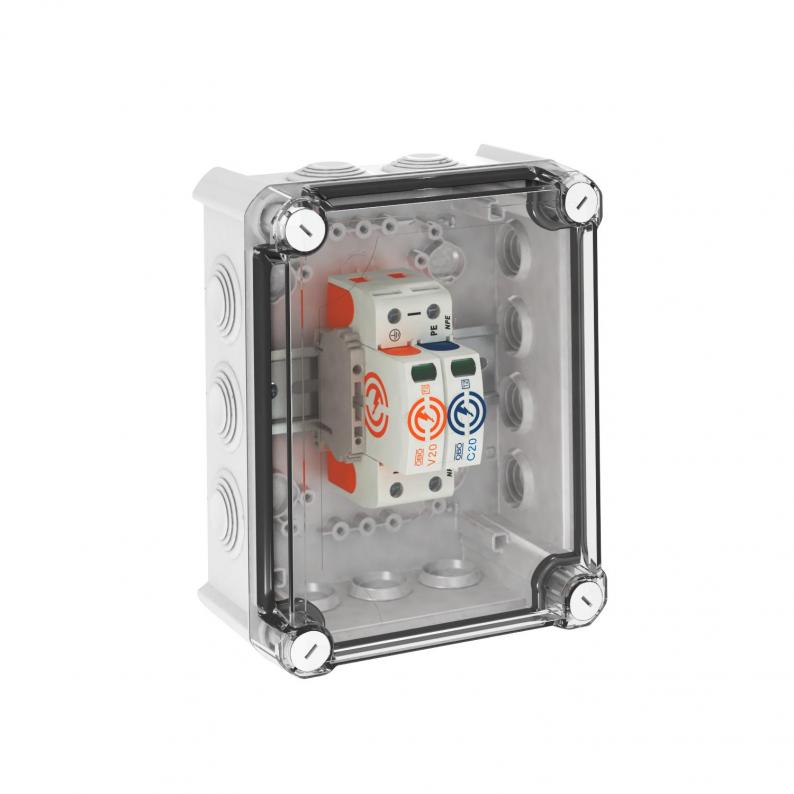

System solution, surge arrester V20 in housing, 1-pole + NPE, 280 V

System solution, surge arrester V20 in housing, 1-pole + NPE, 280 V

Type VG-V20-1+NPE-280 | Item no. 5095381 | EAN 4012196423194

Show all variants
Item no. / Type
Maximum continuous voltage AC
Pole version
Protection rating
IP66

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

Surge arrester, type 2, according to DIN EN 61643-11

• For surge voltage protection equipotential bonding to VDE 0100-443 (IEC 60364-4-44)
• Complete unit, pre-mounted and ready for connection in polycarbonate housing (IP66)
• Arresting capacity to 40 kA (8/20) per pole through high-performance varistors

Application: Equipotential bonding in main and sub-distributors.

If there is a danger of condensation forming through wind, ice, temperature or sunlight, further measures may be necessary!
  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • EurAsian Conformity
  • Protection device to DIN EN 61643-11 or IEC 61643-11
  • Transition from LPZ 1 to LPZ 2
  • Halogen-free; without chlorine, fluorine and bromine
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

Technical data

Network formOther
Signalling on deviceVisual
Protection ratingIP66
Maximum continuous voltage (L-N)280 V
Maximum continuous voltage (N-PE)255 V
Nominal discharge current (8/20 µs) [L-N]20 kA
Nominal discharge current (8/20 µs) [N-PE]40 kA
Maximum discharge current (8/20 μs) [L-N]40 kA
Remote signallingno
Test class, type 2yes
Nominal voltage AC (50/60 Hz)230 V
Integrated back-up fuseno
Protection level [L-N]≤1,3
Maximum continuous voltage AC280 V
Maximum continuous voltage DC350 V
Nominal discharge current (8/20 µs)20 kA
Pole version1+N/PE
Installation typePre-mounted in the housing
Max. mains-side overcurrent protection160 A gL/gG
Residual voltage [L-N] @ 5 kA0,9 kV
Short-circuit resistance for max. mains-side overcurrent protection50 kA eff
Residual voltage [L-N] @ 1 kA0,7 kV
TOV voltage [L-N] ‒ withstand mode ‒ 5 s335 V
TOV voltage [L-N] ‒ fail safe mode ‒ 120 min.440 V
TOV voltage [N-PE] ‒ withstand mode ‒ 200 ms1200 V
SPD to UL 1449Type 4
Minimum distance1,5 mm
ApprovalsUL, ÖVE
Conductor cross-section, flexible (fine-wire), max.2 AWG
Short-circuit resistantyes
Operating temperature, max.80 °C
Operating temperature, min.-40 °C
Torque4 Nm
SPD to IEC 61643-1Class II
SPD to EN 61643-11Type 2
Maximum discharge current (8/20 μs)40 kA
Follow current quenching capacity (eff) [N-PE]0,1 kA
Response time<25 ns
Maximum back-up fuse160 A
Permitted temperature range, max.80 °C
Permitted temperature range, min.-40 °C

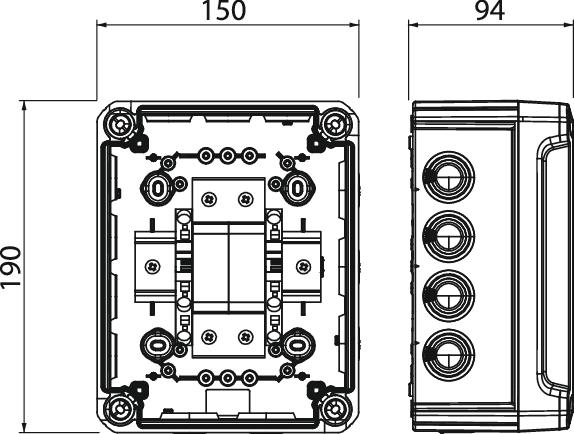

Dimension280V
CO2 Footprint (GWP) Cradle-to-Gate3,509 kg CO2e / 1 Piece

Connectivity options

Conductor cross-section, flexible (fine-wire), max.35 mm²
Conductor cross-section, flexible (fine-wire), min.1,5 mm²
Connection cross-section, FM terminals, max.1,5 mm²
Connection cross-section, FM terminals, min.0,5 mm²
Connection cross-section, FM terminals, max.16 AWG
Connection cross-section, FM terminals, min.21 AWG
Arrester surge current (8/20 µs) [total]60 kA
Conductor cross-section, rigid (single-wire/multiwire), min.1,5 mm²
Conductor cross-section, rigid (single-wire/multiwire), max.2 AWG
Conductor cross-section, rigid (single-wire/multiwire), min.16 AWG
