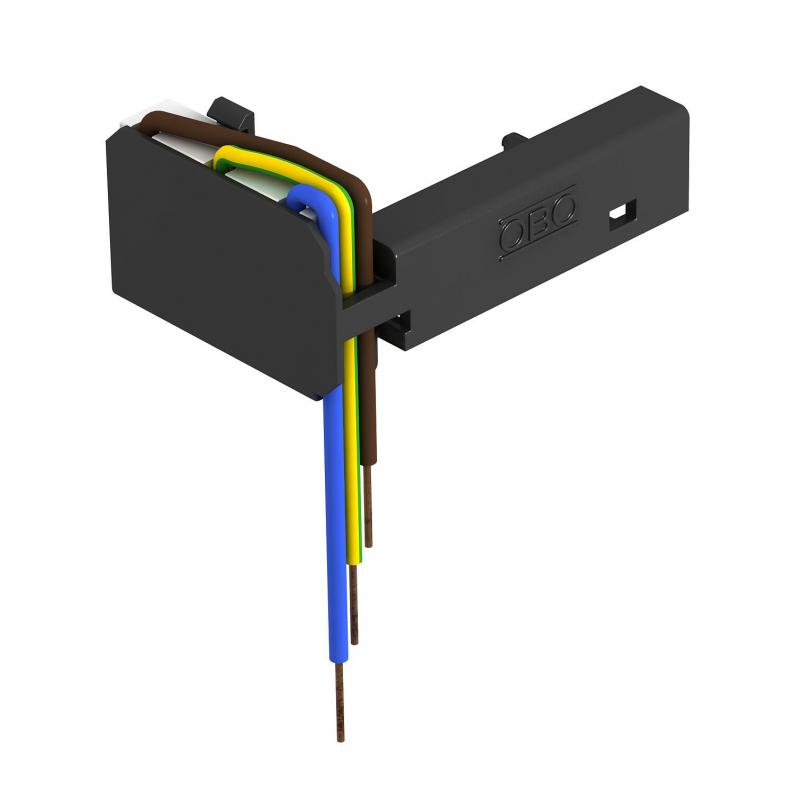

Surge protection module with support for Modul 45connect

Surge protection module with support for Modul 45connect

Type ÜSM-A-4T | Item no. 6107801 | EAN 4012195699767

Show all variants
Item no. / Type
6107801 / ÜSM-A-4T

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

2-pin surge protection module, 16 A/250 V~, with acoustic default display, no network switch-off, for connection to a multiple socket of type Modul 45connect using the supplied support. For installation in universal supports UT3/45 and UT4/45. The surge protection module meets EN 61643-11, type 3, Class III, requirements Class D.
Suitable for installation in underfloor systems in connection with an MT3 / MT4 module support.
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.

  • Russia, GOST The State Committee for Standards
  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Installation electrotechnical expertise
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

Technical data

Signalling on deviceAcoustic
Maximum continuous voltage AC255 V
SPD to EN 61643-11Type 3
CO2 Footprint (GWP) Cradle-to-Gate0,0512 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Declarations (3)
Certificates (1)
Instructions and Aid (3)
Product images (2)
Tender specifications (2)

Variants

ÜSM-A-4T
Item no.
6107801
Maximum continuous voltage AC
255
