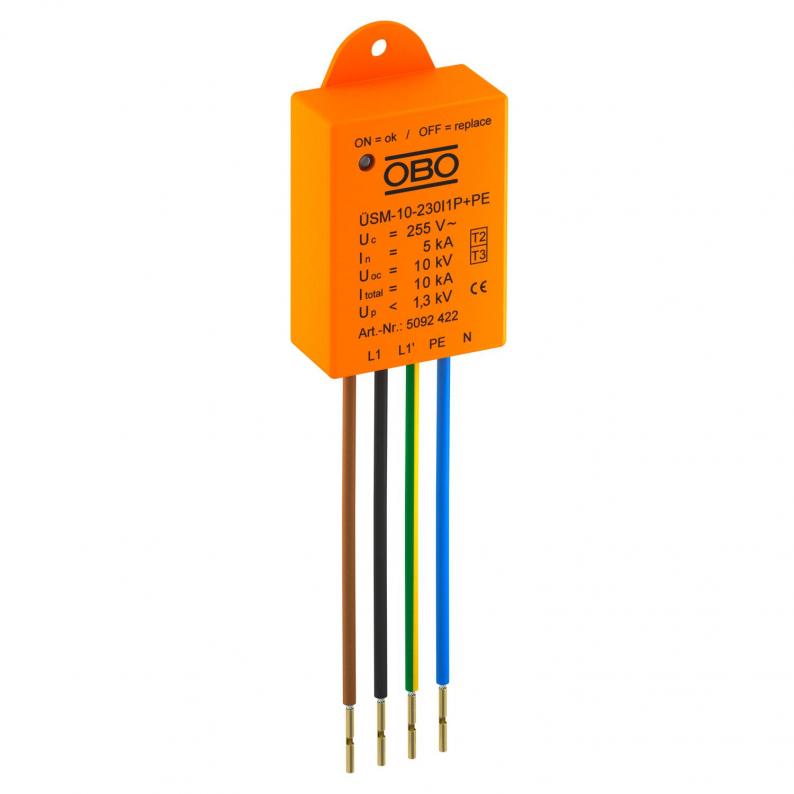

Surge protection module ÜSM 10
Type ÜSM-10-230I1PE25 | Item no. 5092440 | EAN 4012196560844
Item no. / Type
5092440 / ÜSM-10-230I1PE25
Protection rating
IP20
Pole version
1+N/PE
Smallest selling unit: 1 piece
1piece
Description
Surge protection module type 2+3 to DIN EN 61643-11 for 230/400 V power grids.
Appropriate for the protection of LED lighting.
• With function display and switch-off of the load circuit when a SPD fails
• Small size for the installation in the pole connection box or upstream of the LED driver
• 1+NPE protective circuit with a maximum discharge capacity of 10 kA
• Reduction of overvoltage to under 1,00 V or 1,000 V @ 5 kA
• With or without luminaire switch-off in case of defect
Application: In the cable transition box, junction boxes, cable ducts and trunking through to underfloor systems
To protect electronic devices such as LED luminaires against surge voltages
Appropriate for the protection of LED lighting.
• With function display and switch-off of the load circuit when a SPD fails
• Small size for the installation in the pole connection box or upstream of the LED driver
• 1+NPE protective circuit with a maximum discharge capacity of 10 kA
• Reduction of overvoltage to under 1,00 V or 1,000 V @ 5 kA
• With or without luminaire switch-off in case of defect
Application: In the cable transition box, junction boxes, cable ducts and trunking through to underfloor systems
To protect electronic devices such as LED luminaires against surge voltages
Technical data

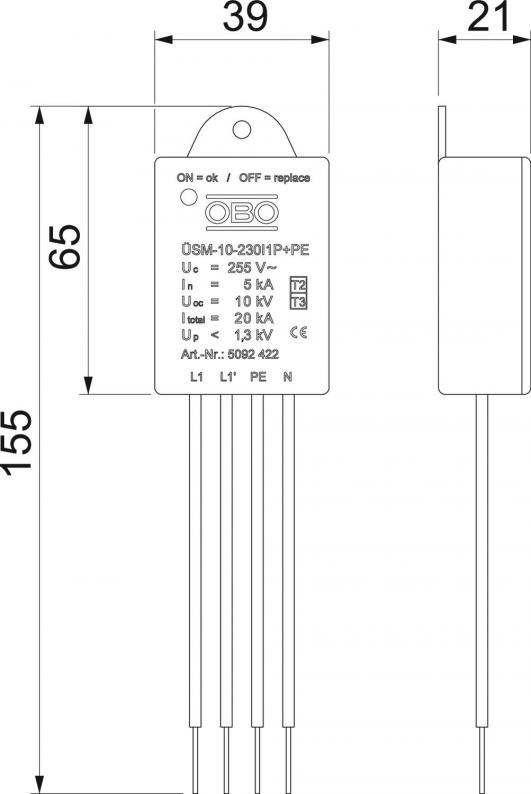

Dimensions
| Length | 315 mm |
|---|---|
| Width | 40 mm |
| Height | 21 mm |
Technical data
| Signalling on device | Visual |
|---|---|
| Protection rating | IP20 |
| Maximum continuous voltage (L-N) | 255 V |
| Maximum continuous voltage (N-PE) | 255 V |
| Nominal discharge current (8/20 µs) [L-N] | 5 kA |
| Nominal discharge current (8/20 µs) [N-PE] | 5 kA |
| Maximum discharge current (8/20 μs) [L-N] | 10 kA |
| Maximum discharge current (8/20 μs) [N-PE] | 10 kA |
| Test class, type 2 | yes |
| Test class, type 3 | yes |
| Nominal voltage AC (50/60 Hz) | 230 V |
| Protection level [L-N] | ≤1500 |
| Maximum continuous voltage AC | 255 V |
| Nominal discharge current (8/20 µs) | 5 kA |
| Pole version | 1+N/PE |
| Installation type | Miscellaneous |
| Max. mains-side overcurrent protection | 16 |
| Version for | 1-pole + NPE for PC I |
| OBO_Nominal load current (input/output terminal) | 16 A |
| Operating temperature, max. | 80 °C |
| Operating temperature, min. | -40 °C |
| Connecting cable length | 0,09 m |
| SPD to IEC 61643-1 | Class II+III |
| SPD to EN 61643-11 | Type 2+3 |
| Lightning protection zone LPZ | 1→2 |
| Maximum discharge current (8/20 μs) | 10 kA |
| Response time | <25 ns |
| Maximum back-up fuse | 16 A |
| Permitted temperature range, max. | 80 °C |
| Permitted temperature range, min. | -40 °C |
| Dimension | 230V |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0436 kg CO2e / 1 Piece |
Connectivity options
| Arrester surge current (8/20 µs) [total] | 10 kA |
|---|---|
| Combined voltage protection level [L-PE] | 1500 kV |
