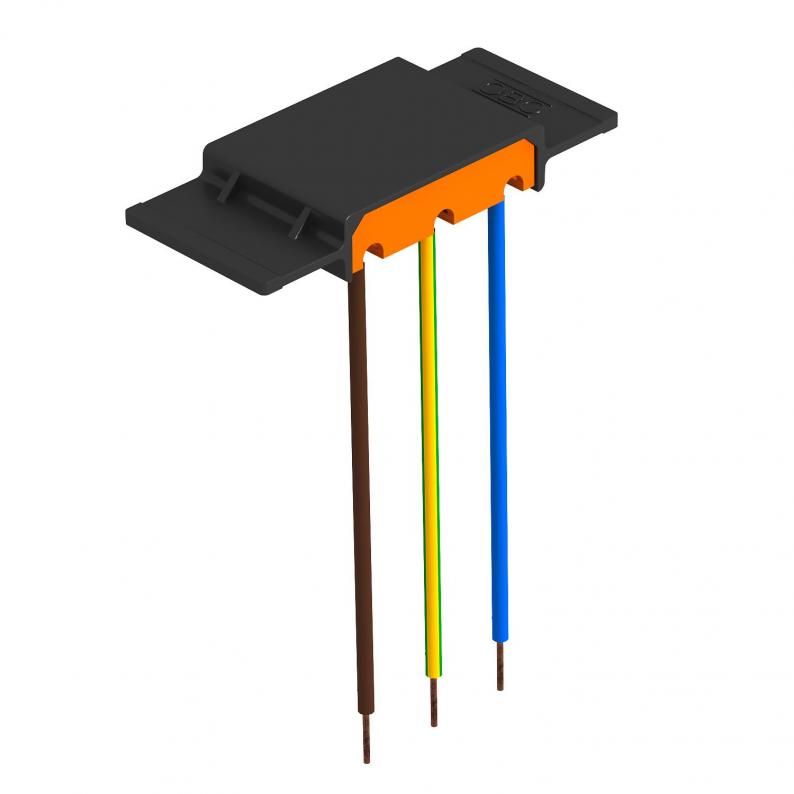

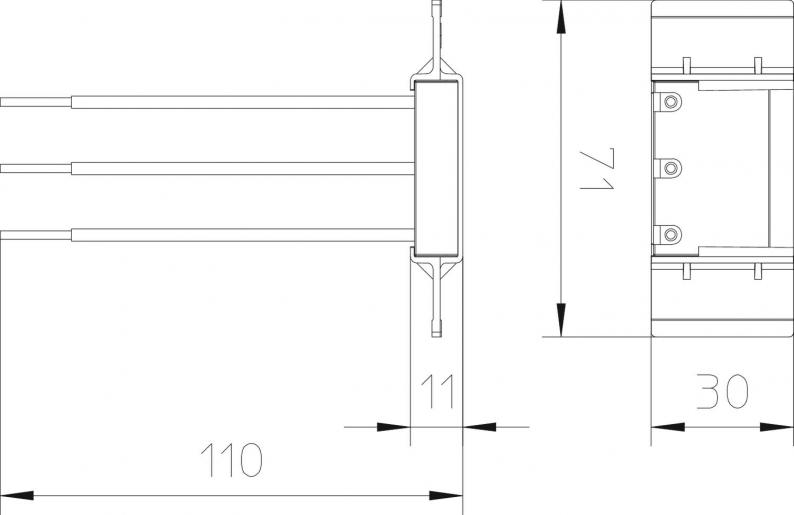

Surge protection module 230 V with holder for GB2 and GB3 mounting boxes

Type ÜSM-A-4 | Item no. 5092472 | EAN 4012195613596

Data sheet (PDF)

Declaration of conformity (PDF)

REACH Declaration of conformity (PDF)

RoHS Declaration of conformity (PDF)

Show all variants

Item no. / Type

5092472 / ÜSM-A-4

Smallest selling unit: 1 piece

Description Technical data Downloads Variants

Description

Surge protection module type 3 to DIN EN 61643-11 for 230 V power grids.

• With acoustic defect signal
• With low construction height and Y circuit
• With halogen-free plastic (UL 94 V-0)
• Holder with separating retainer function for GB2 / GB3 mounting boxes and UT3 and UT4 universal supports

Application: Universally applicable for all installation systems.
2-pin, 16 A/250 V~, with acoustic defect signal.

Technical data

Network form	Other
Signalling on device	Acoustic
Protection level wire-earth	1500 V
Nominal voltage AC (50/60 Hz)	230 V
Protection level [L-N]	≤1500
Maximum continuous voltage AC	255 V
Nominal discharge current (8/20 µs)	3 kA
Pole version	1
Installation type	Miscellaneous
Max. mains-side overcurrent protection	16
Version for	Incl. holder with partition function
OBO_Nominal load current (input/output terminal)	16 A
Operating temperature, max.	60 °C
Operating temperature, min.	-15 °C
SPD to IEC 61643-1	Class III
SPD to EN 61643-11	Type 3
Lightning protection zone LPZ	2→3
Maximum discharge current (8/20 μs)	6 kA
Response time	<25 ns
Maximum back-up fuse	16 A
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-15 °C
Dimension	255V
CO2 Footprint (GWP) Cradle-to-Gate	0,0614 kg CO2e / 1 Piece

Connectivity options

Combined voltage protection level [L-PE]	1500 kV
