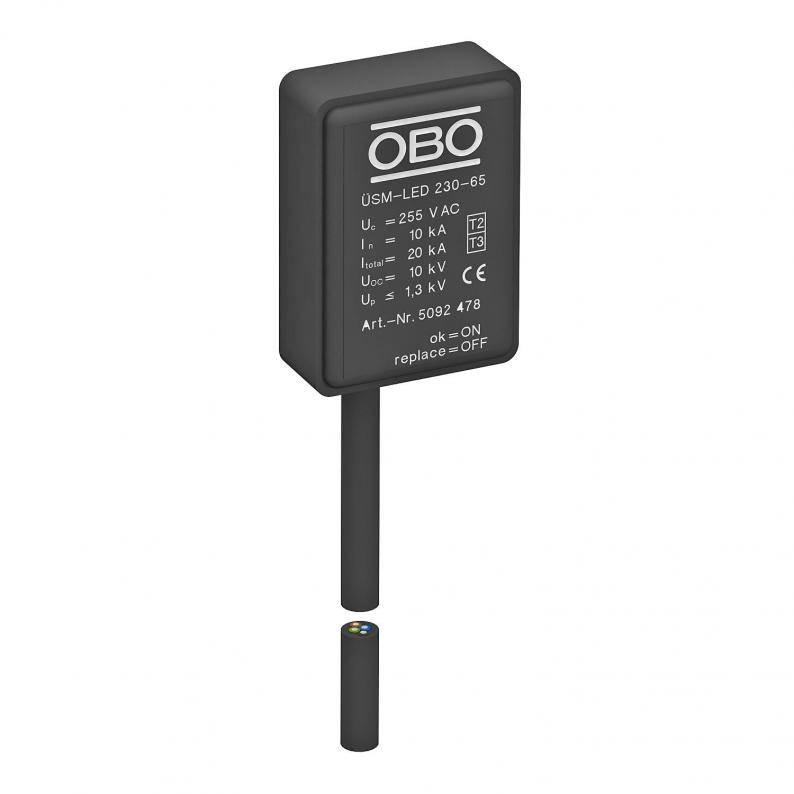

Surge protection for LED systems 230 V IP65
Type ÜSM-LED 230-65
|Item no. 5092478
|EAN 4012196439034
Item no. / Type
5092478 / ÜSM-LED 230-65
Protection rating
IP65
Pole version
1+N/PE
Smallest selling unit: 25 piece
25piece
piece
Description
Surge protection module type 2+3 to DIN EN 61643-11 for 230/400 V power grids.
Appropriate for the protection of LED lighting and the LED driver.
• With visual function display
• Small size for the installation in the mast connection box
• IP65 and with 25 cm connection cable
• 1+NPE protective circuit with a maximum discharge capacity of 20 kA
• Surge limitation under 1,300 V or 1,000 V @ 5 kA
• Available with or without cut-off function of the lamp in case of malfunction
Application: Universally deployable in all lighting systems
To protect electronic devices such as LED luminaires against surge voltages
Appropriate for the protection of LED lighting and the LED driver.
• With visual function display
• Small size for the installation in the mast connection box
• IP65 and with 25 cm connection cable
• 1+NPE protective circuit with a maximum discharge capacity of 20 kA
• Surge limitation under 1,300 V or 1,000 V @ 5 kA
• Available with or without cut-off function of the lamp in case of malfunction
Application: Universally deployable in all lighting systems
To protect electronic devices such as LED luminaires against surge voltages
Technical data
Technical data
| Network form | Other |
|---|---|
| Signalling on device | Visual |
| Protection rating | IP65 |
| Maximum continuous voltage (L-N) | 255 V |
| Maximum continuous voltage (N-PE) | 255 V |
| Nominal discharge current (8/20 µs) [L-N] | 10 kA |
| Nominal discharge current (8/20 µs) [N-PE] | 10 kA |
| Maximum discharge current (8/20 μs) [L-N] | 20 kA |
| Maximum discharge current (8/20 μs) [N-PE] | 20 kA |
| Remote signalling | no |
| Test class, type 2 | yes |
| Test class, type 3 | yes |
| Nominal voltage AC (50/60 Hz) | 230 V |
| Integrated back-up fuse | no |
| Protection level [L-N] | ≤1,3 |
| Maximum continuous voltage AC | 255 V |
| Nominal discharge current (8/20 µs) | 10 kA |
| Pole version | 1+N/PE |
| Installation type | Miscellaneous |
| Max. mains-side overcurrent protection | 16 |
| Version for | 1+NPE |
| Short-circuit resistant | no |
| OBO_Nominal load current (input/output terminal) | 16 A |
| Operating temperature, min. | -40 °C |
| Operating temperature, max. | 80 °C |
| Connecting cable length | 0,25 m |
| SPD to IEC 61643-1 | Class II+III |
| SPD to EN 61643-11 | Type 2+3 |
| Lightning protection zone LPZ | 2→3 |
| Maximum discharge current (8/20 μs) | 20 kA |
| Response time | <25 ns |
| Maximum back-up fuse | 16 A |
| Permitted temperature range, min. | -40 °C |
| Permitted temperature range, max. | 80 °C |

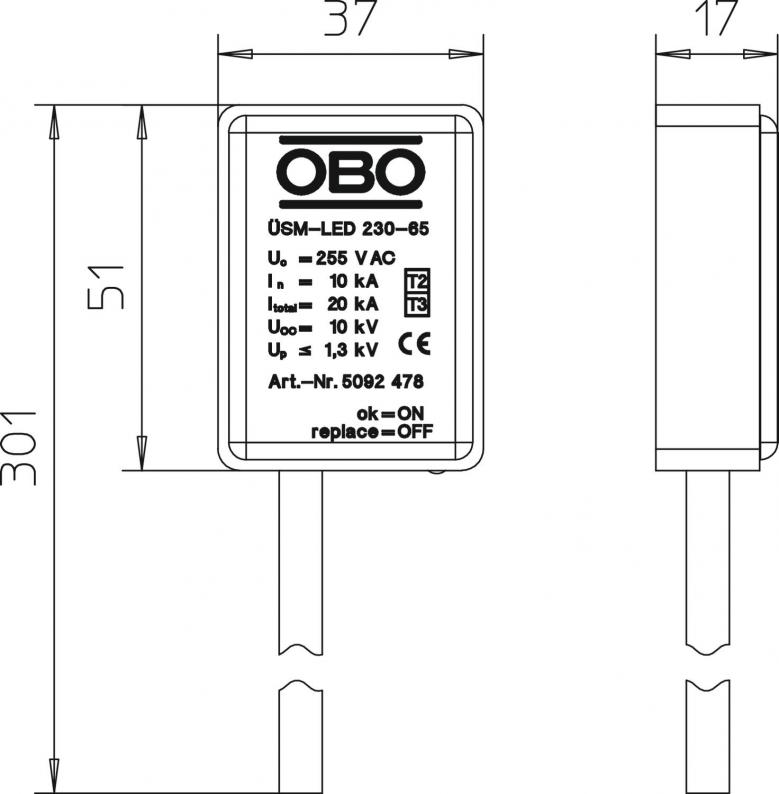

| Dimension | 230V |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0131 kg CO2e / 1 Piece |
