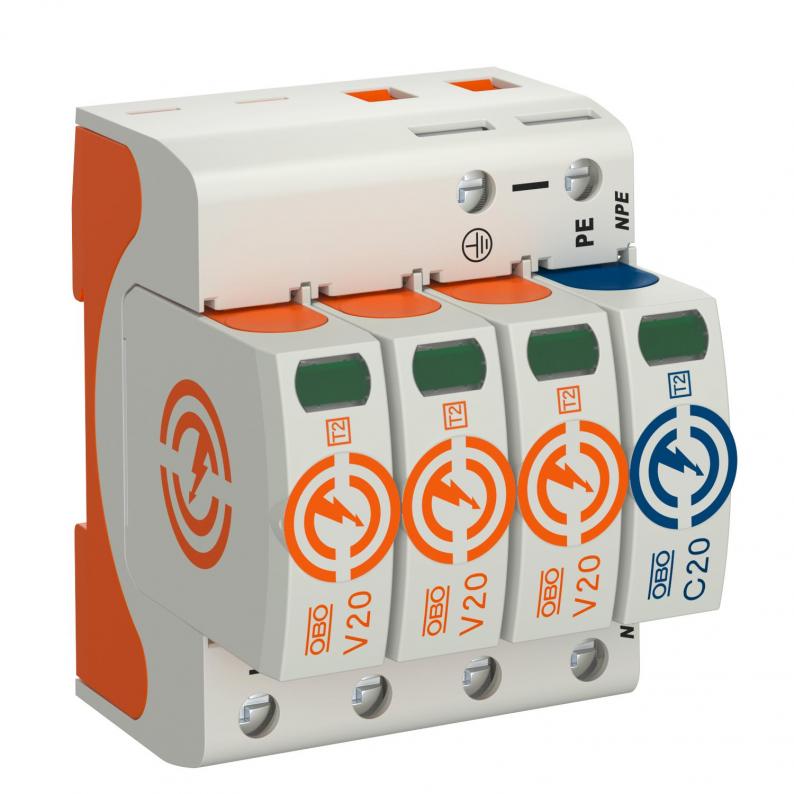

Surge arrester V20, 3-pole + NPE, 280 V

Surge arrester V20, 3-pole + NPE, 280 V

Type V20-3+NPE-280
|
Item no. 5095253
|
EAN 4012196161331
Show all variants
Item no. / Type
Maximum continuous voltage AC
Pole version
Protection rating
IP20

Smallest selling unit: 1 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

Surge arrester, type 2


• For surge voltage protection equipotential bonding to VDE 0100-443 (IEC 60364-4-44)

• Discharge capacity to 40 kA (8/20) per pole through high-performance varistors

• Modular connectable arrester with cut-off unit and visual status display

• Locking mechanism with vibration protection and voltage keying

• Plastic to UL 94 V-0

• The remote signalling variants (FS) have a potential-free changeover contact for remote signalling


Application: Equipotential bonding in main and sub-distributions.
  • Underwriters Laboratories Inc., USA + CSA, Canada
  • Österreichischer Verband für Elektrotechnik, Austria
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • KEMA-KEUR, Netherlands
  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • EurAsian Conformity
  • Regulatory Compliance Mark – Declaration of Conformity for Australia/New Zealand
  • Protection device to DIN EN 61643-11 or IEC 61643-11
  • Transition from LPZ 1 to LPZ 2
  • Installation electrotechnical expertise
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

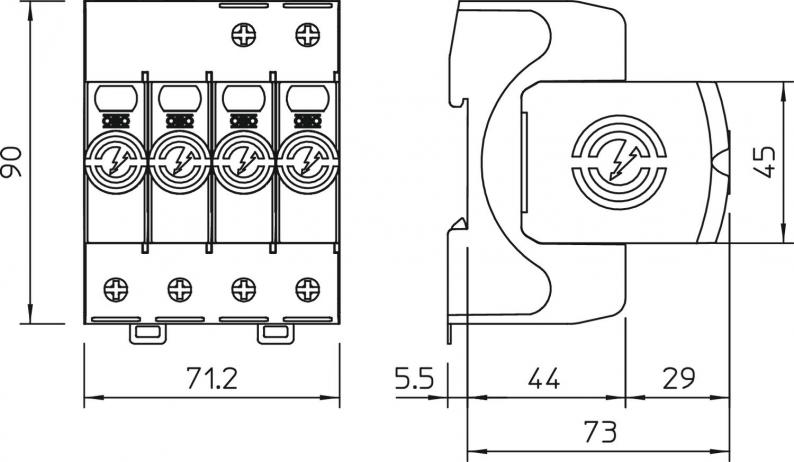

Dimensions

Length78,5 mm
Width71,2 mm
Height90 mm

Materials and Packaging

Packaging made completely from recycled cardboard.yes
Packaging without plasticyes

Technical data

Pole number4
Network formOther
Blow-outno
Signalling on deviceVisual
Protection ratingIP20
Maximum continuous voltage (L-N)280 V
Maximum continuous voltage (N-PE)255 V
Nominal discharge current (8/20 µs) [L-N]20 kA
Nominal discharge current (8/20 µs) [N-PE]40 kA
Housing material surge protection componentsPA UL 94 V-0
Maximum discharge current (8/20 μs) [L-N]40 kA
Maximum discharge current (8/20 μs) [N-PE]60 kA
Remote signallingno
Test class, type 2yes
Nominal voltage AC (50/60 Hz)230 V
Integrated back-up fuseno
Protection level [L-N]≤1,3
Maximum continuous voltage AC280 V
Nominal discharge current (8/20 µs)20 kA
Pole version3+N/PE
Installation typeDIN rail 35 mm
Max. mains-side overcurrent protection160 A gL/gG
Residual voltage [L-N] @ 5 kA1 kV
Short-circuit resistance for max. mains-side overcurrent protection50 kA eff
Residual voltage [L-N] @ 1 kA0,8 kV
TOV voltage [L-N] ‒ withstand mode ‒ 5 s335 V
TOV voltage [L-N] ‒ fail safe mode ‒ 120 min.440 V
TOV voltage [N-PE] ‒ withstand mode ‒ 200 ms1200 V
SPD to UL 1449Type 4
Minimum distance1,5 mm
ApprovalsVDE, KEMA, UL, ÖVE
Short-circuit resistantyes
TN network formyes
TN-C-S network formyes
TN-S network formyes
TT network formyes
Operating temperature, min.-40 °C
Operating temperature, max.80 °C
Torque4 Nm
SPD to IEC 61643-1Class II
SPD to EN 61643-11Type 2
Maximum discharge current (8/20 μs)40 kA
Follow current quenching capacity (eff) [N-PE]0,1 kA
Response time<25 ns
Maximum back-up fuse160 A
Permitted temperature range, min.-40 °C
Permitted temperature range, max.80 °C
Dimension280V
Humidity, max.95 %
Humidity, min.5 %

Connectivity options

Conductor cross-section, flexible (fine-wire), min.1,5 mm²
Conductor cross-section, flexible (fine-wire), max.35 mm²
Arrester surge current (8/20 µs) [total]60 kA
Conductor cross-section, flexible (fine-wire), min.16 AWG
Conductor cross-section, flexible (fine-wire), max.2 AWG
Conductor cross-section, rigid (single-wire/multiwire), min.1,5 mm²
Conductor cross-section, rigid (single-wire/multiwire), max.35 mm²
Conductor cross-section, rigid (single-wire/multiwire), min.16 AWG
Conductor cross-section, rigid (single-wire/multiwire), max.2 AWG
Combined voltage protection level [L-PE]1,5 kV

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate1,7718 kg CO2e / 1 Piece
