Strain relief for Modul 45® sockets 0°
Type ZL-STD 0 | Item no. 6120782 | EAN 4012196333578
Item no. / Type
6120782 / ZL-STD 0
Smallest selling unit: 1 piece
1piece
Description

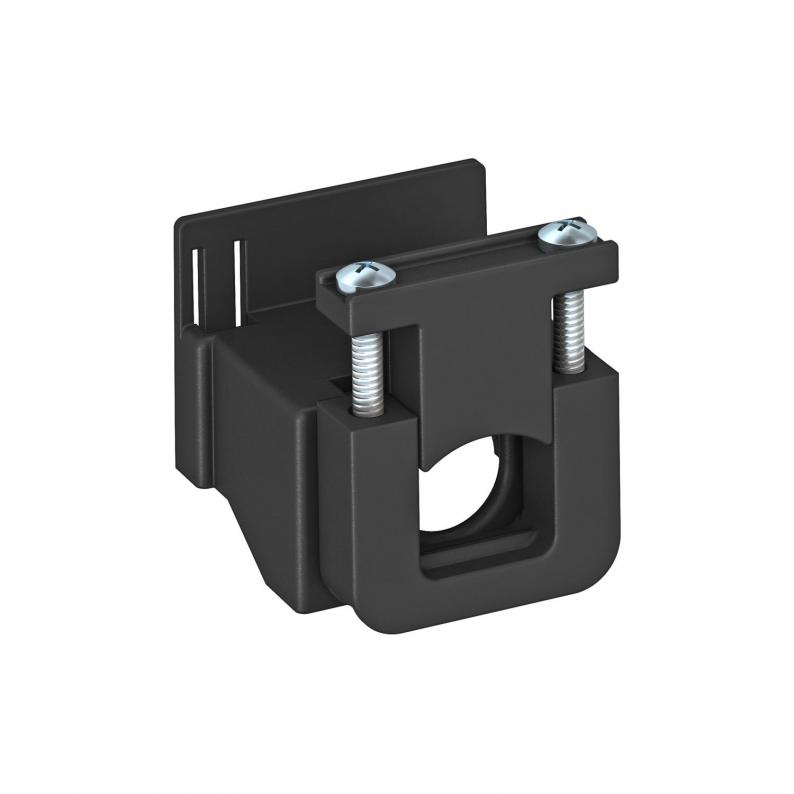

Strain relief for Modul 45 sockets, type STD, connectable at side, for the fastening of a 3-core cable, max. Ø 10 mm, suitable for protective contact sockets at direction of insertion 0° and sockets with earthing pin at direction of insertion 0°.
Technical data
Technical data
| Nominal voltage | 250 V |
|---|---|
| Surface version | Matt |
| Material | Polycarbonate |
| Colour | Black |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1158 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Variants
Type
Item no.
ZL-STD 0
6120782
ZL-STD 0
Item no.
6120782
