Straight connector FS
Type RLVK 60 FS | Item no. 6067093 | EAN 4012196065417
Item no. / Type
6067093 / RLVK 60 FS
Colour
zinc
Smallest selling unit: 10 piece
10piece
Description

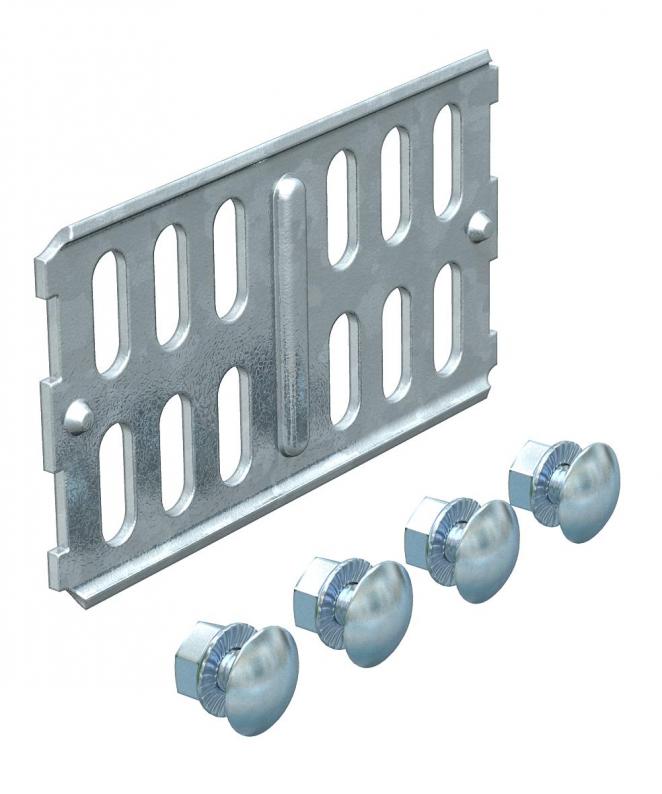

Straight connector for straight connection of cable trays and fittings with a side height of 60 mm.
Including appropriate fastening material.
Technical data
Dimensions
| Length | 100 mm |
|---|---|
| Width | 3,5 mm |
| Height | 56 mm |
Technical data
| Maintain electrical functions | yes |
|---|---|
| Rustproof steel, pickled | no |
| Plate thickness | 2 mm |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | no |
| Dimension | 200 x 56 |
| Suitable for cable tray system height | 60 mm |
| Version for | Straight connector |
| Connection type | Screw connector |
| Dimension | 60x100 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,2749 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Certificates (2)
Instructions and Aid (5)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Width
Height
Plate thickness
Colour
Item no.
RLVK 60 FS
3,5
56
2
zinc
6067093
RLVK 60 FS
Item no.
6067093
Width
3,5
Height
56
Plate thickness
2
Colour
zinc
