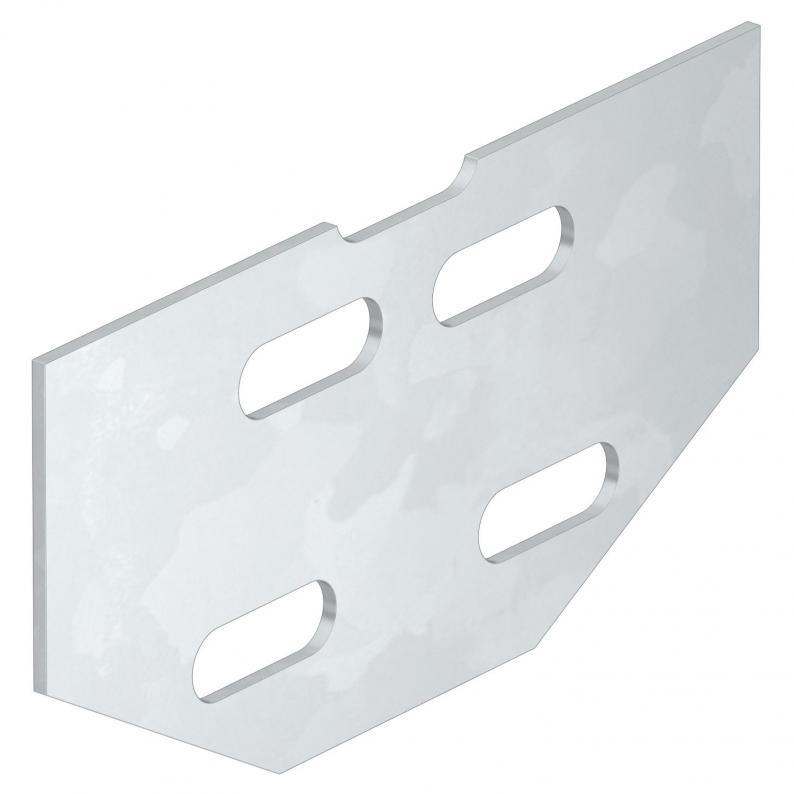

Straight connector 60 FS, vertical
Type RLVKV 60 FS | Item no. 6067101 | EAN 4012196456154
Item no. / Type
6067101 / RLVKV 60 FS
This item is a discontinued product!
Smallest selling unit: 10 piece
10piece
Description
The vertical straight connector can be used to connect cable trays with the side height 60 mm. Mitre joints that rise and fall up to an angle of 60° can also be realised with this connector.
The screw fastening ensures the continuity of the equipotential bonding.
Technical data

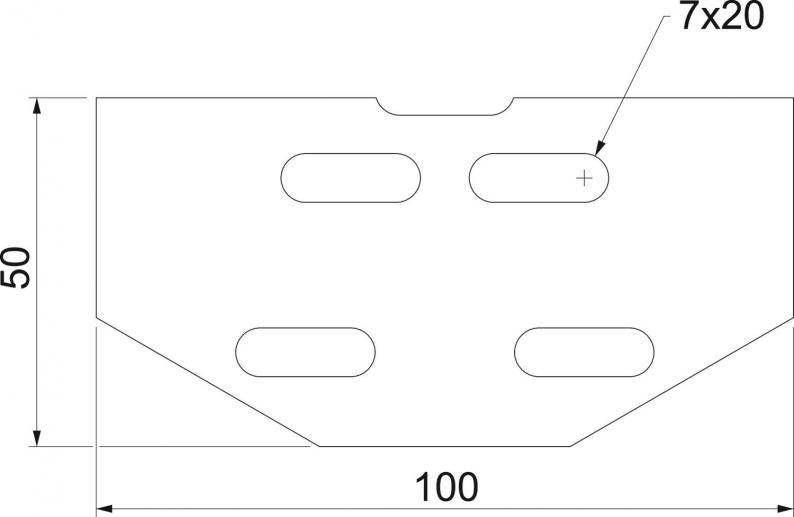

Dimensions
| Length | 100 mm |
|---|---|
| Width | 1,5 mm |
| Height | 50 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Plate thickness | 1,5 mm |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | yes |
| Suitable for cable tray system height | 60 mm |
| Version for | Straight connector |
| Connection type | Screw connector |
| Dimension | 100x50 |
| Surface | Strip galvanized |
| Material | Steel |
