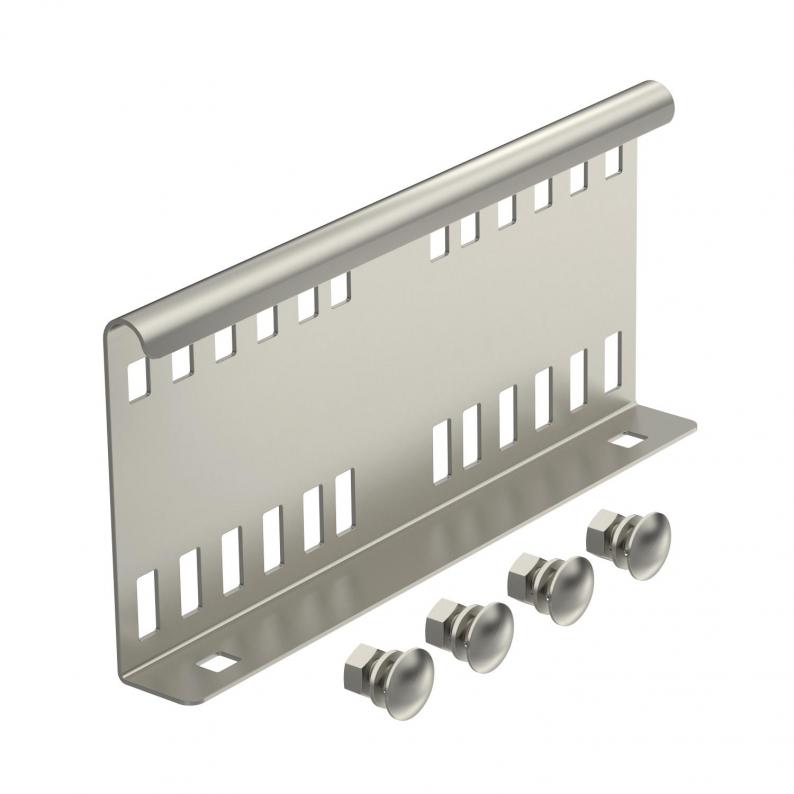

Straight connector 110 A2
Type LVG 110 A2 | Item no. 6216550 | EAN 4012195623885
Item no. / Type
6216550 / LVG 110 A2
Surface
Bright, treated
Material
Stainless steel 1.4301
Smallest selling unit: 10 piece
10piece
Description
Straight connector as external connector to connect cable ladders and fittings with a side height of 110 mm.
The bolt fastening ensures the continuity of the equipotential bonding.
Technical data
Dimensions
| Length | 250 mm |
|---|---|
| Width | 28 mm |
| Height | 110 mm |
Technical data
| Rustproof steel, pickled | no |
|---|---|
| Plate thickness | 1,5 mm |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | yes |
| Suitable for cable tray | no |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | no |
| Dimension | 114x250 |
| Suitable for cable tray system height | 110 mm |
| Version for | Straight connector |
| Connection type | Screw connector |
| Dimension | 114x250 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 2,9739 kg CO2e / 1 Piece |
