Straight and angle connector FS

Straight and angle connector FS

Type WRWVK 160 FS
|
Item no. 6227832
|
EAN 4012195767701
Show all variants
Item no. / Type
6227832 / WRWVK 160 FS
Height
160 mm
Plate thickness
2,5 mm

Smallest selling unit: 2 piece

piece

Description

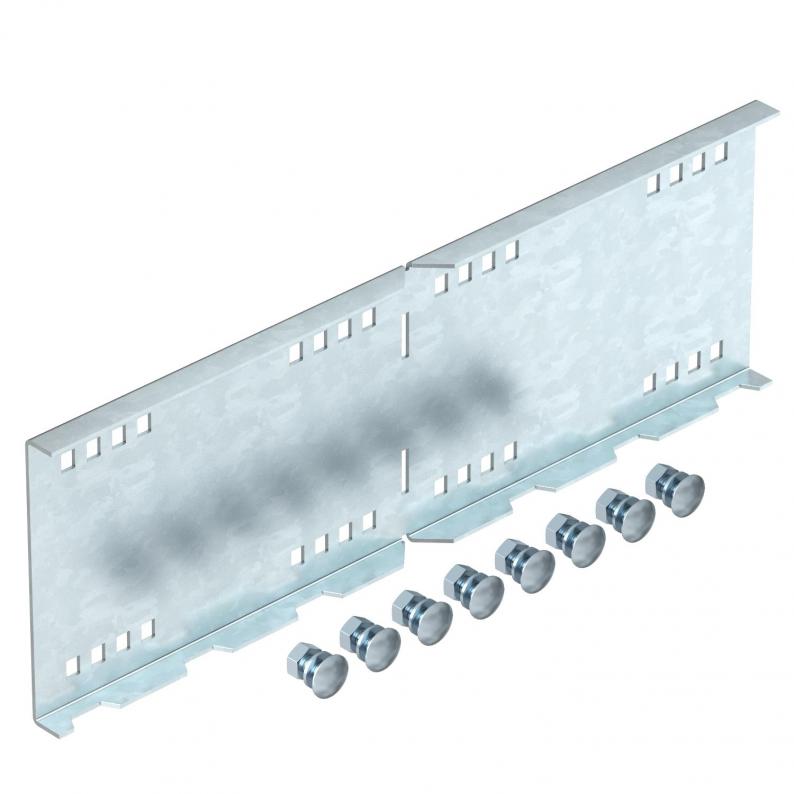

Angle connector for wide span cable trays and ladders with a side height of 160 mm.

Including appropriate bolts, washers and nuts.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Wide span cable tray, side height, 160 mm
  • Wide span cable ladder, side height 160 mm
  • CO₂ footprint (PCF)

Technical data

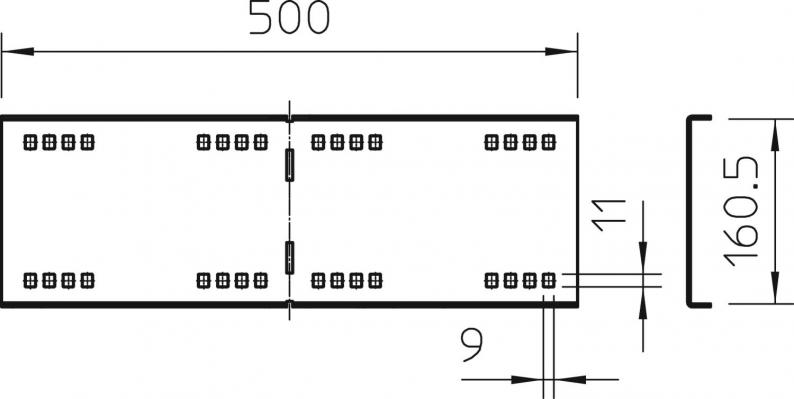

Dimensions

Length500 mm
Width20 mm
Height160 mm

Technical data

Maintain electrical functionsno
Rustproof steel, pickledno
Plate thickness2,5 mm
Suitable for mesh cable trayno
Suitable for cable ladderyes
Suitable for cable trayyes
Adjustable connector, horizontalno
Articulated connector, verticalno
Suitable for cable tray system height160 mm
Version forAngle connector
Connection typeScrew connector
Dimension160x500
SurfaceStrip galvanized
MaterialSteel
Colourzinc

Environmental Data

5,4958 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate5,4958 kg CO2e / 1 Piece
