Straight and angle connector 60 FT
Type WKV 60 FT | Item no. 6042910 | EAN 4012196990382
Item no. / Type
6042910 / WKV 60 FT
Smallest selling unit: 5 piece
5piece
Description

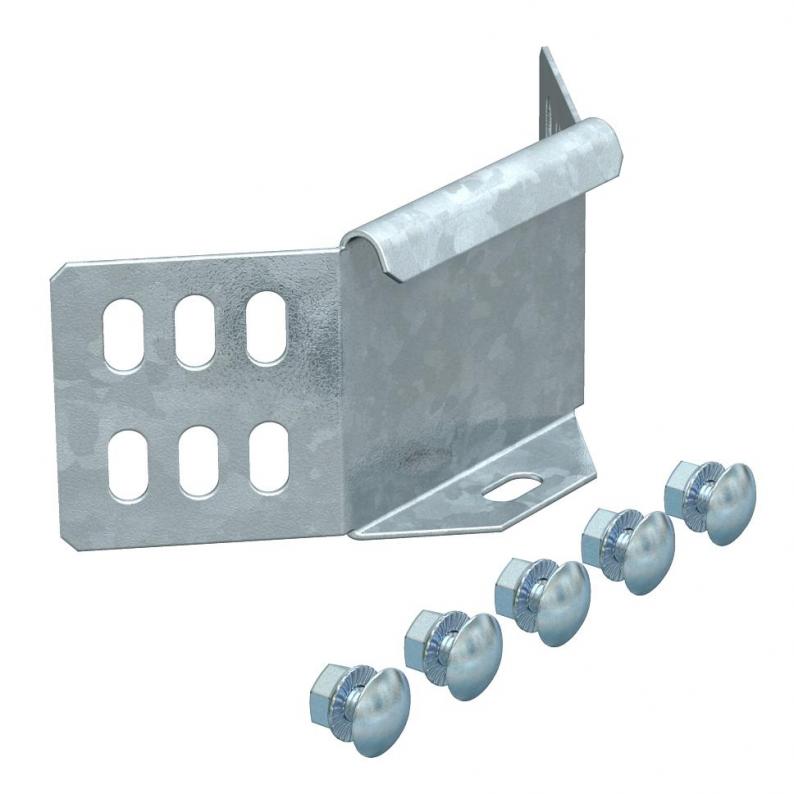

Angle connector for cable trays with a side height of 60 mm.
Including appropriate fastening material.
Technical data

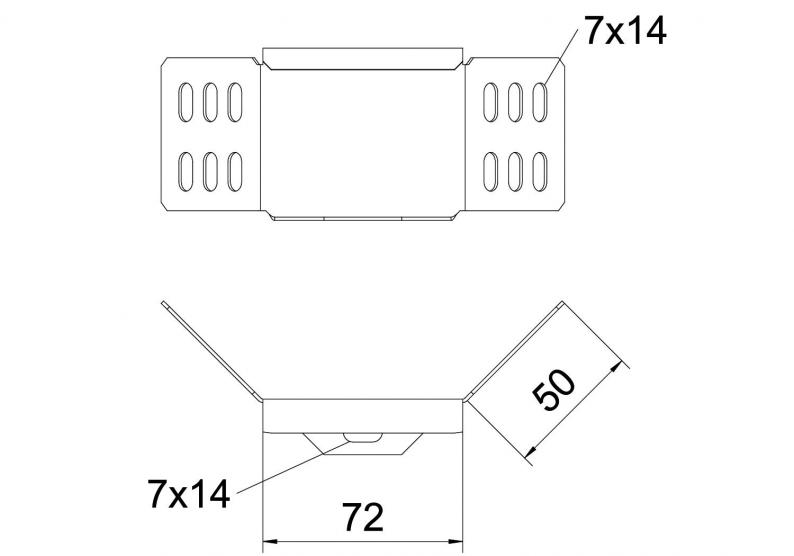

Dimensions
| Length | 72 mm |
|---|---|
| Width | 50 mm |
| Height | 62 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Plate thickness | 1,25 mm |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | no |
| Suitable for cable tray system height | 60 mm |
| Version for | Angle connector |
| Connection type | Screw connector |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,4493 kg CO2e / 1 Piece |
