Stand – TrayFix set 16 S
Type TrayFix-16-S | Item no. 5403099 | EAN 4012196098620
Item no. / Type
5403099 / TrayFix-16-S
Smallest selling unit: 1 piece
1piece
Description
• Mounting system for the fastening of mesh cable trays with the FangFix base, e.g. for cable routing on a flat roof.
• Matches OBO mesh cable tray systems with a minimum width of 100 mm

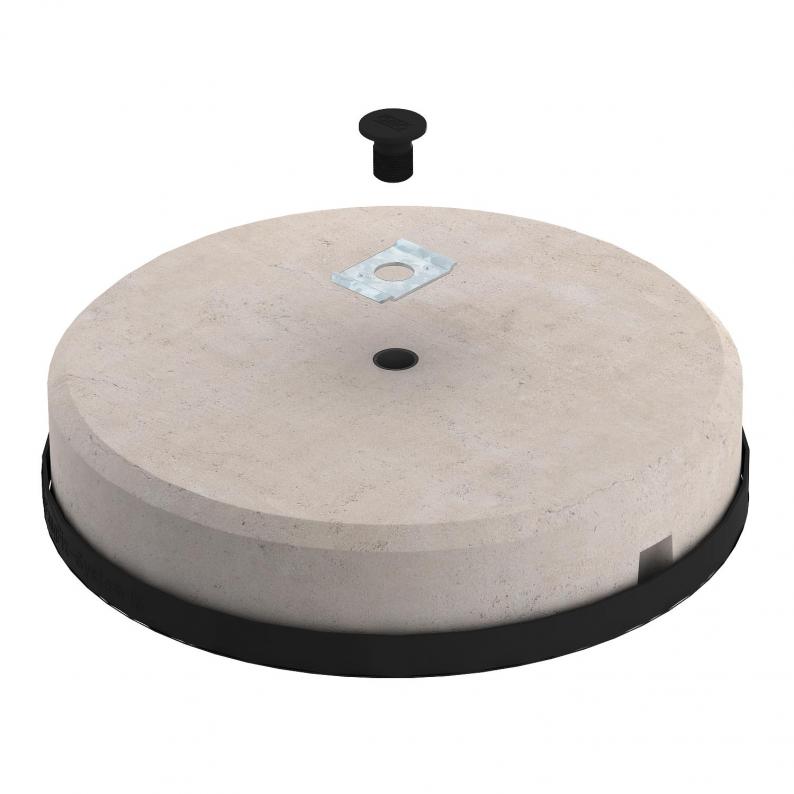

• Set consisting of TrayFix mounting adapter and concrete block incl. base for FangFix system 16 kg
• Matches OBO mesh cable tray systems with a minimum width of 100 mm
• Set consisting of TrayFix mounting adapter and concrete block incl. base for FangFix system 16 kg
Technical data
Technical data
| From tray width | 100 mm |
|---|---|

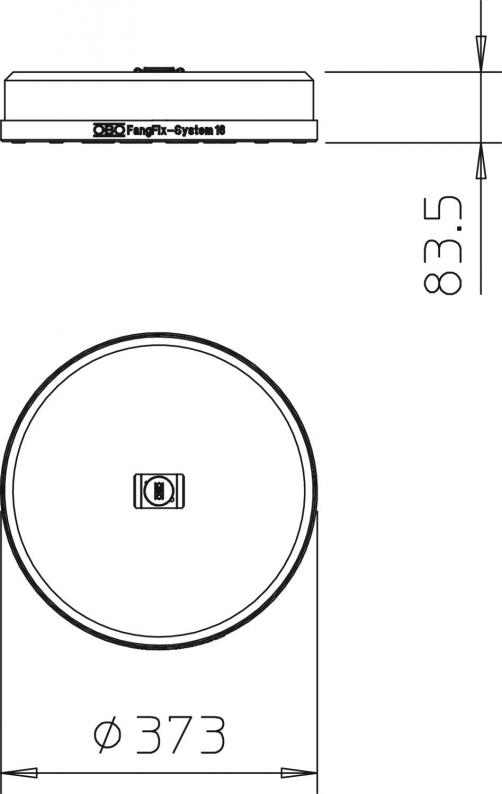

| Dimension | 373x373x84 |
| CO2 Footprint (GWP) Cradle-to-Gate | 4,8859 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Item no.
TrayFix-16-S
5403099
TrayFix-16-S
Item no.
5403099
