Stand - TrayFix set 16 L
Type TrayFix-16-L | Item no. 5403098 | EAN 4012196098613
Item no. / Type
5403098 / TrayFix-16-L
Smallest selling unit: 1 piece
1piece
Description
• Fastening system for the mounting of cable trays and mesh cable trays with the FangFix block, e.g. for cable routing on flat roofs
• Matches OBO cable tray systems MKSM and SKSM
• Matches OBO mesh cable tray systems with a minimum width of 100 mm

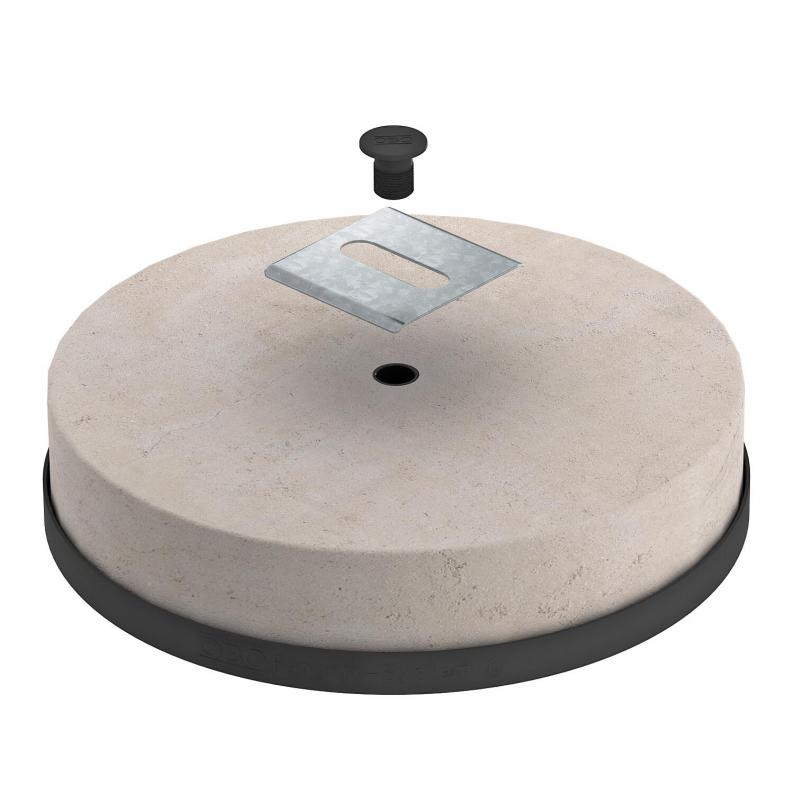

• Set consisting of TrayFix fastening and concrete block incl. base for FangFix system 16 kg
• Matches OBO cable tray systems MKSM and SKSM
• Matches OBO mesh cable tray systems with a minimum width of 100 mm
• Set consisting of TrayFix fastening and concrete block incl. base for FangFix system 16 kg
Technical data

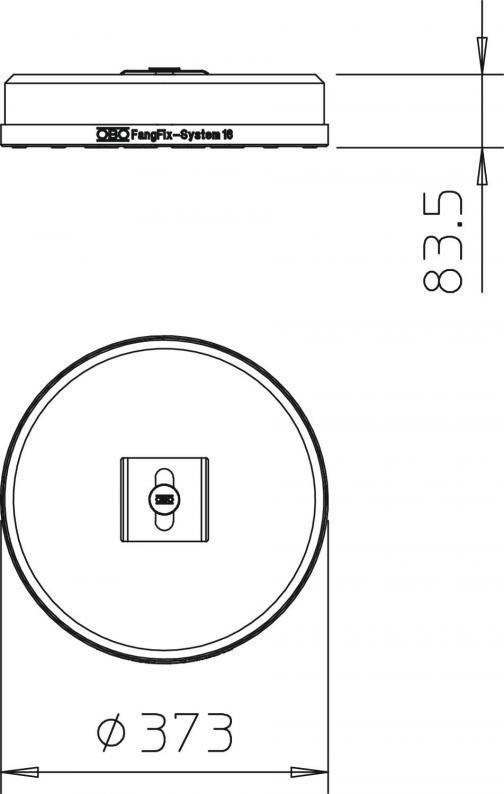

Dimensions
| Height | 83,5 mm |
|---|
Technical data
| From tray width | 100 mm |
|---|---|
| Dimension | 373x373x84 |
| CO2 Footprint (GWP) Cradle-to-Gate | 5,5414 kg CO2e / 1 Piece |
