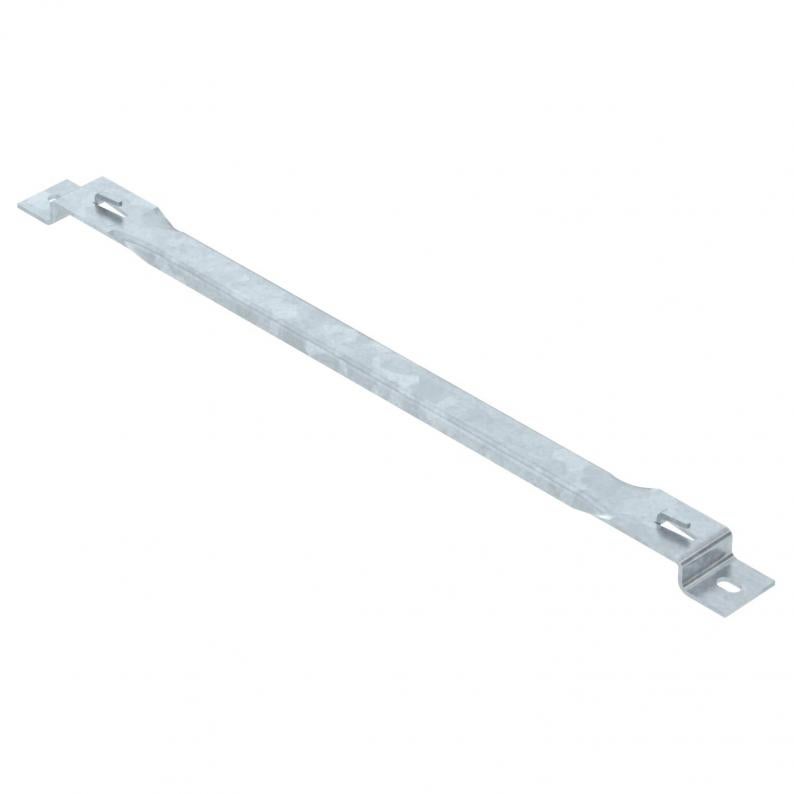

Stand-off bracket FT
Type DBLG 20 500 FT
|Item no. 6015695
|EAN 4012195239260
Item no. / Type
Smallest selling unit: 25 piece
25piece
piece
Description
Stand-off bracket for stand-off of mesh cable trays on the floor or on the wall.
GRM mesh cable tray types with side heights of 35, 55 and 105 mm can be mounted onto the spacer clamp.
GRM mesh cable tray types with side heights of 35, 55 and 105 mm can be mounted onto the spacer clamp.
Screwless fastening of the mesh cable tray on the stand-off bracket.
Technical data

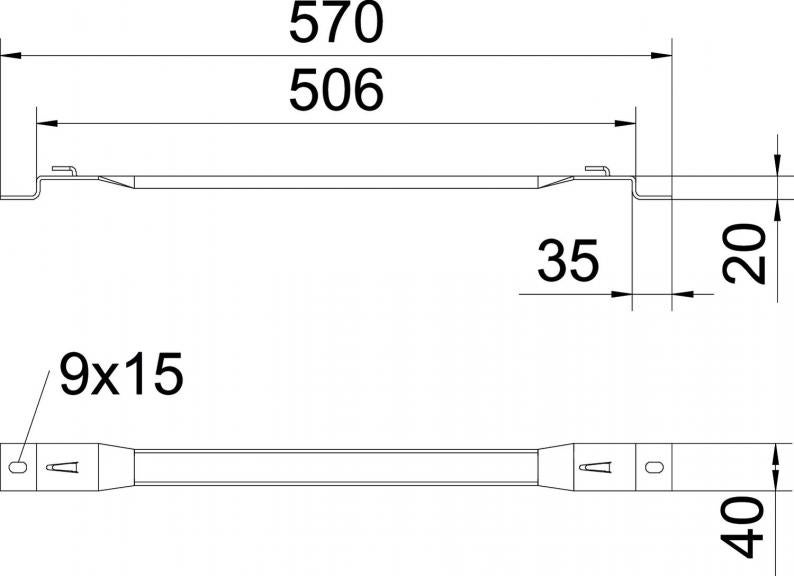

Dimensions
| Length | 40 mm |
|---|---|
| Width | 570 mm |
| Height | 20 mm |
| Dimension L | 40 mm |
| Dimension H | 20 mm |
| Dimension W | 570 mm |
| Maß NW | 506 mm |
Technical data
| Material thickness | 3 mm |
|---|---|
| Suitable for mesh cable tray | yes |
| Suitable for cable ladder | no |
| Suitable for cable tray | no |
| Version for | Wall/ceiling clamp, trapezoidal profile |
| Tray fastening | Retaining lug |
| Dimension | B500mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
Environmental Data
1,2393 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,2393 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 1,2393 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit (LCA) | Units |
| Declared Unit Quantity (LCA) | 1 |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Instructions and Aid (3)
Product images (2)
3D data downloads (2)
Tender specifications (1)
Variants
Type
Tray fastening
Surface
Material
Item no.
DBLG 20 050 FT
Retaining lug
Hot-dip galvanised
Steel
6015648
DBLG 20 100 FT
Retaining lug
Hot-dip galvanised
Steel
6015656
DBLG 20 150 FT
Retaining lug
Hot-dip galvanised
Steel
6015660
DBLG 20 200 FT
Retaining lug
Hot-dip galvanised
Steel
6015664
DBLG 20 300 FT
Retaining lug
Hot-dip galvanised
Steel
6015672
DBLG 20 400 FT
Retaining lug
Hot-dip galvanised
Steel
6015691
DBLG 20 500 FT
Retaining lug
Hot-dip galvanised
Steel
6015695
DBLG 20 600 FT
Retaining lug
Hot-dip galvanised
Steel
6015699
DBLG 20 050 FT
Item no.
6015648
Tray fastening
Retaining lug
Surface
Hot-dip galvanised
Material
Steel
DBLG 20 100 FT
Item no.
6015656
Tray fastening
Retaining lug
Surface
Hot-dip galvanised
Material
Steel
DBLG 20 150 FT
Item no.
6015660
Tray fastening
Retaining lug
Surface
Hot-dip galvanised
Material
Steel
DBLG 20 200 FT
Item no.
6015664
Tray fastening
Retaining lug
Surface
Hot-dip galvanised
Material
Steel
DBLG 20 300 FT
Item no.
6015672
Tray fastening
Retaining lug
Surface
Hot-dip galvanised
Material
Steel
DBLG 20 400 FT
Item no.
6015691
Tray fastening
Retaining lug
Surface
Hot-dip galvanised
Material
Steel
DBLG 20 500 FT
Item no.
6015695
Tray fastening
Retaining lug
Surface
Hot-dip galvanised
Material
Steel
DBLG 20 600 FT
Item no.
6015699
Tray fastening
Retaining lug
Surface
Hot-dip galvanised
Material
Steel
