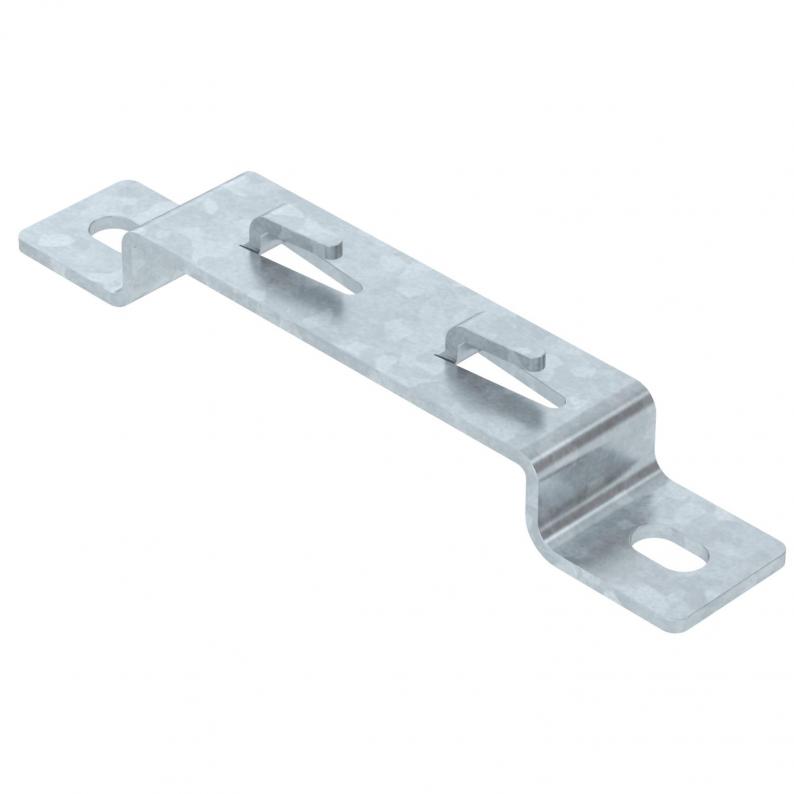

Stand-off bracket FT

Stand-off bracket FT

Type DBLG 20 100 FT
|
Item no. 6015656
|
EAN 4012196042968
Show all variants
Item no. / Type
Dimension B
Tray fastening
Retaining lug
Surface
Hot-dip galvanised
Material
Steel

Smallest selling unit: 20 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

Stand-off bracket for stand-off of mesh cable trays on the floor or on the wall.

GRM mesh cable tray types with side heights of 35, 55 and 105 mm can be mounted onto the spacer clamp.

Screwless fastening of the mesh cable tray on the stand-off bracket.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Mesh cable tray, slant height 35 mm
  • Mesh cable tray, slant height 55 mm
  • Mesh cable tray, slant height 105 mm
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Height20 mm
Dimension L170 mm
Dimension A30 mm
Dimension B106 mm

Technical data

Suitable for mesh cable trayyes
Suitable for cable ladderno
Suitable for cable trayno
Version forWall/ceiling clamp, trapezoidal profile
Tray fasteningRetaining lug
DimensionB100mm
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
CO2 Footprint (GWP) Cradle-to-Gate0,2936 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Instructions and Aid (3)
Product images (2)
3D data downloads (2)
Tender specifications (2)

Variants

Dimension B
DBLG 20 050 FT
Item no.
6015648
Dimension B
56
Tray fastening
Retaining lug
Surface
Hot-dip galvanised
Material
Steel
DBLG 20 100 FT
Item no.
6015656
Dimension B
106
Tray fastening
Retaining lug
Surface
Hot-dip galvanised
Material
Steel
DBLG 20 150 FT
Item no.
6015660
Dimension B
156
Tray fastening
Retaining lug
Surface
Hot-dip galvanised
Material
Steel
DBLG 20 200 FT
Item no.
6015664
Dimension B
206
Tray fastening
Retaining lug
Surface
Hot-dip galvanised
Material
Steel
DBLG 20 300 FT
Item no.
6015672
Dimension B
306
Tray fastening
Retaining lug
Surface
Hot-dip galvanised
Material
Steel
DBLG 20 400 FT
Item no.
6015691
Dimension B
406
Tray fastening
Retaining lug
Surface
Hot-dip galvanised
Material
Steel
DBLG 20 500 FT
Item no.
6015695
Dimension B
506
Tray fastening
Retaining lug
Surface
Hot-dip galvanised
Material
Steel
DBLG 20 600 FT
Item no.
6015699
Dimension B
606
Tray fastening
Retaining lug
Surface
Hot-dip galvanised
Material
Steel
