Stand-off bracket FT

Stand-off bracket FT

Type DBL 50 100 FT
|
Item no. 6015565
|
EAN 4012196785414
Show all variants
Item no. / Type
Dimension B
Tray fastening
Screw-on
Surface
Hot-dip galvanised
Material
Steel

Smallest selling unit: 20 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

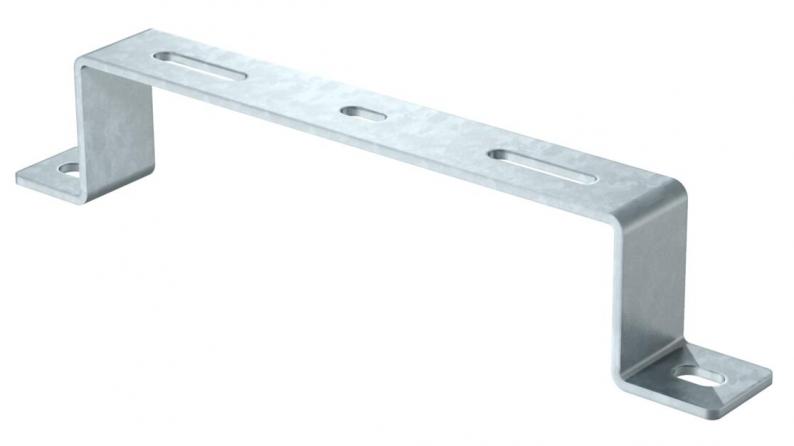

Stand-off bracket for cable trays and mesh cable trays.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Cable tray, side height 35 mm
  • Cable tray, side height 60 mm
  • Cable tray, side height 85 mm
  • Cable tray, side height 110 mm
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Width100 mm
Height50 mm
Dimension A160 mm
Dimension B100 mm
Dimension H50 mm

Technical data

Suitable for mesh cable trayyes
Suitable for cable ladderno
Suitable for cable trayyes
Version forWall/ceiling clamp, trapezoidal profile
Tray fasteningScrew-on
DimensionB100mm
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
CO2 Footprint (GWP) Cradle-to-Gate0,4478 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

Dimension B
DBL 50 100 FT
Item no.
6015565
Dimension B
100
Tray fastening
Screw-on
Surface
Hot-dip galvanised
Material
Steel
DBL 50 150 FT
Item no.
6015573
Dimension B
150
Tray fastening
Screw-on
Surface
Hot-dip galvanised
Material
Steel
DBL 50 200 FT
Item no.
6015581
Dimension B
200
Tray fastening
Screw-on
Surface
Hot-dip galvanised
Material
Steel
DBL 50 300 FT
Item no.
6015603
Dimension B
300
Tray fastening
Screw-on
Surface
Hot-dip galvanised
Material
Steel
DBL 50 400 FT
Item no.
6015611
Dimension B
400
Tray fastening
Screw-on
Surface
Hot-dip galvanised
Material
Steel
DBL 50 500 FT
Item no.
6015614
Dimension B
500
Tray fastening
Screw-on
Surface
Hot-dip galvanised
Material
Steel
DBL 50 600 FT
Item no.
6015617
Dimension B
600
Tray fastening
Screw-on
Surface
Hot-dip galvanised
Material
Steel
