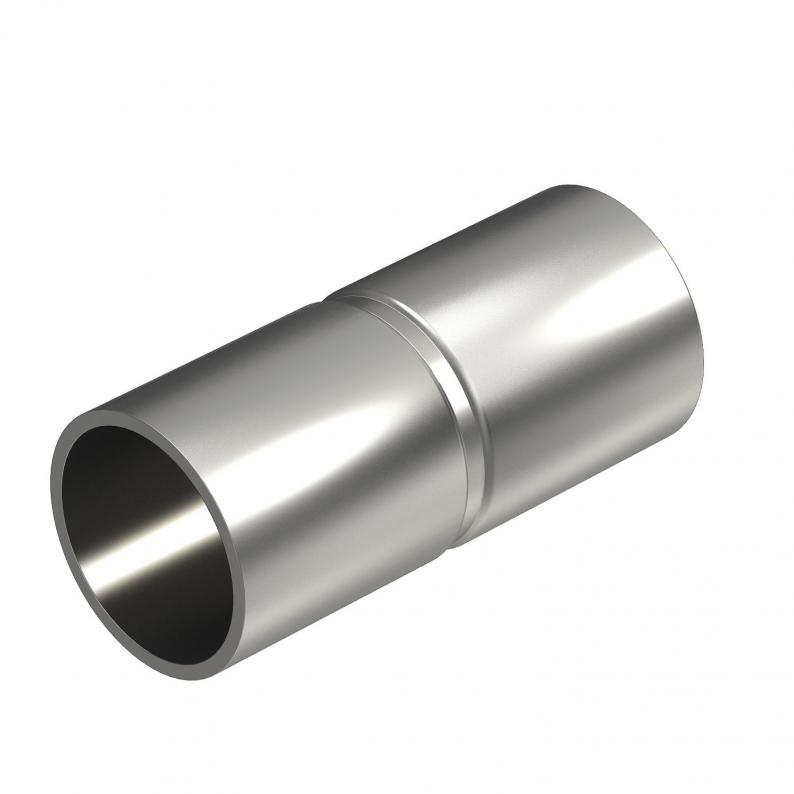

Stainless steel sleeve V4A
Type SV32W A4
|Item no. 2046773
|EAN 4012195924296
Item no. / Type
Dimension d
Dimension D
Smallest selling unit: 15 piece
15piece
piece
Description
Accessory part: plug-in sleeve for the connections between electrical installation pipes. With burr-free inner wall.
Technical data

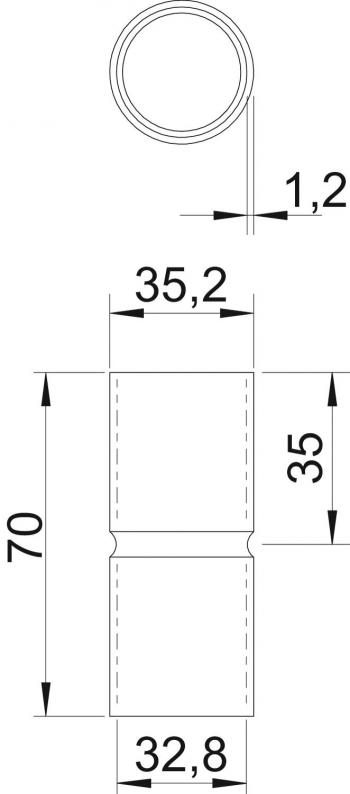

Dimensions
| Length | 70 mm |
|---|---|
| Dimension L | 70 mm |
| Dimension d | 32,2 mm |
| Dimension t | 1,25 mm |
| Dimension m (mm) | M32 |
| Dimension l | 35 mm |
| Dimension D | 34,7 mm |
Technical data
| Halogen-free | yes |
|---|---|
| Size | 32 |
| Polished surface | no |
| Brushed surface | yes |
| for pipe diameter | 32 mm |
| With inspection opening and lid | no |
| Two-part | no |
| Version for | Connector |
| Permitted temperature range, min. | -45 °C |
| Permitted temperature range, max. | 400 °C |
| Dimension | Ø32mm |
| Surface | Bright, treated |
| Material | Stainless steel 1.4571 |
Environmental Data
0,3965 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging without plastic | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,3965 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Product images (3)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Dimension d
Dimension D
Item no.
SV25W A4
25,2
27,2
2046772
SV32W A4
32,2
34,7
2046773
SV50W A4
50,2
52,8
2046775
Dimension d
Dimension D
SV25W A4
Item no.
2046772
Dimension d
25,2
Dimension D
27,2
SV32W A4
Item no.
2046773
Dimension d
32,2
Dimension D
34,7
SV50W A4
Item no.
2046775
Dimension d
50,2
Dimension D
52,8
