Spring element, side height 60 mm
Type FED 60 A2
|Item no. 6068859
|EAN 4012195391326
Item no. / Type
6068859 / FED 60 A2
Smallest selling unit: 50 piece
50piece
piece
Description

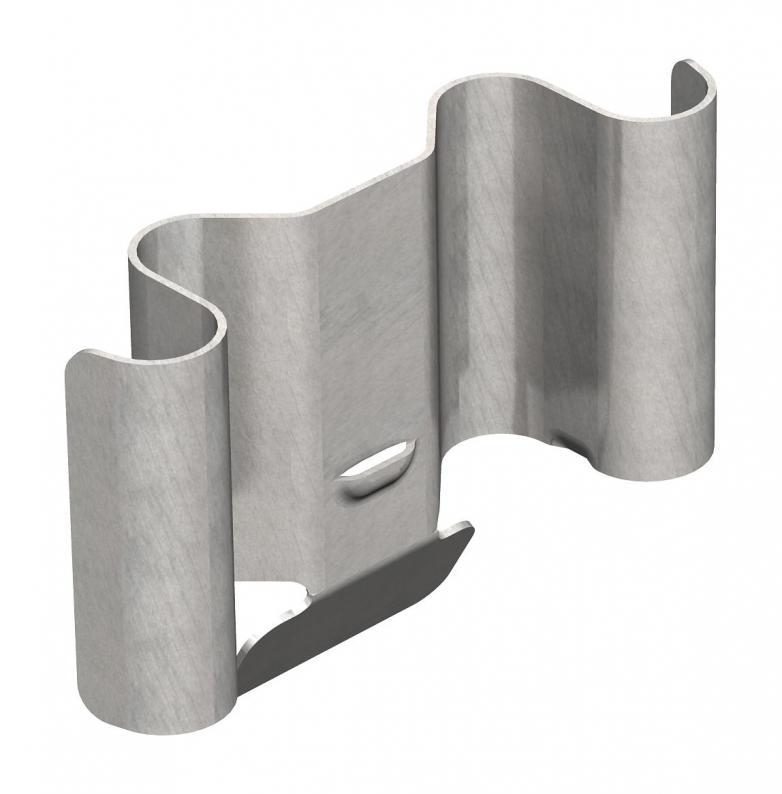

Spring element as accessory part (spare) for the RKS-Magic® cable tray of side height 60 mm.
Technical data

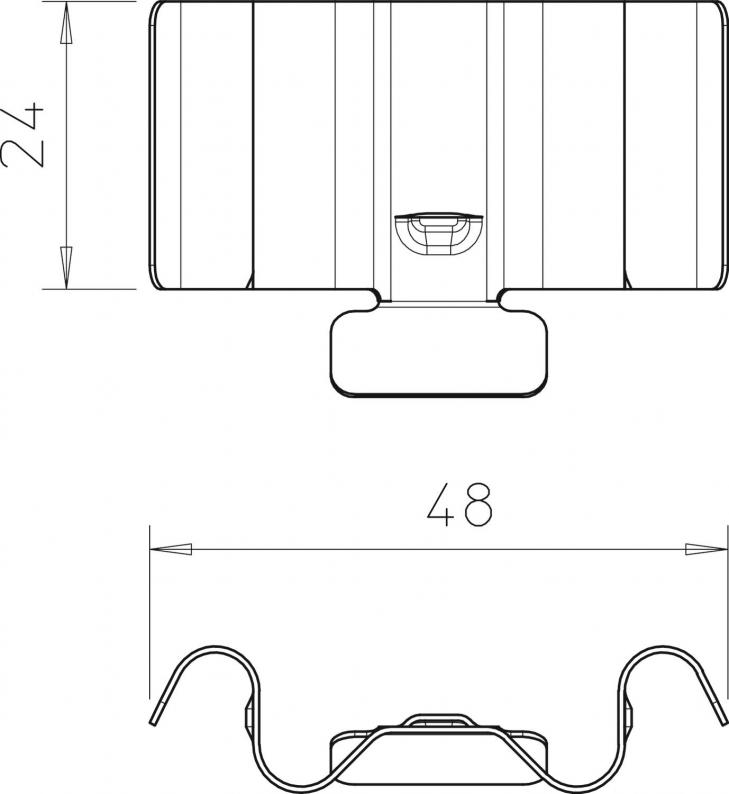

Dimensions
| Width | 48 mm |
|---|---|
| Height | 60 mm |
Technical data
| Rustproof steel, pickled | no |
|---|---|
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | no |
| Dimension | 48x24 |
| Version for | Straight connector |
| Connection type | Snap-in |
| Dimension | 60mm |
| Material | Stainless steel 1.4310 |
| Colour | stainless steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0393 kg CO2e / 1 Piece |
