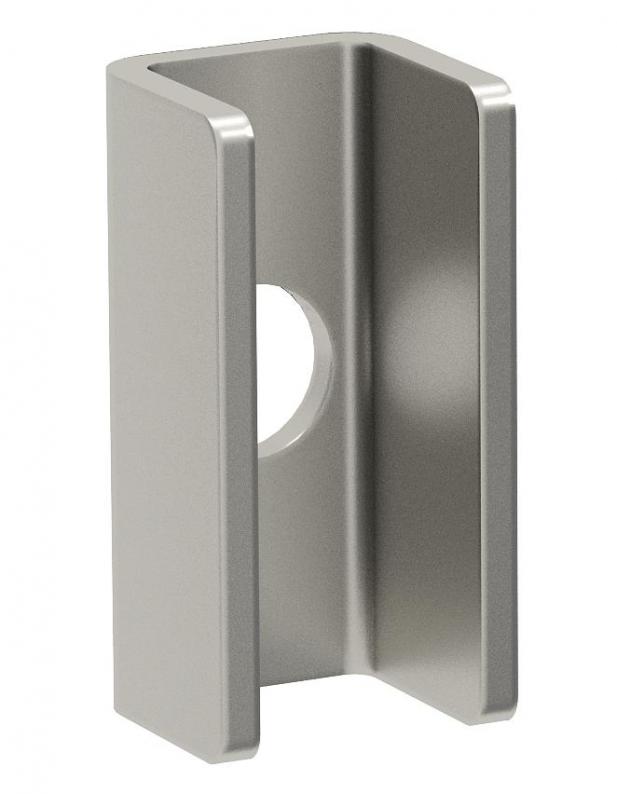

Spacer A2
Type DS 4 A2 | Item no. 6416594 | EAN 4012195617884
Item no. / Type
6416594 / DS 4 A2
Colour
stainless steel
Smallest selling unit: 10 piece
10piece
Description
Spacer for use in profiles, type TP.
For static reasons, the spacer is always used to prevent the profile from deforming when the fastening bolts are tightened.
Technical data
Dimensions
| Length | 40 mm |
|---|---|
| Width | 20 mm |
| Height | 18 mm |
Technical data
| With screw accessories | no |
|---|---|
| Dimension | 40 x 20 x 18 |
| Dimension | 40x20x18 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,2117 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
