Spacer

Type isCon DH | Item no. 5408043 | EAN 4012195674863

Item no. / Type

5408043 / isCon DH

Smallest selling unit: 2 piece

Description

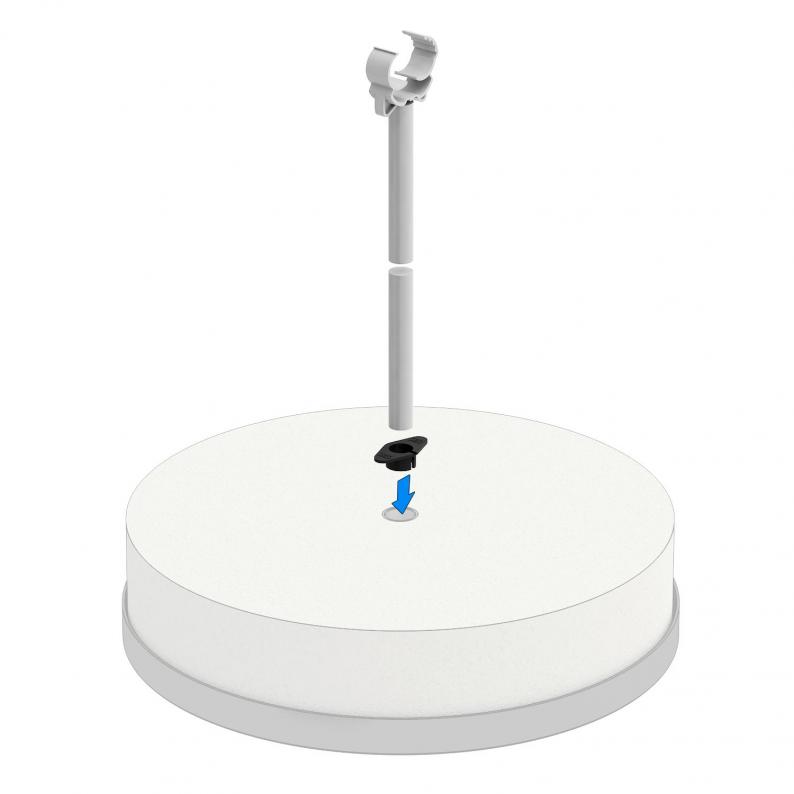

For stand-off installation of the isCon® conductor in the area of the connection, incl. reducing sleeve for mounting on FangFix concrete block 10 Kg.

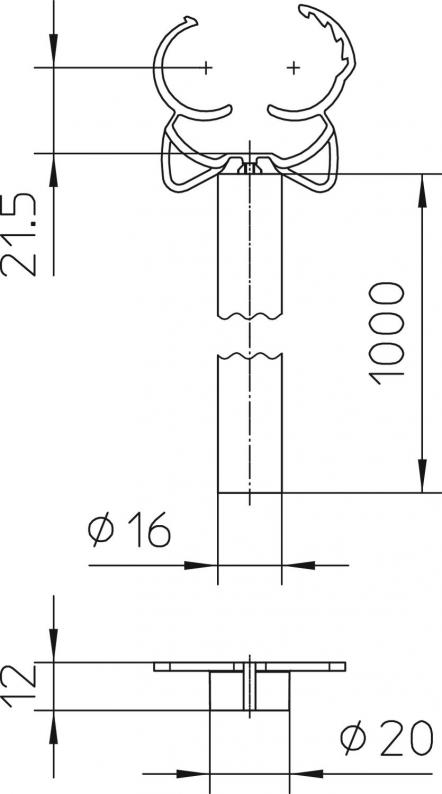

Length	1000 mm

Clamping range D, max.	26 mm
Clamping range D, min.	23 mm
Dimension	1000mm
Material	Fibre-glass-reinforced plastic
Colour	Light grey
CO2 Footprint (GWP) Cradle-to-Gate	4,0773 kg CO2e / 1 Piece
