Soft trunking cover, design trunking
Type OT GAD Soft EL | Item no. 6115835 | EAN 4012195914174
Item no. / Type
6115835 / OT GAD Soft EL
Colour
aluminium
Smallest selling unit: 1 piece
1piece
Description
Trunking cover to create a design device installation trunking of the GAD series. "Soft" design version for complete coverage of the system opening and the switching and plug-in devices. The GAD OTA cover adapters are essential and must be planned on the trunking section with a max. spacing of 50 cm. A GAD OTD spacer must be placed between the trunking covers.
Standard version in anodised aluminium, different decoration on request.
Standard version in anodised aluminium, different decoration on request.
Technical data

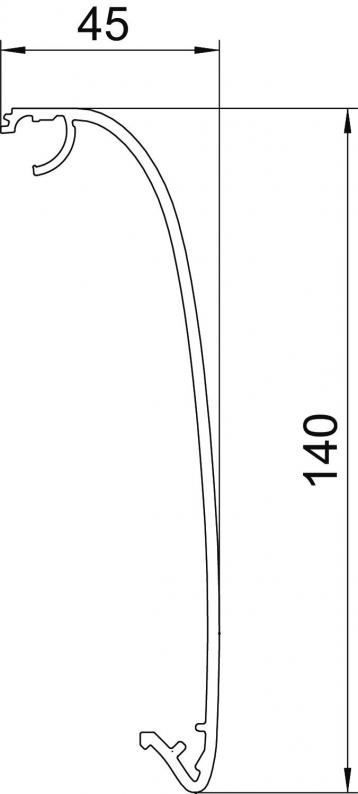

Dimensions
| Length | 999 mm |
|---|---|
| Width | 140 mm |
| Height | 45 mm |
Technical data
| Halogen-free | yes |
|---|---|
| Protective film | yes |
| Cover mounting type | Cross-over |
| Version for | Smooth |
| Dimension | 45x140x999 |
| Surface | Anodised |
| Material | Aluminium |
| Colour | aluminium |
| Antibacterial treatment | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 16,6574 kg CO2e / 1 Piece |
