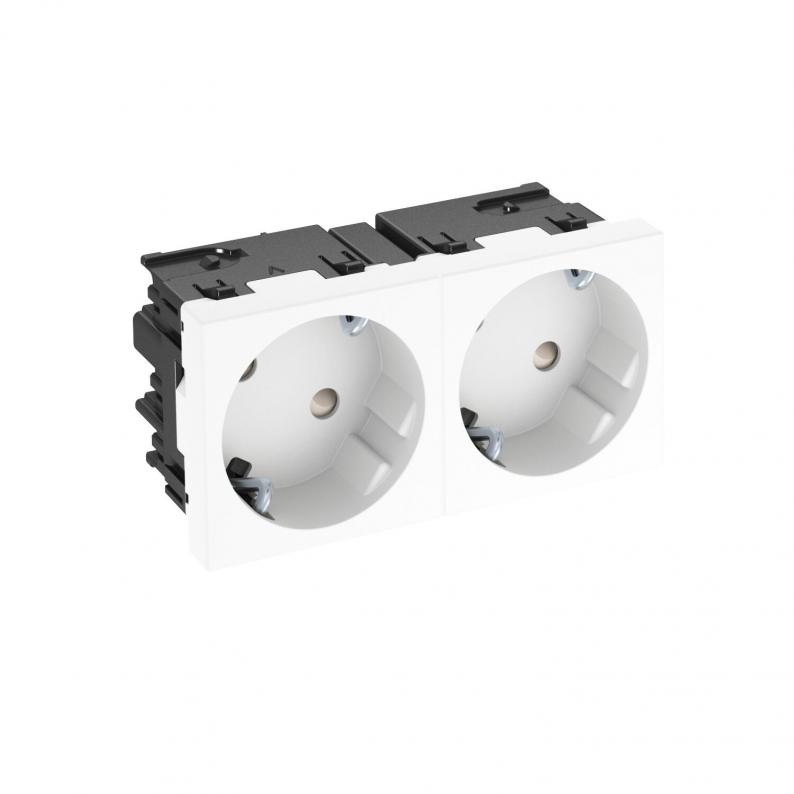

Socket 33°, Connect 45, protective contact, double

Socket 33°, Connect 45, protective contact, double

Type STD-D3SC RW2
|
Item no. 6120483
|
EAN 4012197256494
Show all variants
Item no. / Type
Colour
Number of units
2
Version for
double 33°

Smallest selling unit: 1 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

Protective contact socket double 33°, with increased touch protection, with screwless terminals, 2-pin, 16 A, 250 V~, with connection terminals to IEC 60884-1.


For installation in Rapid 45 ducts, device installation ducts, installation columns, underfloor systems and Deskboxes.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Installation electrotechnical expertise
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

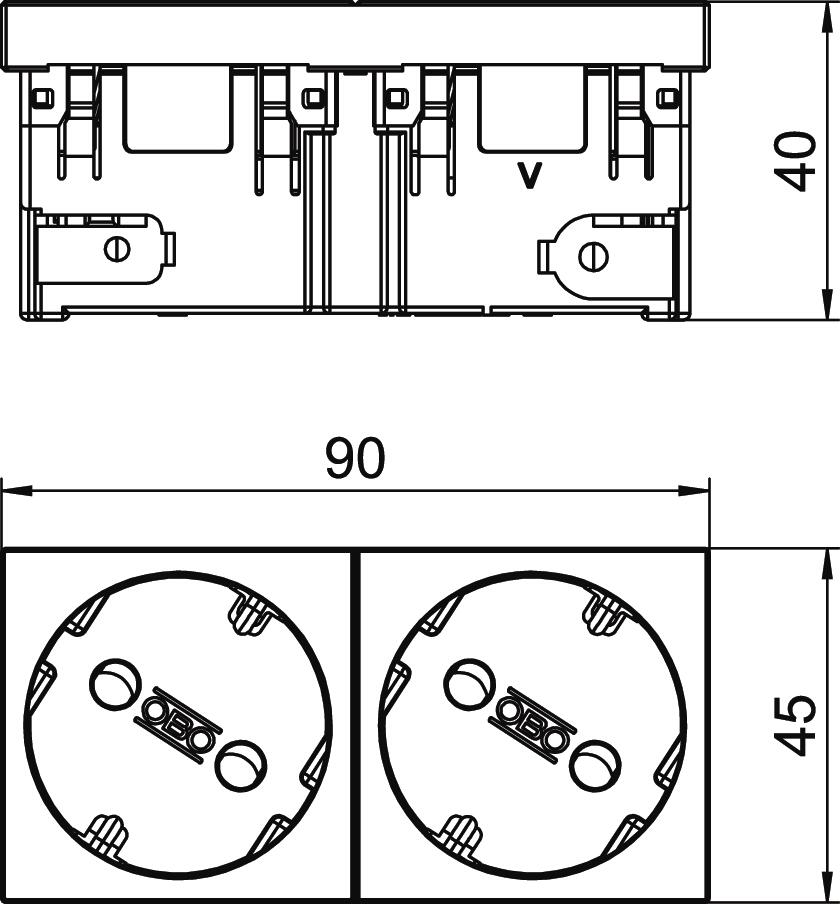

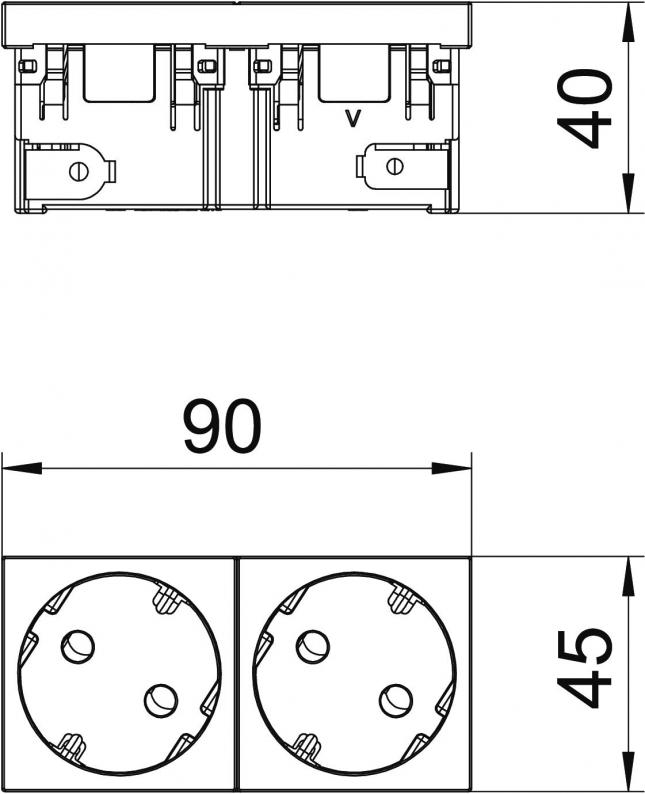

Dimensions

Width90 mm
Height45 mm

Materials and Packaging

Packaging made completely from recycled cardboard.yes
Packaging without plasticyes

Technical data

Number of poles2
Hinged coverno
increased touch protectionyes
Warning lightno
Halogen-freeyes
Labelling panelno
Number of units2
Protection ratingOther
Nominal current16 A
Nominal voltage250 V
Closableno
Ejection mechanismno
Surge protectionno
Error current protectionno
With fine-wire fuseno
With on/off switchno
Rotated central insertyes
Depth40 mm
CoverCentral plate
Printed label/codingWithout printing
Special power supplyWithout special power supply
Surface versionMatt
Transparentno
Socket angle33°
Socket versionProtective contact
Number of switchable sockets0
With functional lightingno
With orientation lightingno
For more difficult conditions (according to VDE)no
Version fordouble 33°
Number of modules (for modular construction)0
Insulated installationno
Mounting typeDevice installation duct
Fastening typeLock
Connection typeScrewless terminal
Operating temperature, min.-5 °C
Operating temperature, max.40 °C
Codingno
Dimension250V, 10/16A
MaterialPolycarbonate
ColourPure white; RAL 9010

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate0,2968 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

Colour
STD-D3SC RW2
Item no.
6120483
Number of units
2
Version for
double 33°
Colour
Pure white; RAL 9010
STD-D3SC ROR2
Item no.
6120485
Number of units
2
Version for
double 33°
Colour
Pure orange; RAL 2004
STD-D3SC MZGN2
Item no.
6120487
Number of units
2
Version for
double 33°
Colour
Mint green; RAL 6029
STD-D3SC SRO2
Item no.
6120489
Number of units
2
Version for
double 33°
Colour
Signal red; RAL 3001
STD-D3SC SWGR2
Item no.
6120491
Number of units
2
Version for
double 33°
Colour
Black-grey; RAL 7021
STD-D3SC AL2
Item no.
6120493
Number of units
2
Version for
double 33°
Colour
Aluminium painted
