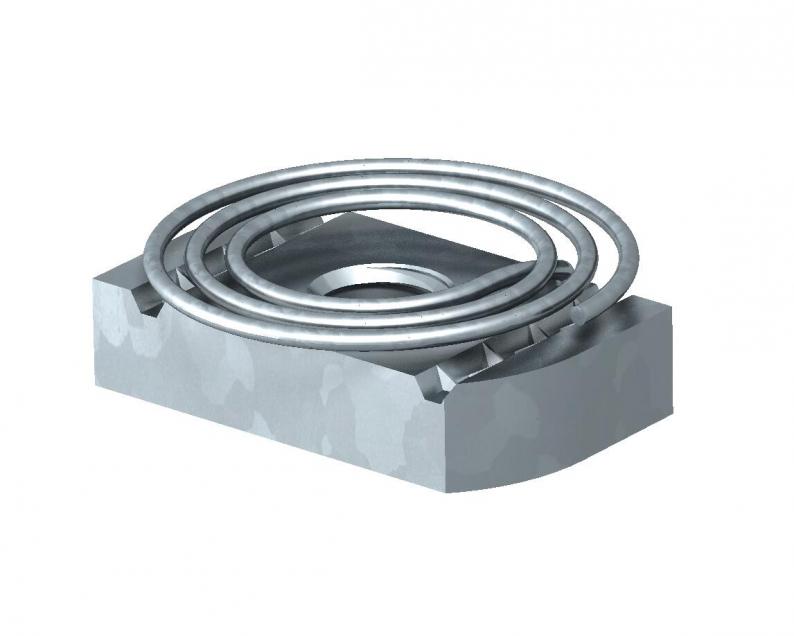

Slide nut with spring ZL
Type MS41SNF M8 F | Item no. 1147310 | EAN 4012196489947
Item no. / Type
Length
Width
Height
Thread
Smallest selling unit: 50 piece
50piece
Description
Slide nut with spring for use with MS4121 und MS4141 profile rails
Technical data

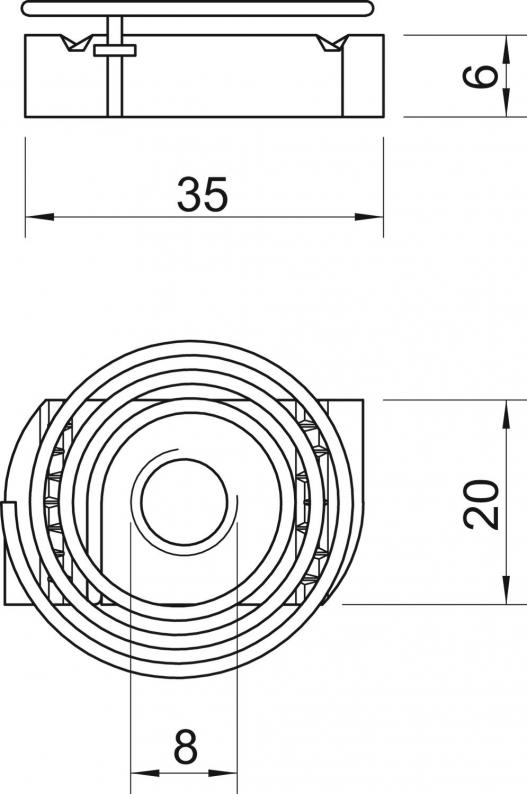

Dimensions
| Length | 35 mm |
|---|---|
| Width | 20 mm |
| Height | 6 mm |
Technical data
| Thread metric | 8 |
|---|---|
| Thread | M8 |
| With spring | yes |
| Dimension | M8 |
| Surface | Hot galvanized |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0889 kg CO₂e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Product images (2)
3D data downloads (2)
Tender specifications (2)
Variants
Type
Length
Width
Height
Thread
Item no.
MS41SNF M6 F
35
20
6
M6
1147306
MS41SNF M8 F
35
20
6
M8
1147310
MS41SNF M10 F
35
20
8
M10
1147314
MS41SNF M12 F
35
20
9,5
M12
1147318
Height
Thread
MS41SNF M6 F
Item no.
1147306
Length
35
Width
20
Height
6
Thread
M6
MS41SNF M8 F
Item no.
1147310
Length
35
Width
20
Height
6
Thread
M8
MS41SNF M10 F
Item no.
1147314
Length
35
Width
20
Height
8
Thread
M10
MS41SNF M12 F
Item no.
1147318
Length
35
Width
20
Height
9,5
Thread
M12
