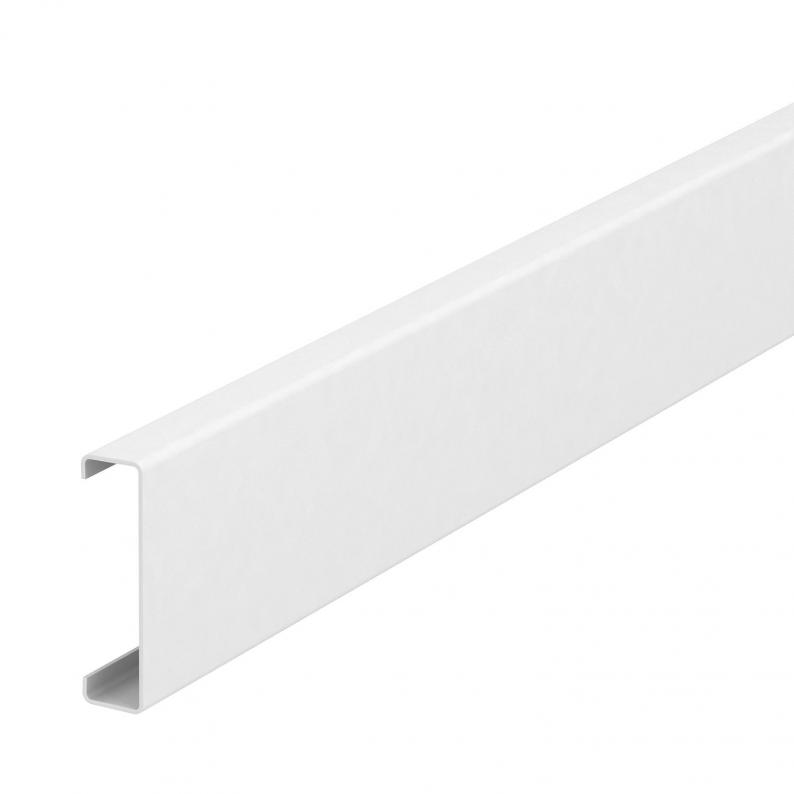

Sheet steel trunking cover, 50 mm system opening

Sheet steel trunking cover, 50 mm system opening

Type GS-OT50RW | Item no. 6279880 | EAN 4012195680925

Show all variants
Item no. / Type
6279880 / GS-OT50RW
Colour
Pure white; RAL 9010

Smallest selling unit: 2 m

DescriptionTechnical dataDownloadsVariants

Description

Sheet steel cover for closing the GS device installation trunking.
Sheet steel version.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

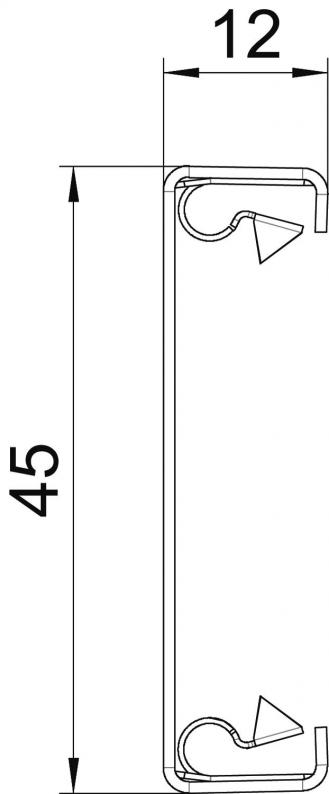

Dimensions

Length2000 mm
Width45 mm
Height12 mm

Technical data

Halogen-freeyes
Protective filmyes
Protection ratingIP30
Cover mounting typeInternal
Protection rating IK codeIK10
Version forSmooth
Permitted temperature range, max.60 °C
Permitted temperature range, min.-25 °C
Dimension12x45x2000
MaterialSteel
ColourPure white; RAL 9010
Antibacterial treatmentno
CO2 Footprint (GWP) Cradle-to-Gate1,0607 kg CO2e / 1 Meter

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Certificates (2)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

GS-OT50RW
Item no.
6279880
Length
2000
Colour
Pure white; RAL 9010
