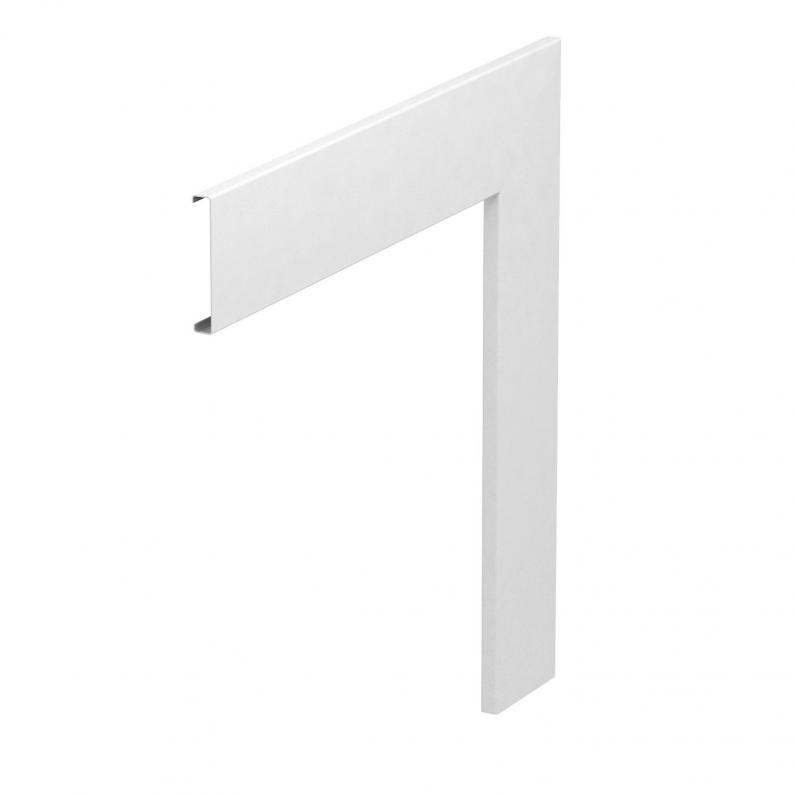

Sheet steel flat angle cover
Type GS-OTFRW | Item no. 6279860 | EAN 4012195695936
Item no. / Type
6279860 / GS-OTFRW
Smallest selling unit: 1 piece
1piece
Description
Cover for closing the flat angle of the Rapid 80 GS device installation trunking.
Technical data

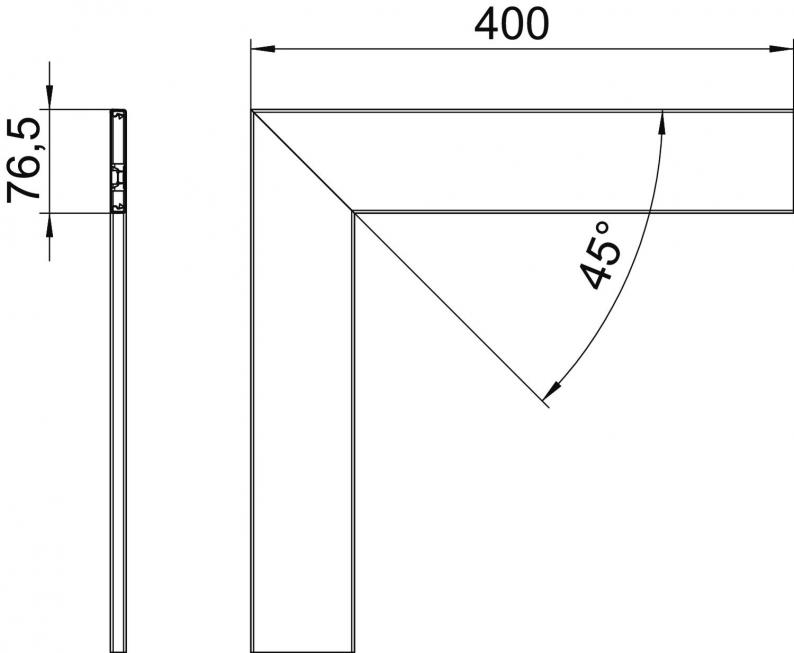

Dimensions
| Length | 400 mm |
|---|---|
| Width | 76,5 mm |
| Height | 12 mm |
Technical data
| Halogen-free | yes |
|---|---|
| Protective film | yes |
| Protection rating | IP30 |
| Cover mounting type | Internal |
| Protection rating IK code | IK10 |
| Version for | Smooth |
| Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | -25 °C |
| Dimension | 12x76,5x400 |
| Material | Steel |
| Colour | Pure white; RAL 9010 |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,7173 kg CO2e / 1 Piece |
