Sheet steel external corner cover
Type GS-OTARW
|Item no. 6279870
|EAN 4012195696056
Item no. / Type
6279870 / GS-OTARW
Colour
Pure white; RAL 9010
Smallest selling unit: 1 piece
1piece
piece
Description

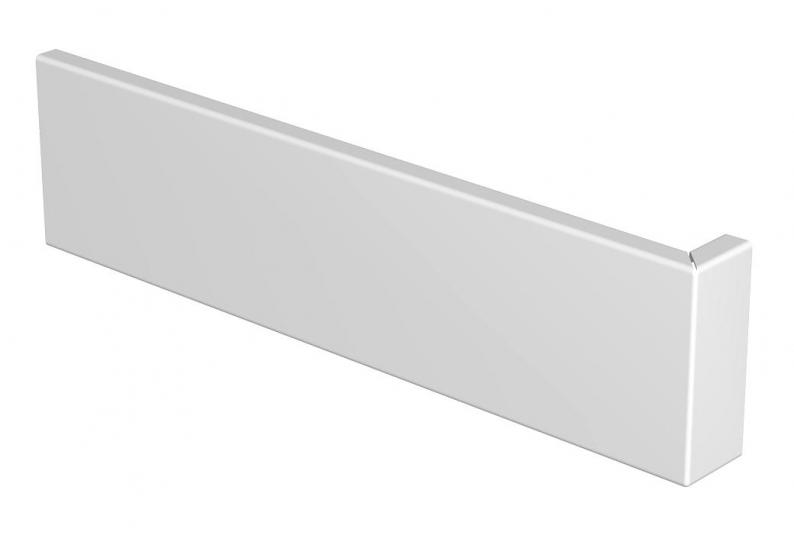

Cover to close the external corner of the Rapid 80 GS device installation trunking.
Technical data

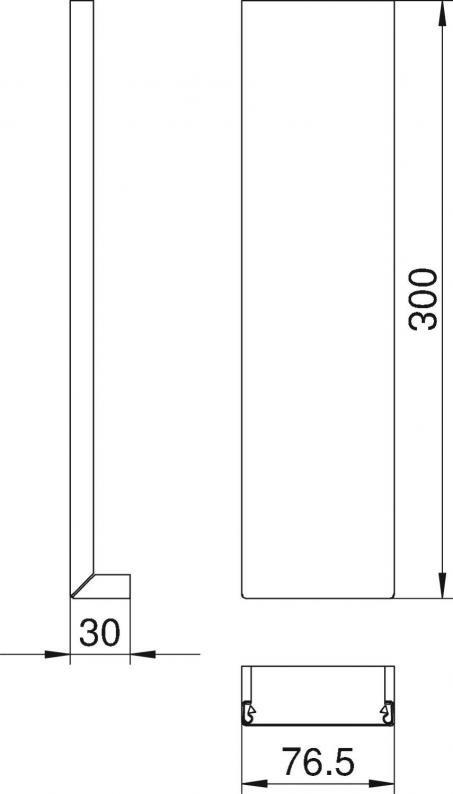

Dimensions
| Length | 300 mm |
|---|---|
| Width | 76,5 mm |
| Height | 12 mm |
Technical data
| Halogen-free | yes |
|---|---|
| Protective film | yes |
| Protection rating | IP30 |
| Cover mounting type | Internal |
| Protection rating IK code | IK10 |
| Permitted temperature range, min. | -25 °C |
| Permitted temperature range, max. | 60 °C |
| Dimension | 12x76,5x300 |
| Material | Steel |
| Colour | Pure white; RAL 9010 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,8952 kg CO2e / 1 Piece |
