Service pole, type ISSRM45F
Type ISSRM45FRW | Item no. 6290095 | EAN 4012195459095
Item no. / Type
Length
Colour
Fastening type
Stand
Material
Aluminium
Smallest selling unit: 1 piece
1piece
Description

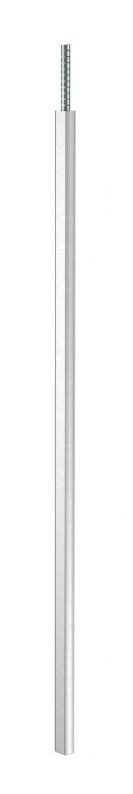

ISS aluminium service pole with a flexible hose to the ceiling and a 45 mm system opening.
Set consisting of:
1 one-compartment pole with flexible hose to ceiling
Total length: 2,300 mm
1 flexible hose, length: 1,500 mm
1 aluminium cover
Length: 2,300 mm
The design of this ISS service pole is based on an extremely slender, round aluminium profile, which has a smooth cover of the Rapid 45 device installation trunking series as its front side. The 45 mm system opening is suitable for direct acceptance of Modul 45® switching and connection devices.
The floor plate as a stand, type SFISSF, and the hose connection to the ceiling, type SAISSF, should be ordered separately (see articles below).
Set consisting of:
1 one-compartment pole with flexible hose to ceiling
Total length: 2,300 mm
1 flexible hose, length: 1,500 mm
1 aluminium cover
Length: 2,300 mm
The design of this ISS service pole is based on an extremely slender, round aluminium profile, which has a smooth cover of the Rapid 45 device installation trunking series as its front side. The 45 mm system opening is suitable for direct acceptance of Modul 45® switching and connection devices.
The floor plate as a stand, type SFISSF, and the hose connection to the ceiling, type SAISSF, should be ordered separately (see articles below).
Technical data

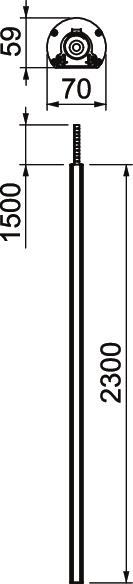

Dimensions
| Length | 2300 mm |
|---|---|
| Width | 70 mm |
| Height | 59 mm |
| Pole height, max. | 3800 mm |
| Pole height, min. | 2300 mm |
Technical data
| Number of compartments | 1 St. |
|---|---|
| Halogen-free | yes |
| Pole shape | Round |
| Adjustable | yes |
| Height compensation, max. | 1500 mm |
| Height compensation, min. | 0 mm |
| Number of usable covers | 1 |
| Changes according to location | yes |
| Ceiling mounting | yes |
| Floor mounting | yes |
| Cable entry | Top |
| Pre-wired | no |
| Continuous profile | yes |
| Version for | Single-sided |
| Fastening type | Stand |
| Cover width | 45 mm |
| Dimension | 2300x70x59 |
| Material | Aluminium |
| Colour | Pure white; RAL 9010 |
| CO2 Footprint (GWP) Cradle-to-Gate | 58,0164 kg CO2e / 1 Piece |
