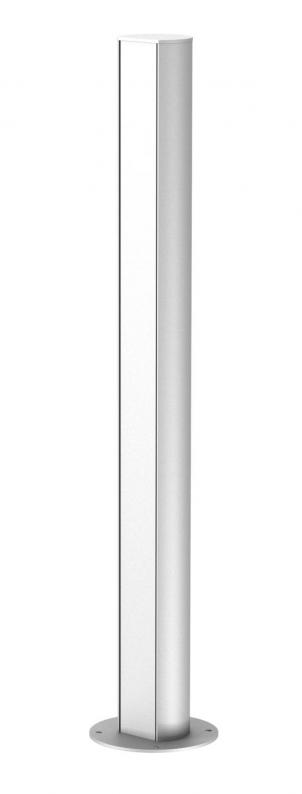

Service pole, type ISSRHSM45

ISS aluminium service pole with a 45 mm system opening.

Set consisting of:
1 one-compartment pole with stand

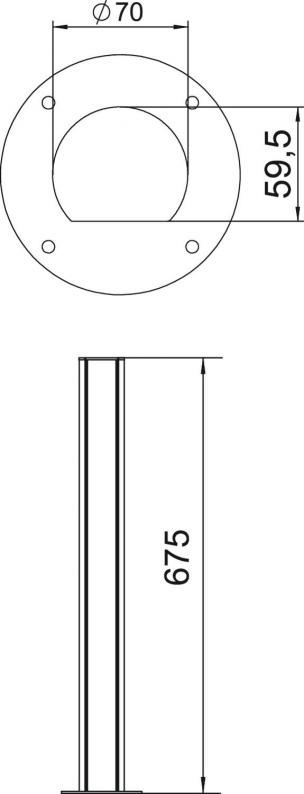

Total length: 675 mm
1 aluminium cover
Length: 675 mm
The design of this ISS service pole is based on an extremely slender, round aluminium profile, which has a smooth cover of the Rapid 45 device installation trunking series on the front side. The 45 mm system opening is suitable for direct acceptance of Modul 45® switching and connection devices. The installation compartment is theoretically sufficient for 14 Modul 45® devices. If Modul 45connect® is used or in the case of cabling requiring a lot of space, the number of the max. installable devices is reduced. There is the option of installing a partition, type 2371/40 (6023096).
