Service pole, type ISSOG70140
Type ISSOG70140EL | Item no. 6289088 | EAN 4012196258697
Item no. / Type
Length
Colour
Fastening type
Tension
Surface
Anodised
Material
Aluminium
Smallest selling unit: 1 piece
1piece
Description

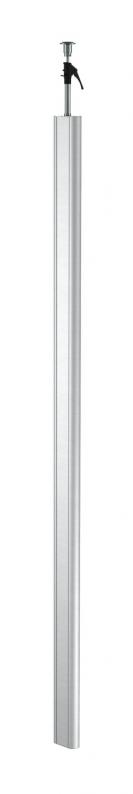

ISS service pole, oval shape, aluminium, with a 76.5 mm system opening.
Set consists of:
1 single-compartment column with clamping attachment
Total length: 3,315‒3,480 mm
1 single-compartment pole with clamping device
1 trunking installation profile
Length 3,000 mm
1 aluminium cover
Length: 3,000 mm
The area for device installation is suitable for accepting front-locking accessory mounting boxes of the series 71GD...
The following accessories can be used, depending on the mounting situation.
Set consists of:
1 single-compartment column with clamping attachment
Total length: 3,315‒3,480 mm
1 single-compartment pole with clamping device
1 trunking installation profile
Length 3,000 mm
1 aluminium cover
Length: 3,000 mm
The area for device installation is suitable for accepting front-locking accessory mounting boxes of the series 71GD...
The following accessories can be used, depending on the mounting situation.
Technical data

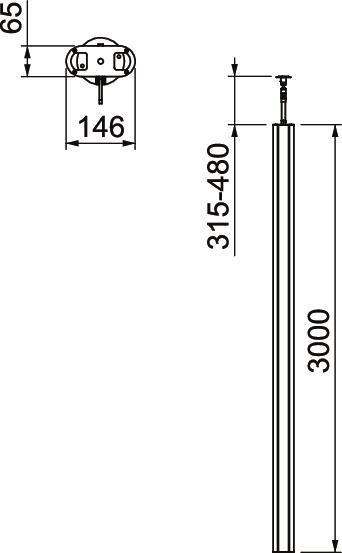

Dimensions
| Length | 3000 mm |
|---|---|
| Width | 146 mm |
| Height | 65 mm |
| Pole height, max. | 3480 mm |
| Pole height, min. | 3315 mm |
Technical data
| Number of compartments | 1 St. |
|---|---|
| Halogen-free | yes |
| Pole shape | Oval |
| Adjustable | yes |
| Height compensation, max. | 480 mm |
| Height compensation, min. | 315 mm |
| Number of usable covers | 1 |
| Changes according to location | no |
| Ceiling mounting | yes |
| Floor mounting | yes |
| Cable entry | Top/bottom |
| Pre-wired | no |
| Continuous profile | yes |
| Version for | Single-sided |
| Fastening type | Tension |
| Cover width | 76,5 mm |
| Dimension | 3000x146x65 |
| Surface | Anodised |
| Material | Aluminium |
| Colour | aluminium |
| CO2 Footprint (GWP) Cradle-to-Gate | 93,3884 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Accessories
System accessories
Article
Type
Item no.
Amount
Variants
Type
Length
Fastening type
Surface
Material
Colour
Item no.
ISSOG70140EL
3000
Tension
Anodised
Aluminium
aluminium
6289088
ISSOG70140RW
3000
Tension
Aluminium
Pure white; RAL 9010
6289090
Colour
ISSOG70140EL
Item no.
6289088
Length
3000
Fastening type
Tension
Surface
Anodised
Material
Aluminium
Colour
aluminium
ISSOG70140RW
Item no.
6289090
Length
3000
Fastening type
Tension
Material
Aluminium
Colour
Pure white; RAL 9010
